Digi-Sense CFM/CMM Vane Thermoanemometer with NIST Traceable Calibration - WD-20250-14
Item #:
DS-WD-20250-14
Brand:
Digi-Sense
Share this product:
WD-20250-14 CFM/CMM Vane Thermoanemometer with NIST Traceable Calibration by Digi-Sense

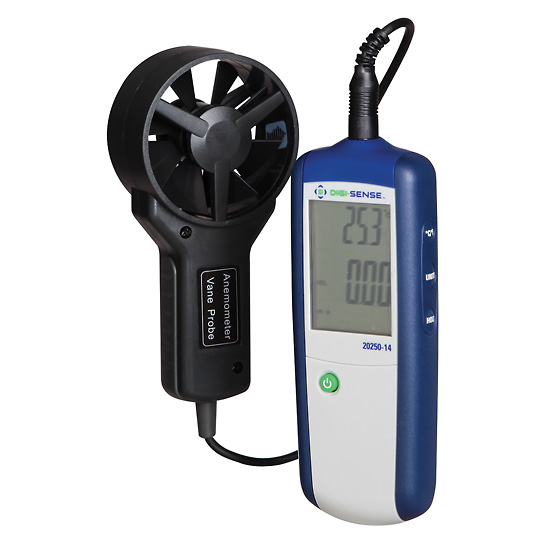

The Digi-Sense CFM/CMM Vane Thermoanemometer (Model 20250-14) measures air velocity, airflow (volume), and temperature. The large, easy-to-read backlit LCD includes primary and secondary displays plus numerous status indicators. The meter features 2 memory locations (1 for CFM and 1 for CMM) to store and recall commonly used area sizes. The instrument is fully tested and calibrated to NIST-traceable standards. Careful use of this meter will provide years of reliable service.
Features
- Reliable measurements, guaranteed! Precalibrated to NIST-traceable standards.
- User-selectable units of measure eliminate the need for conversion
- Measure air velocities up to 5900 ft/min (30 m/s) to cover a broad range of applications
- Measure air flow up to 999,900 CFM, 999,900 CMM
- Two memory locations, one CFM and one CMM, store commonly used vent area sizes to save you time
- Large dual-function 4-digit LCD with backlight for easy reading
- Auto power-off extends battery life
- Fits comfortably in your hand
Includes
Vane probe sensor with 3.9-ft (1.2-m) cable, three AAA batteries, and NIST-traceable calibration report with data supplied by InnoCal.
| Units | Range |
Resolution |
Accuracy |
| Air velocity | |||
| m/s (meters per sec) | 0.40 to 30.00 m/s |
0.01 m/s |
±(3% + 0.20 m/s) |
| ft/min (feet per min) | 80 to 5900 ft/min |
1 ft/min |
±(3% + 40 ft/m) |
| km/h (kilometers per hr) | 1.4 to 108.0 km/h |
0.1 km/h |
±(3% + 0.8 km/h) |
| MPH (miles per hr) | 0.9 to 67.0 MPH |
0.1 MPH |
±(3% + 0.4 MPH) |
| Knots (nautical MPH) | 0.8 to 58.0 knots |
0.1 knots |
±(3% + 0.4 knots) |
| Airflow | |||
| CFM (ft3/min) | 0 to 999,900 ft3/min |
0.001 to 100 |
0.000 to 999.9 ft2 |
| CMM (m3/min) | 0 to 999,900 m 3/min |
0.001 to 100 |
0 .000 to 999.9 m2 |
| Air Temperature | 32 to 122°F (0 to 50°C) |
0.1°F/C |
4.0°F (2.0°C) |
| Circuit | Custom LSI microprocessor circuit |
| Display | Dual-function 16 mm 4-digit LCD |
| Sampling rate | Approximately 1 reading per second |
| Sensors | Air velocity/flow sensor: Conventional angled vane arms with lowfriction ball bearing Temperature sensor: NTC-type precision thermistor |
| Automatic power-off | Unit shuts off automatically after 20 minutes to preserve battery life |
| Operating temperature | 32 to 122°F (0 to 50°C) |
| Operating humidity | <80% RH, noncondensing |
| Storage temperature | 14 to 140°F (-10 to 60°C) |
| Storage humidity | <80% RH, noncondensing |
| Weight | 7 oz (200 g) |
| Dimensions | Meter: 6 3⁄4" x 2 1
⁄2" x 1" (16 x 6.2 x 2.1 cm) Vane sensor head: 2 3 ⁄4" (7 cm) diameter Cable length: 3.9 ft (1.2 m) |
| Power | Three AAA batteries |
| Battery life | Typically 40 hrs. Battery life will be reduced significantly if the backlight is used continuously. |
| Battery current | pproximately 8.3 mA DC |
