Digi-Sense 12:1 IR Thermometer with Temperature Alarm and NIST Traceable Calibration - WD-20250-05
Item #:
DS-WD-20250-05
Brand:
Digi-Sense
Share this product:

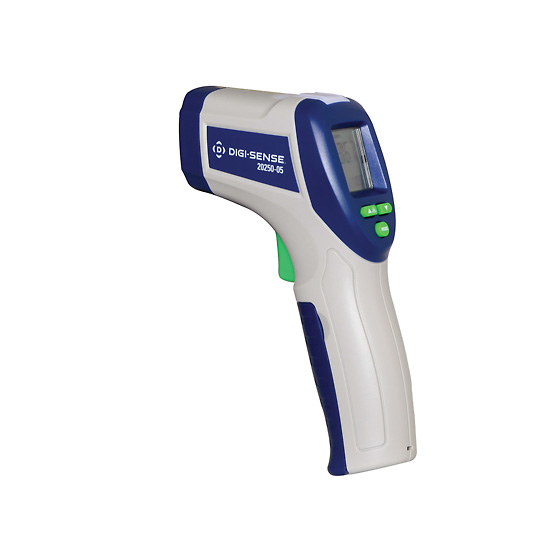

WD-20250-05 12:1 IR Thermometer with Temperature Alarm and NIST Traceable Calibration by Digi-Sense
Ergonomic pistol-grip infrared (IR) thermometers provide the precision you need for quick and easy temperature measurements. Noncontact meters safely measure the surface temperature of objects without physically touching the object. Simply aim, pull the trigger, and read the display—reliable measurements couldn't be easier!
Features
- Reliable measurements, guaranteed! Precalibrated to NIST-traceable standards.
- Laser sighting helps target the measuring area
- Large backlight LCD with backlight for easy viewing
- Adjustable emissivity (except model 20250-04)
- Min/Max readings and data Hold function
- User-selectable temperature readout in °C or °F
- Automatic selection range and display resolution
- Trigger lock for continuous scanning of temperatures
- Auto power-off mode extends battery life
Applications
- Agricultural
- Educational
- Food processing
- HVAC
- Industrial
- Laboratory
- R&D
- Preventive maintenance
| Distance-to-sight (D/S) ratio | 12:1 |
| Temperature range (IR) | –31 to 1000°F (–35 to 537°C) |
| Resolution | 0.1°F/C below 1000°, 1°F/C above 1000° |
| Accuracy (IR) | ±4.5°F (2.5°C) from –58 to 68°F (–35 to 20°C); ±1.0% ±1 of rdg from 68 to 572°F (20 to 300°C); ±1.5% ±1 of rdg from 572 to 1000°F (300 to 537°C) |
| Response time | <300 ms |
| Emissivity | 0.10 to 1.0 adjustable |
| Laser (Class II) | Single |
| Min/Max reading | Yes |
| Data Hold | Yes |
| Avg reading | No |
| Temp differential | No |
| High/low alarms | Yes |
| USB interface | No |
| Data logging | No |
| Type K input | No |
| Dimensions | 7" x 3 1⁄2" x 1 1 ⁄2" (17.7 x 8.9 x 3.8 cm) |
| Power | One 9 V battery |
| Accessories included | Battery and NIST-traceable certificate with data and uncertainties |
