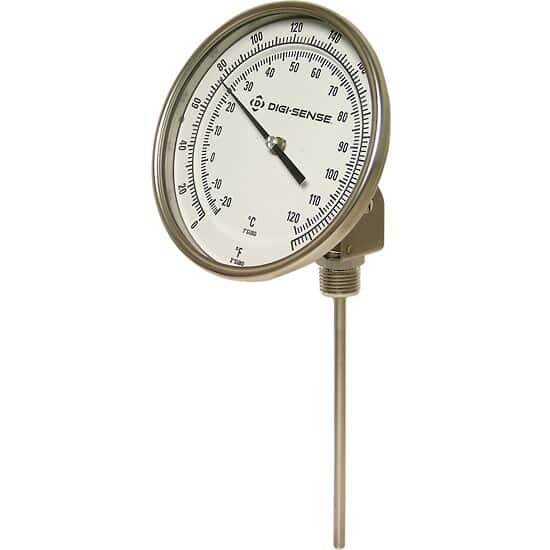

Digi-Sense Adjustable Angle Bimetal Thermometer, 3 in. Dial, 12 in. L/0-250F/-20-120C - 90494-01

90494-01 Adjustable Angle Bimetal Thermometer, 3" Dial, 12" L/0-250F/-20-120C by Digi-Sense

Accuracy is ±1% full-scale when stem is immersed 2" in liquids or 4" in gases (immerse models with a 2.5" stem length 2" in gases). Measured stem length from the top of the threads to the bottom tip of the stem. Stem dia is 0.25"; threaded connection is 1/2" NPT(M). All thermometers meet or exceed ASME B40.3 standards. Maximum environmental temperature for glass lens thermometers is 500°F (148°C).

• Greater temperature range
• Anti-parallax dial for accurate readings
• Hermetically sealed per ASME B40.3 standard to prevent fogging and protect against tough environments
• Rugged 304 stainless steel construction with a clear glass lens
• Recalibrate using the external reset screw
