Digi-Sense Digital Multimeter with Thermal Imager and Bluetooth Connectivity - 20250-66
Item #:
DS-20250-66
Brand:
Digi-Sense
Share this product:

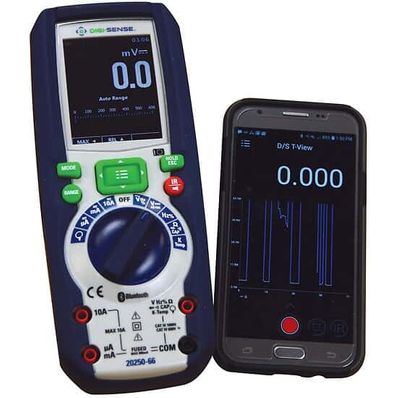

20250-66 Digital Multimeter with Thermal Imager and Bluetooth® Connectivity by Digi-Sense
Using our free Digi-Sense D/S T-View app, this True RMS digital multimeter with Bluetooth® technology allows you to transmit data directly to your Android or iOS device. Now you can view data at a safe distance from dangerous equipment or hazardous locations and even use your smart device as a real-time secondary display for checking measurements, eliminating the need to write down readings on paper. The results are automatically stored in the app with a date-and-time stamp and can be saved as a CSV file and emailed for future reference, manipulation, or analysis to help determine trends and conditions over a long period of time. Use the app to attach photos and notes to the records creating a clear reference point for your work - ideal for record keeping at large sites. Note, only electrical data can be transmitted to mobile device.
The 80 x 80 (6400 pixels) thermal imager with Max, Min and Center crosshair targeting helps you pinpoint hot spots quickly and more efficiently without contact. Thermal imager has a temperature range of -4 to 500°F (-20 to 260°C) with ±5.4°F (±3°C) or ±3% reading accuracy.
The compact, handheld digital multimeter provides fast A/D converting sampling time (10 times/second), high accuracy with datalogging and trend capture features. It measures AC, AC+DC TRMS voltage, DC voltage, AC, AC+DC TRMS current, DC current, flexible coil current, resistance, frequency, and capacitance. Special functions include peak capture, auto ranging, data Hold, Max/Min/average readings with time stamp, diode test, continuity check, relative mode, duty cycle, low-battery indication, and auto power-off. Meter accepts test leads (included), type K temperature probe (included), and flexible coil.
Key Features
- Get the most out of your data with our user-friendly mobile app
- Unlimited data storage based on smart device capacity
- Reliable measurements, guaranteed! Precalibrated to NIST-traceable standards
- Built-in thermal imager quickly identifies hot spots
- Rugged double-molded housing provides increased durability
- Select from four color palettes: iron, rainbow, grey, or grey inverted
- View measurements clearly on 6000-count TFT color LCD
- Tilt stand offers easy hands-free viewing
- IP65 waterproof rated
- CAT IV-600 V, CAT III-1000 V safety rating
Includes
Test leads, type K temperature probe, carrying case, AC power adapter/charger, rechargeable Li-ion battery, and NIST-traceable calibration.
DC Min (Volts) | 0.6 |
DC Max (Volts) | 1000 |
DC Voltage Accuracy | ±0.9% rdg ±5 digits |
DC Min (amps) | 0.0006 |
DC Max (amps) | 10 |
DC Current Accuracy | ±0.9% rdg ±5 digits |
AC Min (Volts) | 6 |
AC Max (Volts) | 1000 |
Ac Voltage Accuracy | ±0.8% rdg ±5 digits |
AC Min (amps) | 0.0006 |
AC Max (amps) | 10 |
AC Current Accuracy | ±1.2% rdg ±5 digits |
Resistance Max (Ω) | 600 |
Resistance Min (MΩ) | 60 |
Capacitance Min (nF) | 6000000 |
Capacitance Max (mF) | 60 |
Capacitance Accuracy | ±2.5% rdg ±20 digits |
Frequency Max (Hz) | 60 |
Frequency Min (MHz) | 10 |
Frequency Accuracy | ±0.9% ±5 digits |
Resistivity Accuracy | ±0.5% rdg ±5 digits |
Continuity | Yes |
Diode Tester | Yes |
Duty Cycle | Yes |
True Rms | Yes |
Min Temperature (° F) | -40 |
Max Temperature (° F) | 1800 |
Min Temperature (° C) | -40 |
Max Temperature (° C) | 600 |
Temperature Accuracy | ±1.5% rdg ±5.4°F (±1.5% rdg ±3°C) |
Count | 6000 |
Display | TFT color LCD |
Memory | Unlimited data storage based on smart device capacity |
Measurement | Min/Max/Avg |
Safety Rating | CAT IV-600 V, CAT III-1000 V |
Power | Rechargeable Li-ion battery and AC power adapter (included) |
Width (in) | 3 |
Length (in) | 7 |
Height (in) | 2 |
Width (cm) | 8.5 |
Length (cm) | 17.5 |
Height (cm) | 5.5 |
Description | Digital Multimeter with Infrared Thermometer and Bluetooth® |
