Digi-Sense Traceable Analog Dial Power Controller with Calibration; 24 hour - 08645-30
Item #:
DS-08645-30
Brand:
Digi-Sense
Share this product:

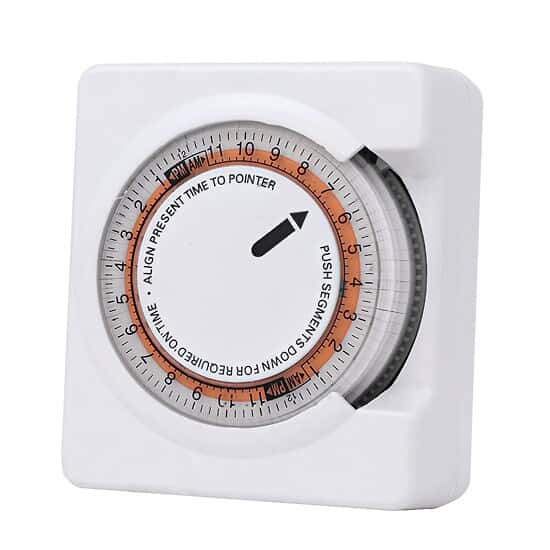

08645-30 Traceable Analog Dial Power Controller with Calibration; 24 hour by Digi-Sense
Controllers are easy to use - simply set the dial to the present time, pull up/push down pins based on your needs, plug the timer in and plug in the item to be controlled. Manual override switch allows you to turn on your equipment without disturbing the program.
Traceable® Products have an individually-numbered Traceable® Certificate provided with each unit, that assures accuracy from our ISO/IEC 17025:2017(1750.01) calibration laboratory accredited by A2LA. It indicates traceability of measurements to the SI units through NIST or other recognized national measurement institutes (NMI) that are signatories to the CIPM Mutual Recognition Agreement. Each product goes through an intense vetting process before it can carry the Traceable name, thus saving you both time and money by not having to calibrate separately.
- Includes NIST-Traceable certificate from our A2LA accredited (1750.01) calibration laboratory
Includes
NIST-traceable calibration certificate with data.
Timing Capacity | 24 hours |
Number of Channels | 1 |
Number of Circuits | 1 |
Number of Programs | 96 on/off events per day |
Resolution | 15 min |
Control Output | 15 amps at 125 VAC resistive |
Power (VAC) | 120 |
Power (Hz) | 60 |
Height (in) | 2 3/4 |
Depth (in) | 2 |
Width (in) | 3 1/4 |
Height (cm) | 7 |
Depth (cm) | 5.1 |
Width (cm) | 8.3 |
Description | Traceable® Analog Dial Power Controller with Calibration; 24 hour |
