Digi-Sense T20-1-507 Thermocouple, Wire, Type-T, 20-Gauge, FEP Insulation, 100-ft Spool - 08541-26

Item #:

DS-08541-26

Brand:

Digi-Sense

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us

Share this product:

Description

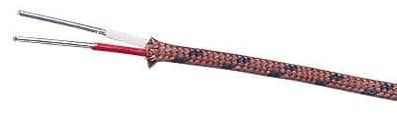

08541-26 T20-1-507 Thermocouple, Wire, Type-T, 20-Gauge, FEP Insulation, 100-ft Spool by Digi-Sense

Wire comes in 20-gauge size, ideal for fabricating your own probes or extension cables (meets ANSI and ASTM standards). Choose from wire with polyvinyl chloride (PVC), fluorinated ethylene propylene resin (FEP/FEP), fiberglass, high-temperature fiberglass, or ceramic fiber outer/inner insulation. These cables are also available in 100-ft or 1000-ft lengths for any application.

Specifications

Material	Fluorinated ethylene propylene (FEP)
Wire Gauge (Ga)	20
Error Limit	±1.5% reading from -330 to -85°F (-200 to -65°C); ±1.8°F (±1°C) from -85 to 270°F (-65 to 130°C); ±0.75% reading from 270 to 660°F (130 to 350°C)
Inner Insulation	Fluorinated ethylene propylene (FEP)
Outer Insulation	Fluorinated ethylene propylene (FEP)
Stranded / Solid	Solid
Overbraid	No
Min Temperature (° F)	-328
Max Temperature (° F)	400
Min Temperature (° C)	-200
Max Temperature (° C)	204
Length (ft)	100
Size (in)	0.068 in x 0.116 in
Description	Thermocouple, Wire, Type-T, 20-Gauge, FEP Insulation, 100-ft Spool
