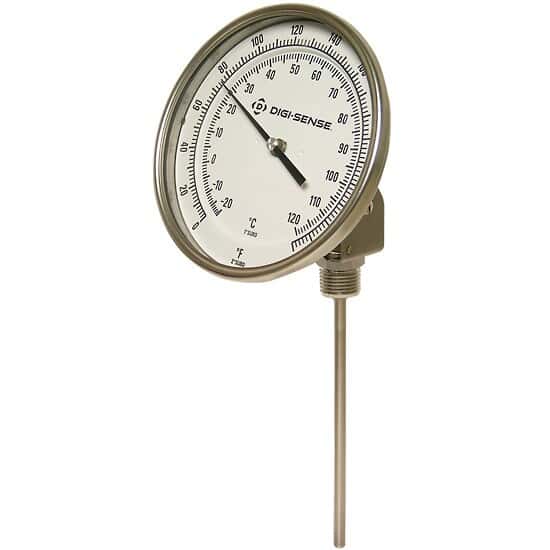

Digi-Sense TI.32 6 Bimetal Thermometer, Filled, Adjustable Angle, 3 in. Dia/6 in. L; 0-250F/-20-120C - 08082-01

08082-01 TI.32 6 Bimetal Thermometer, Filled, Adjustable Angle, 3" Dia/6" L; 0-250F/-20-120C by Digi-Sense

Accuracy is ±1% full-scale when stem is immersed 2" in liquids or 4" in gases (immerse models with a 2.5" stem length 2" in gases).

Measured stem length from the top of the threads to the bottom tip of the stem. Stem dia is 0.25"; threaded connection is 1/2" NPT(M). All thermometers meet or exceed ASME B40.3 standards. Maximum environmental temperature for Acrylic lens thermometers is 200°F (93°C).

Key Features

• Dampened movement
• Anti-parallax dial for accurate readings
• Hermetically sealed per ASME B40.3 standard to prevent fogging and protect against tough environments
• Rugged 304 stainless steel construction with Acrylic lens
• Recalibrate using the external reset screw
• For use in applications that do not exceeding 200°F
