Draeger Quaestor 8000 Standard NA - R63260

R63260 Quaestor 8000 Standard NA by Draeger

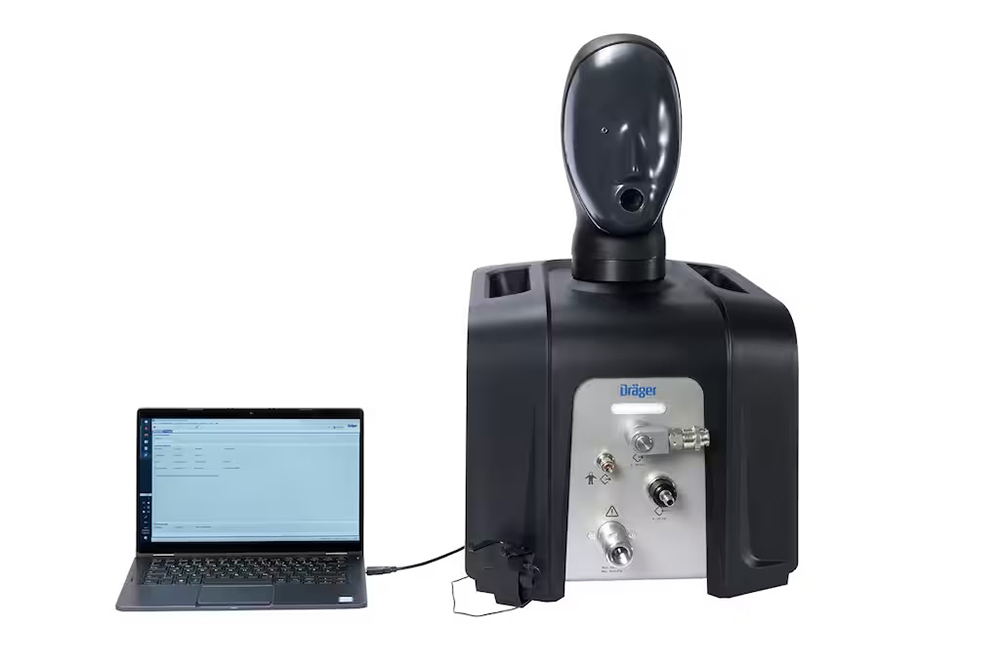

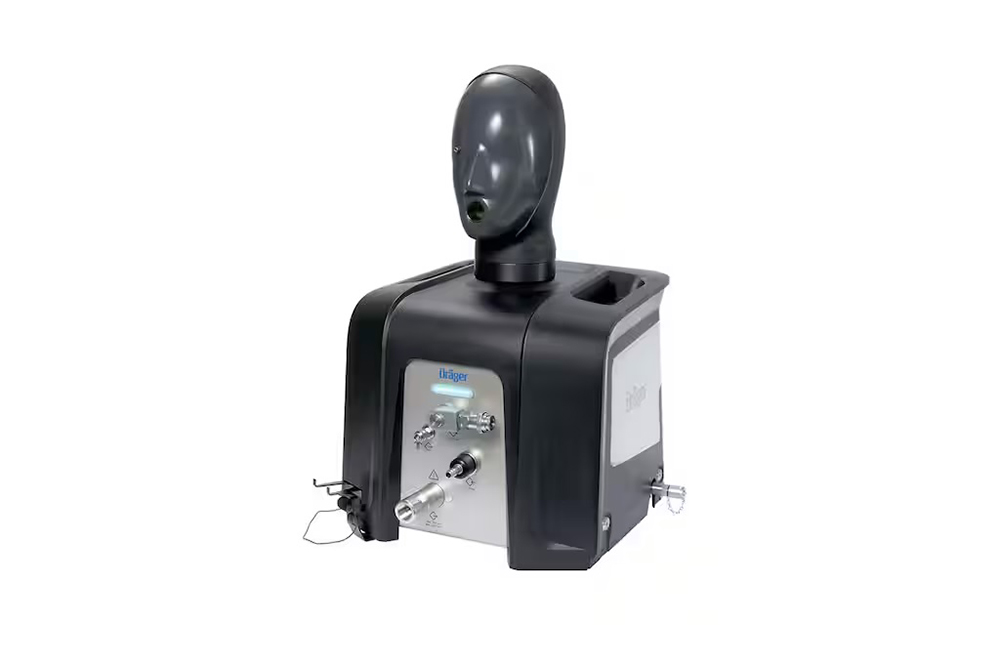

All static and dynamic tests of the Draeger Quaestor 8000 are carried out fully automatically. Controlled by the proven Protector software, each test is carried out intuitively. For you, this guarantees high efficiency through comfort and speed.

Fully-automatic static and dynamic tests

The test process is fully automated. Automatically opening and closing valves accelerate the process and manual intervention is no longer required. An external microphone also automatically captures the switch-on point of the low-pressure warning. The Quaestor 8000 can read the Draeger Sentinel when equipped with an optional cradle, so that the gauge leveling is done fully automatically.

Comprehensive test options

The Draeger Quaestor 8000 can test full-face masks, chemical protection suits and compressed air breathing apparatus for functionality and leak tightness. Tests of diving apparatus (SCUBA) and closed-circuit breathing apparatus (CCBA) are also possible, if required.

Ergonomic and flexible pressure connections

Draeger's Quaestor 8000 pressure connections are ergonomically and flexibly designed. The medium pressure inlet comes with an extendable hose to eliminate the risk of leaks and resistance due to additional extension hoses. In addition, the rotatable medium pressure outlet reduces the distance between the breathing connection of the lung demand valve and the mask opening or breathing adapter, e.g. if the test head has been rotated by 90 degrees.

Optimum tight fit for all mask sizes

You can turn and remove the test head without restrictions as needed. This flexibility allows you to tailor the test design comfortably to your requirements. In addition, the gel face of the test head, which emulates the elasticity of human facial skin, optimizes a tight fit for all common mask sizes.

Intuitive software

The included software contains a comprehensive database of pre-installed amendable device data. With user notices and graphic elements, the manual test steps are presented comprehensibly even for inexperienced users. After every completed test, a test result report is created for documentation purposes. An optionally applied test-due list provides you with timely information about tests that are due. The software also permits a customer-specific design of the test sequences, events and intervals.

New LED status bar

The new LED status bar informs you using different colors when a test is still running and with which result a test has been completed.

Smart accessories

Included in delivery are an external microphone for the detection of the acoustic signal of the low pressure warning and a specially designed bracket to ensure a comfortable rest position of the pressure gauge or Draeger Sentinel. Furthermore, a compressed air breathing apparatus holder allows you to comfortably position the device at eye level.
