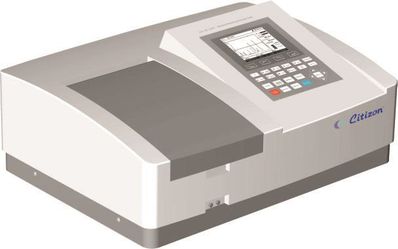

Citizen Scale UV 6100S Spectrophotometer
Item #:
CS-UV-6100S
Brand:
Citizen Scale
Share this product:
UV 6100S Spectrophotometer by Citizen Scale
UV-6 Series is an advance double beam design consisting of 3 models. UV-6100S with variable bandwidth : 0.5 / 1 / 2 / 4 / 5nm.
The two detectors measure sample and reference respectively and simultaneously for optimizing measurement accuracy.
They provide excellent performance for measurement in the range of 190 to 1100nm, the memory is 32K. They are suitable for pharmaceutical, biochemical and clinical lab applications as well as routine applications such as quantitative analysis, kinetics, wavelength scan, multiple components and DNA / Protein, PC Windows application software make these instruments versatile. All instruments provide excellent performance for measurements.
Features:
- Fixed or variable slits (Bandwidths).
- For stand-alone models, all software methods are included as built-in standard, this eliminates the need of software.
- Online software upgrading via internet helps to keep it updated.
- Data Download-to-PC software expands the data storage to unlimited.
- The stand-alone model has 5 inch screen and the PC model has UV-Vis Analyst software.
- Data can be saved by USB memory device directly Stand-alone models of UV-6 Series have same functions as UV-3 series, see next page for details.
Model | UV 6100S |
Wavelength Range | 190-1100nm |
Spectral Bandwidth | 0.5 / 1 / 2 / 4 / 5nm |
Optional system | Double Beam, Grating 1200 lines/mm |
Wavelength Accuracy | ±0.3nm |
Wavelength Repeatability | 0.2nm |
Scan Speed | Hi, MED, LOW, MAX. 3000nm/min |
Photometric Accuracy | ±0.3%T or ±0.003@1A |
Photometric Range | 0-200%T, -0.3 - 3A |
Stray Light | 0.04%T@220nm, 360nm |
Stability | 0.0003A/h @500nm |
Display | 5inches LCD (320 x 240 dots) |
Baseline Flatness | ±0.0005A |
Standard Cell Holder | Standard 10mm single cell holder (2pcs) |
Sample Compartment | Standard 10mm pathlength cuvette |
Light Source | Tungsten & Deuterium lamp (Pre-aligned) |
Output | USB Type A port for USB memory device (Right side) USB Type B port for optional computer connectivity (Back) Parallel port for printer |
Power Requirement | AC 110/220C 50/60Hz |
Dimensions (L x W x H) | 589 x 428 x 200 mm |
Weight | 22kg |
