Citizen Scale UV 3200S Spectrophotometer
Item #:
CS-UV-3200S
Brand:
Citizen Scale
Share this product:

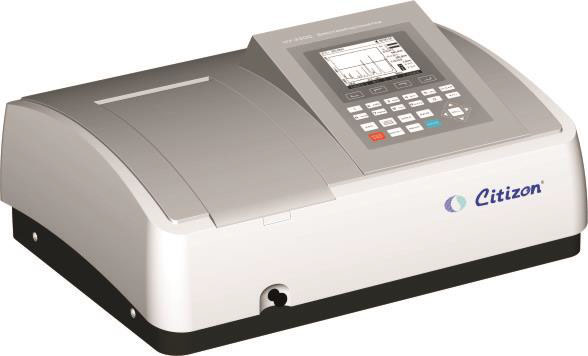

UV 3200S Spectrophotometer by Citizen Scale
UV-3200S Series is an advanced single beam design consisting of 9 models. They differ in bandwidth and wavelength accuracy, but provide excellent performance for measurements.
They are suitable for clinical, pharmaceutical, and bio-chemications such as quantitative analysis, kinetics, Wavelength Scan, Multi-Wavelength, and DNA/Protein analysis. The memory is 32K.
UV-Vis Analyst software Based Microsoft Windows makes these instruments versatile. All instruments provide excellent performance for measurements.
They are divided into in two types : UV-3200S models and stand-alone models.
Features:
- Fixed or variable slits (Bandwidths).
- Sealed, solvent – resistant tactile keypad with alpha-numeric entry for file names and units.
- Pre-aligned deuterium lamp for easy lamp replacement. The status of the lamps may be monitored.
- Powerful built-in program or PC Windows based software UV-Vis Analyst including sophisticated utility programs.
- Data download-to-PC software for stand-alone models (Optional).
- Real-time clock for date and time stamping of results.
- Data can be saved by USB memory device directly.
- In Stand-alone models, all software methods are included as built-in standard; this eliminates the need of software.
- Online software update via internet.
- Data can be downloaded.
- The UV-3200S models come standard with windows based application software UV-Vis Analyst.
Model | UV 3200S |
Wavelength Range | 190-1100nm |
Spectral Bandwidth | 0.5 / 1 / 2 / 4 / 5nm |
Optional system | Split Beam, Grating 1200 lines/mm |
Wavelength Accuracy | ±0.3nm |
Wavelength Repeatability | 0.2nm |
Scan Speed | Hi, MED, LOW, MAX. 3000nm/min |
Photometric Accuracy | ±0.3%T or ±0.003@1A |
Photometric Range | 0-200%T, -0.3 - 3A, 0-9999Conc |
Stray Light | 0.05%T@220nm, 340nm |
Stability | 0.0008A/h @500nm |
Dispaly | 5inches LCD (320 x 240 dots) |
Baseline Flatness | ±0.0015A |
Standard Cell Holder | Standard 10mm Pathlenth cuvette |
Light Source | Tungsten & Deuterium lamp (Pre-aligned) |
Output | USB Type A port for USB memory device (Right side) USB Type B port for optional computer connectivity (Back) Parallel port for printer |
Power Requirement | AC 110/220C 50/60Hz |
Dimensions (L x W x H) | 579 x 428 x 198 mm |
Weight | 20kg |
