Citizen Scale LFC-H1200 Horizontal Laminar Flow Cabinet
Item #:
CS-LFC-H1200
Brand:
Citizen Scale
Share this product:

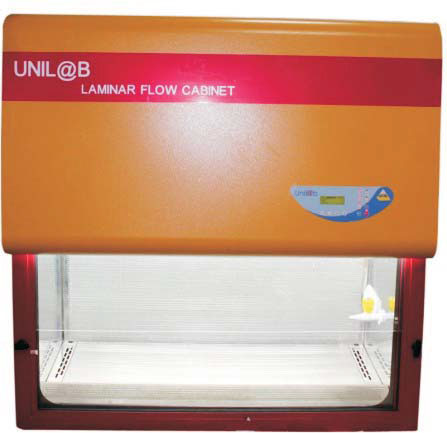

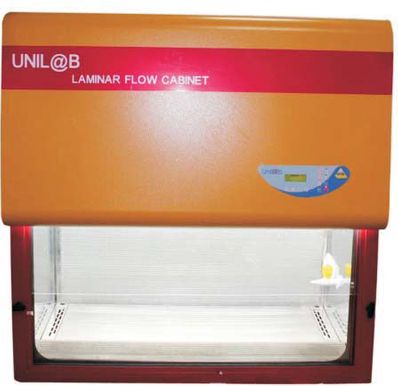

LFC-H1200 Horizontal Laminar Flow Cabinet by Citizen Scale
Citizen Laminar Flow cabinets designed to protect the people and sample by unique airflow circulation mode. 70% of the c ow enter the circulation and 30% exhaust, assure much higher protection than laminar airflow. The Unilab LFC series used widely in pharmaceutical, academic research centers, hospitals and labs, blood station, disease control and prevention center, etc.
Features
- The motorized glass sash can be lift exactly to the 20cm height, the safety for opening only by "one press" on the control panel.
- The Colorized Visual LCD Display indicates the status of the cabinet with a simple and convenient International figures code.
- The HEPA filter can be replaced by easy and safe way from the front.
- Elegance R70 are of the front panel to avoid any hurt by sharp edge.
- Adopts the spring gas bar mechanism to open the glass door frame and front panel automatically, save operator's time and easy for clean and maintenance.
- Choose the unique shape inflow baffle to assure the airflow average and have the same function as the hand rack.
- Compare to it's overall size, the work area offers a big space for operator.
- Adopts universal wheels make the cabinet can remove smooth and easily.
- Airflow Sensor mounted interior.
Model | LFC-V900 |
LFC-V1200 |
LFC-V1500 |
LFC-V1800 |
LFC-H900 |
LFC-H1200 |
LFC-H1500 |
LFC-H1800 |
Internal Size (WxDxH) (mm) | 910 x 590x 650 |
1203 x 590 x 650 |
1500 x 590 x 650 |
1800 x 590 x 650 |
910 x 500 x 670 |
1203 x 500 x 670 |
1500 x 500 x 670 |
1800 x 500 x 670 |
Airflow mode | 30% for exhaust, 70% for circulation |
|||||||
Velocity | Down flow: 0.3m/s Inflow: 0.45m/s |
|||||||
Filter | One HEPA / ULPA Filter with efficiency of 99.9995% at 0.1 - 0.3μm |
|||||||
Material | Interior : 304 Stainless steel, Exterior. could-rolled steel with epoxy coating |
|||||||
Clean Level | class 100 |
|||||||
Noise | ≤60 dB |
|||||||
Display | Colorized LCD display |
|||||||
Light | 1000lux, UV 30W |
|||||||
Power Supply | 220V/ 50Hz |
