Citizen Scale CG 3102GT Electronic Densimeter
Item #:
CS-CG-3102GT
Brand:
Citizen Scale
Share this product:

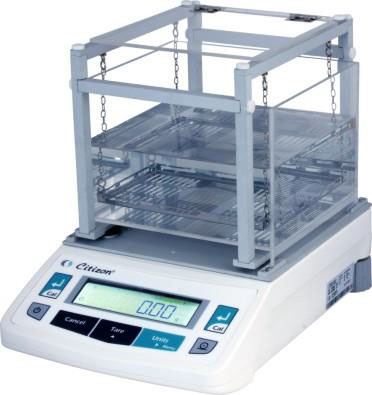

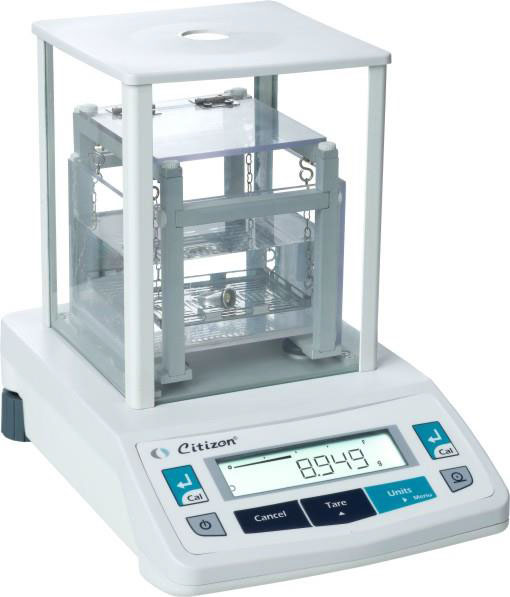

CG 3102GT Electronic Densimeter by Citizen Scale
Electronic Densimeter CY & CG series consist of 2 models, CY-232GTupgraded from previous model CG-613GT, and CG-3102GT with maximum capacity up to 3kg.
New features: 1. Accuracy increased 5 times than previous model 2.High stability weighing sensor 3.Auto-weighing function 4.Powder Density, which improves working efficiency and accuracy. They inherit the easy operation "Sample on the container, then into the water". Highly developed Densimeter to industrial standard.
Main Industry:
Automobile, Aircraft, Electric, Electron, Rubber, Plastic, Sinter, Nonferrous Metals, Glass, Paper, Foods, Woods, Laboratories, University, Medical, Oil, etc...
Rubber
Ceat, JK Tyres, MRF, Goodyear, Sum Exim, Glenrock Rubber, Trimurti Auto, RPG Cable, Anar Rubtech, Rubber, Birla, Bridgestone, Falcon, Hindustan, Paragon, Phoenix, Sundaram, Relaxo, Duroflex, Garware, Monotona, Bridgestone, JSR, Mitsubishi Chemical, Ohtsuka Poli-Tech, Moon Star etc.....
Plastic
Ceilo, Amar, TBF Chem, Reliance, Finorex, Neelkamal, Suprem, Prince Automobile, Sumitomo chemical, Toray, Asahi chemical, Fuji film, JBF Chemical, United Phosphorus, BASF Chemical, Dow Chemical, etc....
Automobile, Aircraft, Ships
Toyota, Honda, Yamaha, Tata, M&M, L&T, Skoda, Bajaj, American Spring, HAL, Ford, General Motor, Hero, TVS, Maruti etc.
| Model | CG 612GT |
CY 613GT |
CY 323GT |
CY 204GT |
CG 3102GT |
SSH 93GT |
| Density Resol. (g/cm³) | 0.01 |
0.001 |
0.001 (0.0001) |
0.0001 |
0.01 (0.001) |
0.1 (0.01) |
| Valume Display (cm³) | 0.01 |
0.001 |
0.001 |
0.0001 |
0.001 |
0.01 |
| Scale Capacity (g) | 0.01 ~ 600 |
0.01 ~ 600 |
0.001 (0.0001) ~ 320 |
0.0001 ~ 220 |
0.01 (0.001) ~ 3100 |
0.1 (0.01) ~ 35 |
| Repeatability (g/cm³) | ±0.01 |
±0.001 |
±0.001 |
±0.0001 |
±0.01 |
±0.1 |
*Necessary Weight against density |
||||||
| Measure Density(g/cm³) | 0.01 ~ |
0.001 ~ |
0.001 ~ |
0.0001 ~ |
0.01 ~ |
0.1 ~ |
| Measurable Maximum size (mm) (L x W x H) | 342 x 212 x 270 |
342 x 212 x 270 |
342 x 212 x 270 |
342 x 212 x 270 |
342 x 212 x 230 |
517 x 302 x 130 |
| Necessary Amount of Liquid (cc) | - |
50 |
50 |
50 |
50 |
50 |
| Measuring Method | Confirm to Pycnometer and Hydrostatic Method |
|||||
| Adaptable Standards | BIS K6268A, BIS K6350 (rubber), BIS K7112 (Plastic) etc... USA ASTM D297-93-16 (rubber), D797-00 (Plastic) etc / JIS, UL, ISO Standard etc... |
|||||
| ISO | O |
O |
O |
O |
O |
O |
| CE | O |
O |
O |
O |
O |
O |
| Power Source (Intl.) | AC 100 ~ AC 240W |
|||||
| Weight (kg) | 5.5 kg |
7.8 kg |
7.8 kg |
7.8 kg |
5.5 kg |
15 kg |
