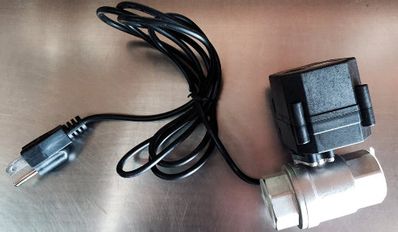

Quantrol Motorized Ball Valves - Capacitor Return, 3/4", 125°F, 145 PSI Max - CRMBV-3/4

CRMBV-3/4 Motorized Ball Valves - Capacitor Return, 3/4", 125°F, 145 PSI Max by Quantrol

Capacitor return motorized ball valves are recommended for cooling tower bleed applications. These fully ported valves pass suspended solids more efficiently than solenoid valves, thus are less likely to stick open or closed. Maintenance requirements are reduced and reliability issignificantly increased. Chemical treatment programs are more effective because total dissolved solids (TDS) stay in the target control range.

• Compact Design
• Full Port 304 Stainless Steel Valve
• IP67 Water Resistant Actuator
• Optional UV Shield for Enhanced Protection
• Motor Power Open/Close
• Open/Close Visual Indicator
• 125° F Max Temp
• 145 PSI Max Pressure
• 5.5 FT, 3 Wire, 18 Gauge Power Cord with Grounding Plug
• 115 Volt, 50/60Hz
