Celestron PentaView LCD Digital Microscope - 44348
Item #:
CEL-44348
Brand:
Celestron
Share this product:

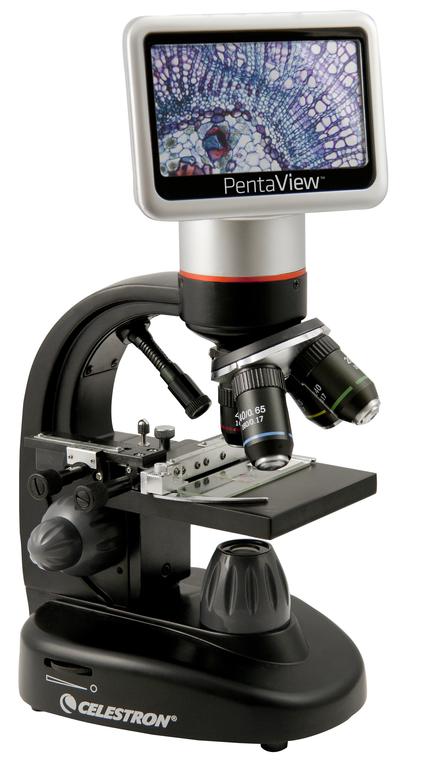

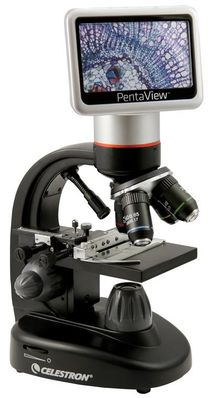

44348 PentaView LCD Digital Microscope by Celestron
The professional-level Celestron PentaView LCD Digital Microscope is a touchscreen LCD microscope with advanced features at a reasonable price. PentaView features 5 fully achromatic lens objectives, a mechanical stage, a 4.3" TFT full color touch screen, 5 MP CMOS sensor, and a 4 GB SD card for storing your photos and videos. Taking high-resolution images and video of specimen slides has never been easier.
The LCD screen rotates 180 degrees so you can easily share your viewing with others. For an even bigger audience, use the TV output to display on a television or projector. With magnification from 40 to 600x (2400x with digital zoom), PentaView is ideal for viewing a range of cellular specimens on slides.
Great for the discriminating professional or serious hobbyist, the LCD Digital Microscope with touchscreen is an excellent tool for labs, schools, scientific research, and more.
- 40x to 600x magnification, up to 2400x with digital zoom

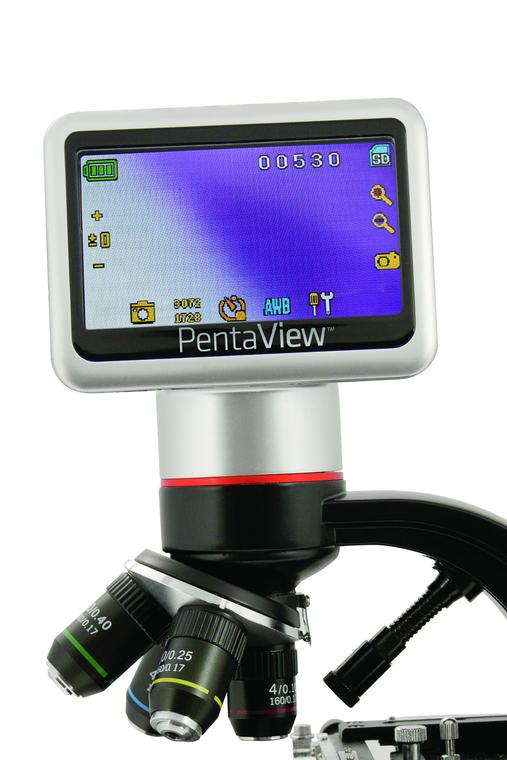

- 4.3" LCD touchscreen
- 5 MP CMOS built-in digital camera
- 5 fully achromatic objective lenses: 4x, 10x, 20x, 40x, 60x
- Top & bottom adjustable LED illumination
- 180° rotatable LCD screen

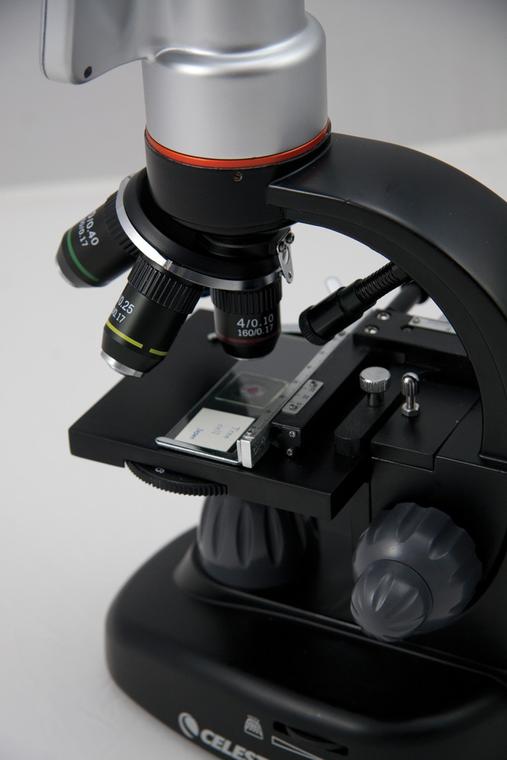

- Fully mechanical stage
- Coarse and fine focus knobs
- Filter wheel/diaphragm
- AV/TV output with cable
- Optional battery mode
- SD card slot with 4 GB SD card included (Supports up to 32 GB)
- Universal AC adapter with multi-plugs for international usage

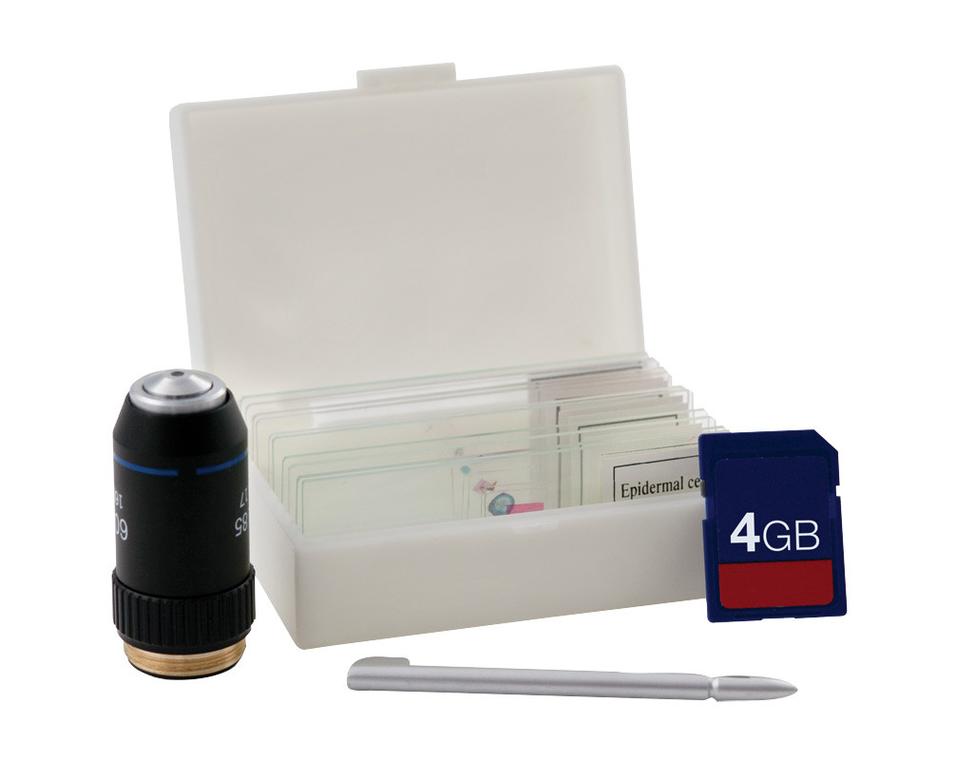

- Accessories included: 10 prepared slides, hard carrying case, dust cover, touch pen, USB cable, AV cable
AC Adapter | Input universal 100 to 240 volt, 50/60 Hz, 4 plug multi-country |
Batteries | 4 AA (user-supplied) |
Condenser Lens | 0.65 |
Continuous Video (VGA) | Yes, 30 fps |
Course Focuser | Yes |
Dimensions | 178 mm x 140 mm x 330 mm (7 in x 5.5 in x 13 in) |
Filter Wheel | 6 position - red, blue, green, 1 mm, 3 mm, 6 mm aperture |
Fine Focus | Yes |
Illumination | Upper and lower, built-in adjustable LEDs |
Imaging Sensor | 5MP CMOS ".5", 10x magnification in lieu of eyepiece |
LCD Screen | High definition touch, 480 x 272 pixels resolution, 4.3 in (109 mm) with 4x digital zoom, rotates 180" |
Magnification (high power) | 600 (2400 with digital zoom) x |
Magnification (low power) | 40 x |
Objective Lense Diameter | 5 achromatic - 4x, 10x, 20x, 40x, 60x |
Objective Nosepiece | 4 position with click stop |
Stage | Fully mechanical with metal clips, 3.5 in x 3.5 in (88 mm x 88 mm) |
USB Connection | 2.0, 1.5 m cable included |
Weight | 67 oz, 1.9 kg |
