Celestron CGX Equatorial 800 Schmidt-Cassegrain Telescope - 12050
Item #:
CEL-12050
Brand:
Celestron
Share this product:

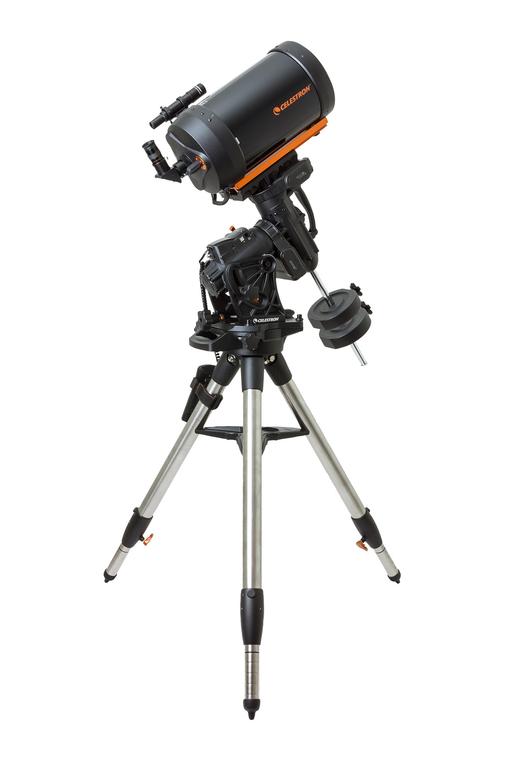

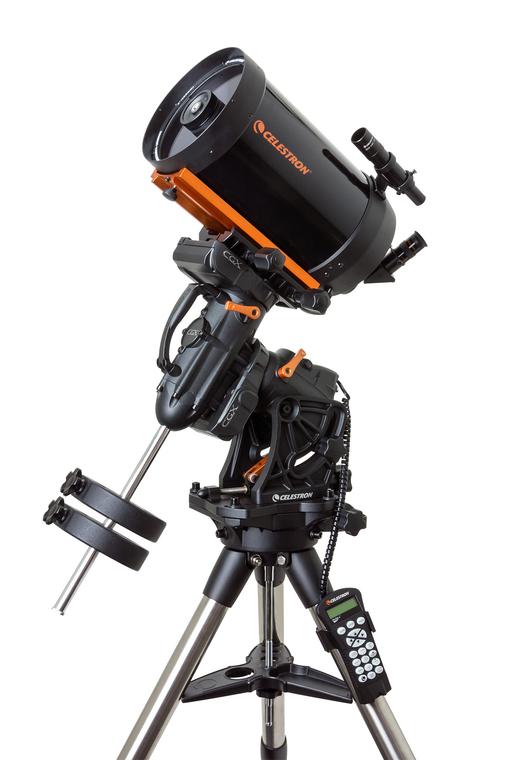

12050 CGX Equatorial 800 Schmidt-Cassegrain Telescope by Celestron
The CGX 800 Schmidt-Cassegrain Telescope features Celestron's premium StarBright XLT coated optics and the all-new state of the art CGX computerized equatorial mount. It is the most lightweight and portable of the three size models. This telescope is especially at home as a solid platform for long exposure photography with optional CCD cameras or photographic equipment. At 8 inches of aperture with our premium StarBright XLT coatings, the CGX 800 gives you over 800 times the light gathering power than the unaided eye.
CGX Mount
Celestron's workhorse CGEM mount lineup has been the German Equatorial backbone for telescopes ranging from 6 to 11 inches of aperture. Since that time, many more astro-imagers and planetarium controlled setups have emerged as backyard telescope technology has evolved. Celestron's engineering team applied their years of experience designing German Equatorial mounts to the all-new CGX EQ, a culmination of all the advancements made to our technologies, value, and ease-of-use.
The new CGX was designed to better support your telescope for both visual and astro-imaging pursuits. Key design goals included a lower profile EQ head, which provides a more compact and therefore more stable setup; a better drive system; remote operation-friendly with home and limit optical sensors; easier polar alignment adjustments; and better cable management. In addition to that, we've made mechanical and ergonomic improvements throughout to make the mount sturdier, easier to use, and transport. The CGX is our new Equatorial backbone to support a wide range of telescopes.
Aperture (mm) | 203.2 mm (8 in) |
Autoguide Port | Yes |
Dovetail Compatibility | CGE Mount |
EQ Head Weight | 44 lbs. |
Finderscope | 6x30 |
Focal Length | 2032 mm (80 in) |
Focal Length of Eyepiece | 25 mm (0.98 in) |
Focal Ratio | 10 |
Highest Useful Magnification | 480x |
Instrument load capacity | 55 lbs. |
Latitude adjustment range | 3"-65" |
Light Gathering Power (Compared to Human Eye) | 843x |
Limiting Stellar Magnitude | 14 |
Lowest Useful Magnification | 29x |
Magnification of Eyepiece | 81x |
Max Slew Speed | 5"/second (4"/second is default) |
Mount | German Equatorial Mount |
Mount Info: | N.A. |
Number of Auxiliary ports | 2 |
Optical Coatings | StarBright XLT |
Optical Design | Schmidt-Cassegrain |
Optical Tube | Aluminum |
Optical Tube Length | 17 in (432 mm) |
Optical Tube Weight | 12.5 lbs (5.67 kg) |
Resolution (Dawes) | 0.57 arc seconds |
Resolution (Rayleigh) | 0.69 arc seconds |
Secondary Mirror Obstruction | 10% |
Software | New telescope control PC software |
Star Diagonal | 1.25 |
Tracking Rates | Sidereal, Solar and Lunar |
Tripod height adjustment range | 47.25" to 77.5" including EQ headA |
Tripod leg diameter | 2" |
Tripod Weight | 19.2 lbs. |
USB Port | Yes |
Includes | CGX Tripod Accessory Tray 2 x 11 lbs counterweight NexStar+ Hand Control DC Power Cable (plugs into cigarette lighter socket) |
