Crowcon Clip Maintenance Free Single Gas Monitor, CO 35/50ppm - CC-C-35
Item #:
CC-C-35
Brand:
Crowcon
Share this product:

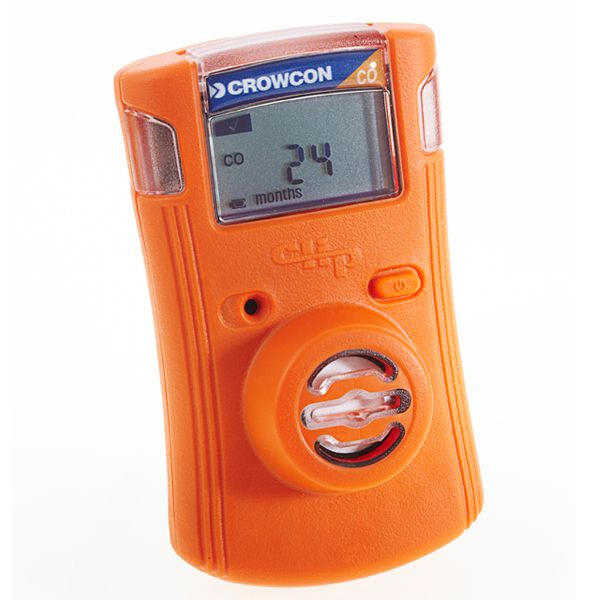

CC-C-35 Crowcon Clip Maintenance Free Single Gas Monitor, CO 35/50ppm by Crowcon
Reliable and durable fixed life monitoring in a compact and maintenance free package.
Available in two models, the Crowcon Clip has a 2 year life and is available for hydrogen sulphide (H2S), carbon monoxide (CO) or oxygen (O2). The Crowcon Clip+ has the innovative hibernate function, ideal for contractor or rental fleets where they wish to put the unit into standby mode. Offered for H2S or CO, this unit gives 24 months operation over a period of up to 3 years.
Offering event logging and designed to withstand the harshest industrial working conditions the Crowcon Clip range
- 2 year life
- H2S, CO and O2 options
- Ensures worker safety
- Reduces training time
- Removes the need for service and maintenance
- Offers adjustable alarm levels
- Real time gas reading or life left indication
- Self test functionality
- C-Test gas test and calibration station
- Event log with IR interface
- Programmable unit identification
- On screen and LED Gas (Bump) Test due indication
- IR Clip software
| Temperature | H2S: -40°C to +50°C/-40°F to +122°F CO: -40°C to +50°C/-40°F to +122°F O2: -35°C to +50°C/-31°F to +122°F |
| Humidity | 5% to 95% non-condensing RH |
| Alarms | Top, front and side visual LED’s 95 dB audible alert Vibrate |
| Ingress Protection | IP66 and IP67 |
| Tests | Full function self test on activation and every 20 hours; continuous automatic battery integrity tests |
| Operational Life | Two years>2900 alarm minutes* |
| Shelf Life | 1 year prior to activation Shown on box label |
| Compliance | EMC Directive 2004/108/EC |
| Certification | UL-913 & CSA-C22.2 No.157 Class 1 Div 1 & 2, Groups A, B, C, D ATEX II 1G Ex ia IIC T4 Ga IECEx Ex ia IIC T4 |
| Warranty | Clip: 2 years from activation* Clip+: 3 years from activation (24 month operation) |
| Sensor Range | Hydrogen sulphide: 0-100 ppm Carbon monoxide: 0-300 ppm Oxygen: 0-30% Volume |
| Communication accessory | USB IR Link for Event download and configuration |
| Size (h x w x d) | 81mm x 50mm x 28mm (3.2in x 2.0in x 1.1in) |
| Weight | 76g/2.7oz |
Crowcon Clip |
|||
| Gas | Part Number | Alarm 1 | Alarm 2 |
| H2S | CC-H-2 | 2 ppm | 5 ppm |
| H2S | CC-H-5 | 5 ppm | 10 ppm |
| H2S | CC-H-10 | 10 ppm | 15 ppm |
| CO | CC-C-25 | 25 ppm | 50 ppm |
| CO | CC-C-30 | 30 ppm | 100 ppm |
| CO | CC-C-35 | 35 ppm | 50 ppm |
| O2 | CC-O-19 | 19% VOL | 23.5% VOL |
| O2 | CC-O-19.5 | 19.5% VOL | 23.5% VOL |
Crowcon Clip+ |
|||
| Gas | Part Number | Alarm 1 | Alarm 2 |
| H2S | CCP-H-2 | 2 ppm | 5 ppm |
| H2S | CCP-H-5 | 5 ppm | 10 ppm |
| H2S | CCP-H-10 | 10 ppm | 15 ppm |
| CO | CCP-C-25 | 25 ppm | 50 ppm |
| CO | CCP-C-30 | 30 ppm | 100 ppm |
| CO | CCP-C-35 | 35 ppm | 50 ppm |
