Crowcon Eikon Commander - C01784
Item #:
C01784
Brand:
Crowcon
Share this product:

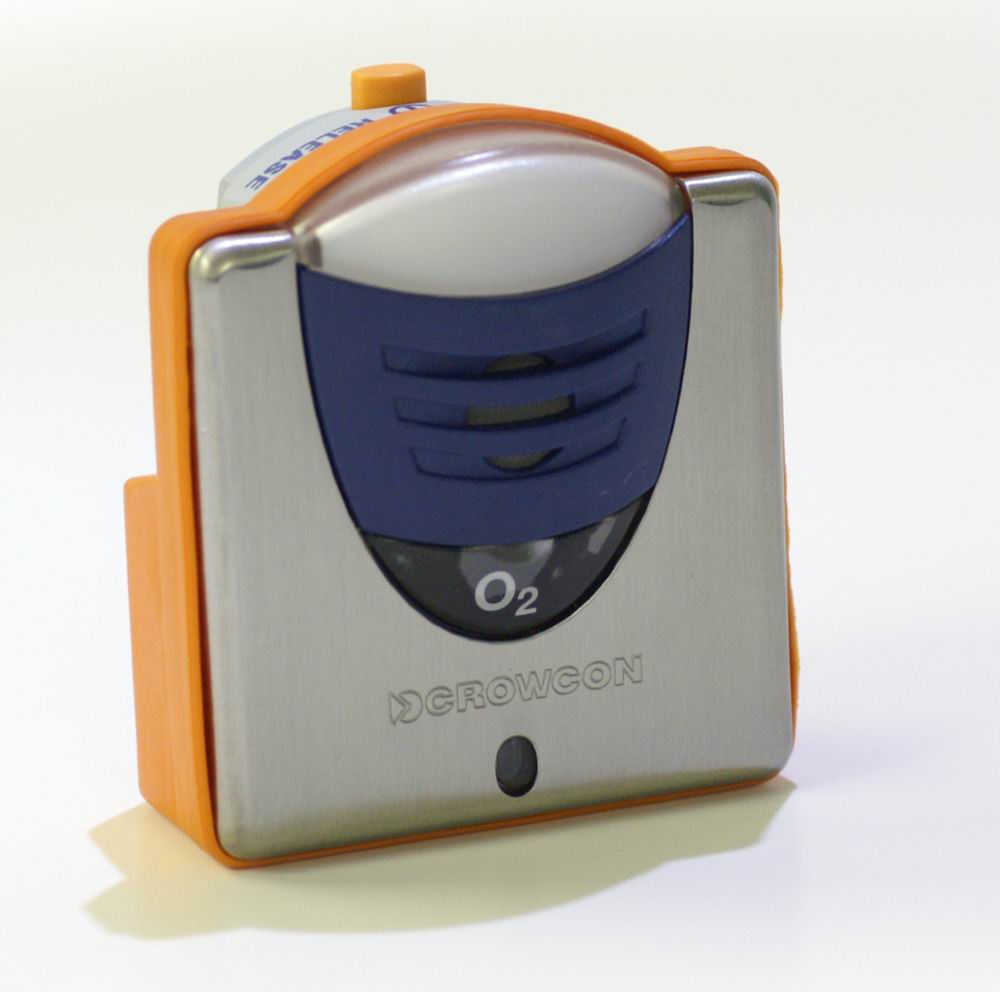

C01784 Eikon Commander by Crowcon
Simple & Safe to Use
- Zero training required
- Clear end of life indication
- Simple ‘tap tap’ test for assurance of operation
No Hidden Costs
- Unit will operate for 2 years
- No parts or servicing will be required during this time
- Dust filters are easily replaceable on site
Simple & Loud Alarms
- Quad angled LEDs for great visability
- Clear and loud 94dBA audible alarm
- Alarm and check tones are distinctive
Lightweight & Rugged
- Easy and unobtrusive to wear
- Water and dust protected to IP65 and high chemical resistance
- Cam grip pocket clip makes sure the unit stays put
| Weight | 125g | ||||||||||||
| Dimensions | 69 h x 63 w x 38 d mm | ||||||||||||
| Measuring ranges and alarm settings |
|
||||||||||||
| Typical alarm response time | 5 seconds | ||||||||||||
| Unit life | 2 years Unit may be returned to Crowcon for recycling |
||||||||||||
| Audible alarm | 94dBA at 30cm (85dBA at 1m) | ||||||||||||
| Visible alarm | 4 multi-angled red LEDs | ||||||||||||
| Display | None | ||||||||||||
| On indication | Green LED flashes every fifteen seconds | ||||||||||||
| Self test | A double tap on a hard surface initiates a self test routine. An LED sequence and multi tone bleep is performed upon successful completion. | ||||||||||||
| End of life alarm on self test | Triple flash of the number of red LEDs that correspond to the number of weeks left. | ||||||||||||
| Temperature range | -20°C to + 50°C (-4°F to +122°F) | ||||||||||||
| Humidity | 5-95% RH non-condensing | ||||||||||||
| Approval codes |
|
||||||||||||
| Ingress protection | IP65 | ||||||||||||
| EMC compliance | EN50270 | ||||||||||||
| Accessories | Accessory bump test apparatus, to provide gas test. Scanner to transmit commands via a swipe card. Thermal printer to provide traceability of operation. | ||||||||||||
| Instructions | Pull rip strip to activate. Unit operates constantly for two years. |
