Blackline Device, G7x 900MHz, North America - G7X-NA
Item #:
BS-G7X-NA
Brand:
Blackline Safety
Share this product:

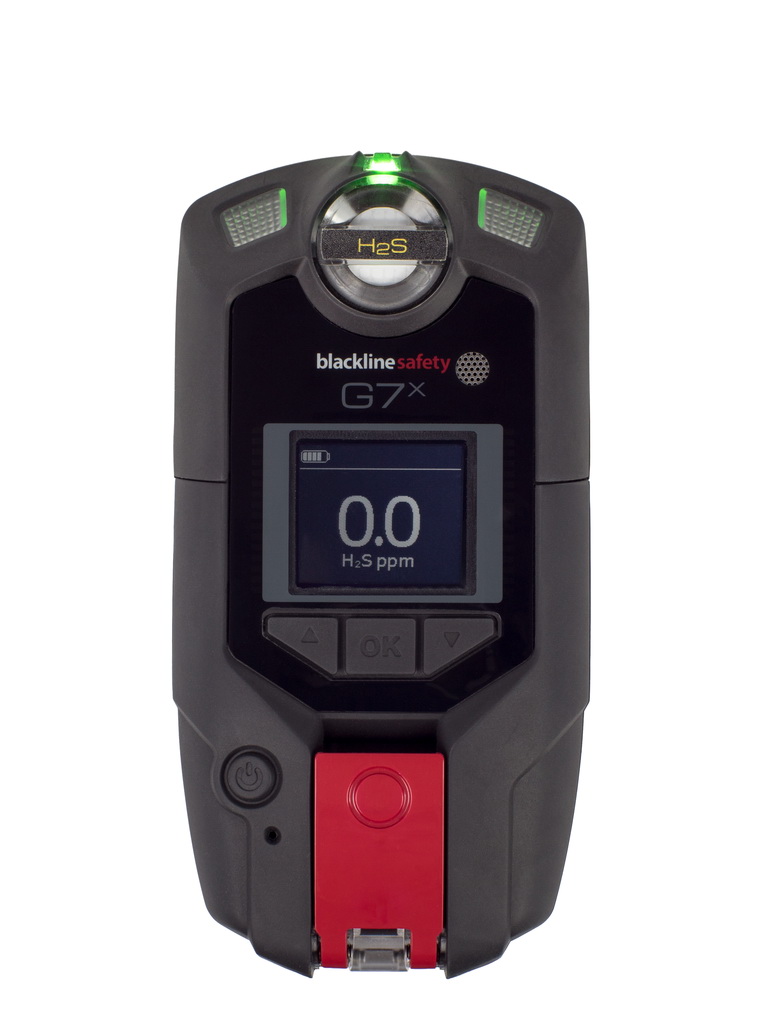

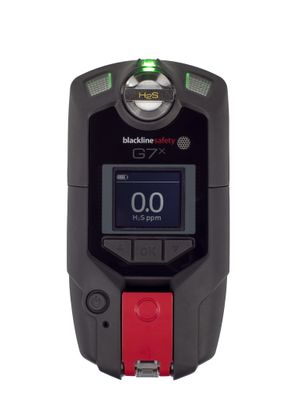

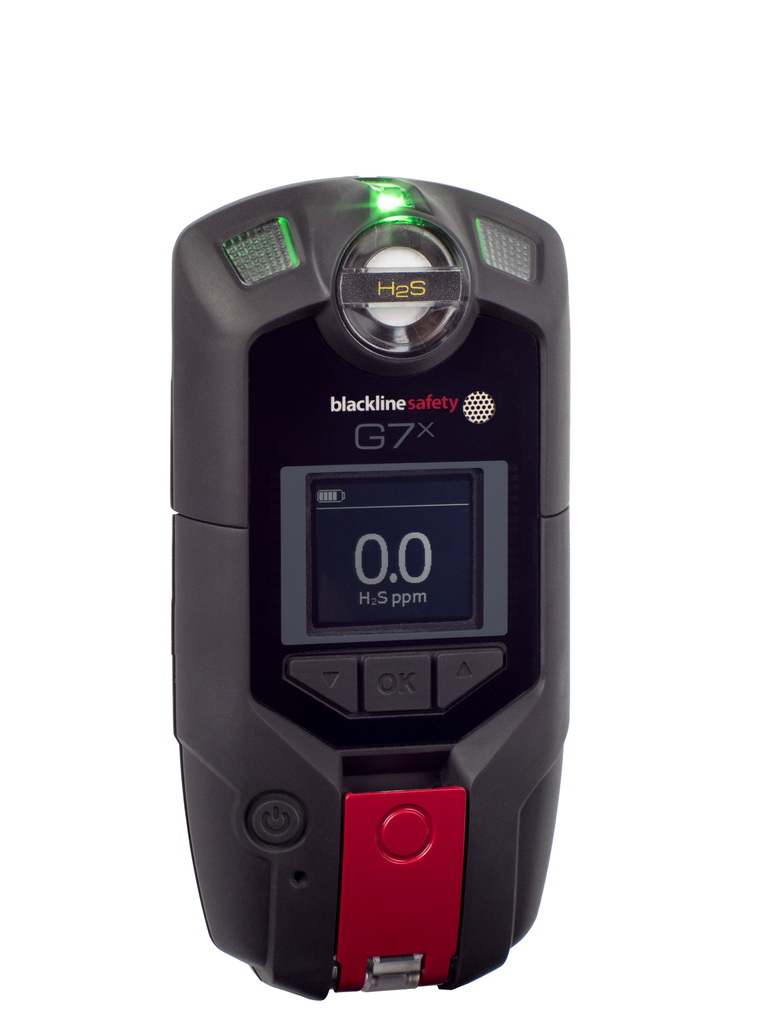

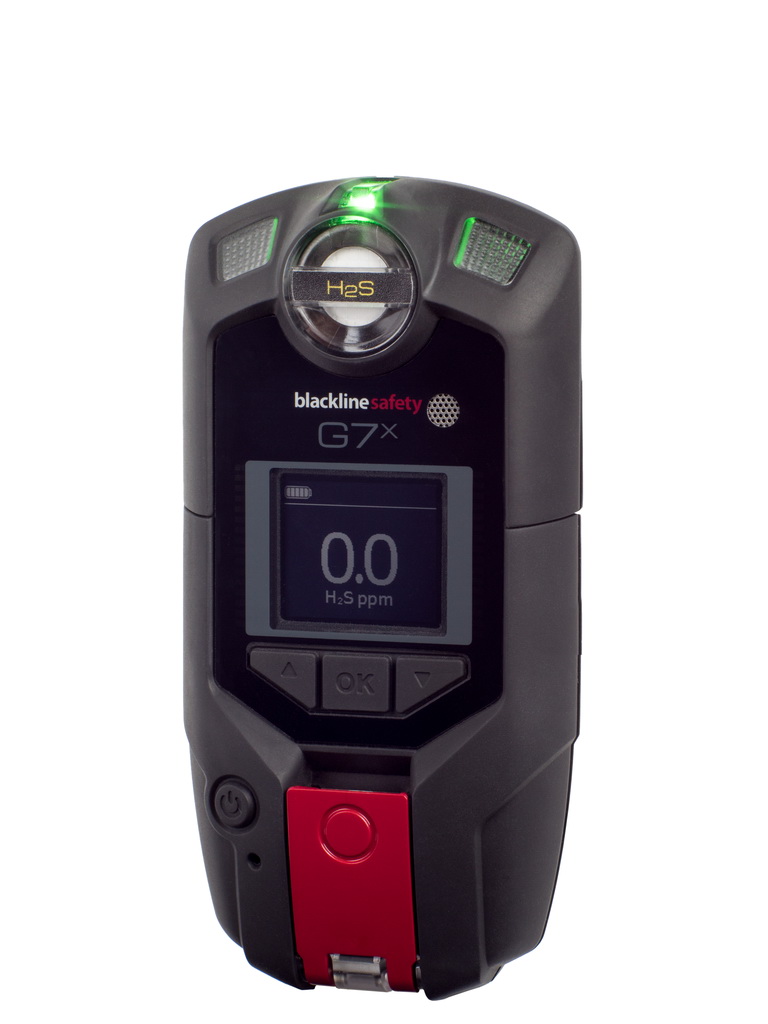

G7X-NA Device, G7x 900MHz, North America by Blackline Safety
Blackline Safety's G7x uses 3G cellular and satellite networks to connect your team to real people. G7x confidently accounts for everyone's wellbeing and whereabouts in real-time to equip live monitoring personnel when someone needs a hand, in even the most remote locations.
The G7x system includes the G7x user-worn device and G7 Bridge portable satellite and cellular base station. Leveraging 3G and Iridium satellite networks, remote teams are wirelessly monitored by real people. Connectivity seamlessly transitions to satellite when cellular becomes unavailable, for true last-mile monitoring. G7x communicates with G7 Bridge through an industrial-quality 900 MHz radio link from up to 2 km away. G7 Bridge connects with the Blackline Safety Network and monitoring teams using available 3G or satellite connections.
G7x automatically watches over workers and calls for help even when the employee can't. All safety incidents are communicated to 24/7 monitoring personnel who can mobilize responders to an employee's exact location or trigger an evacuation in real-time. Constant connectivity provides critical insights and situational awareness for optimized emergency responses.
G7x delivers an exclusive, customizable and modular design. Gas detection is tailored to work environments with a selection of cartridges and sensors. Everything is completely configurable to meet the needs of every industry, application and scenario. Bump test and calibration data is communicated automatically to Blackline's monitoring portal for real-time compliance visibility and reporting. Wireless connectivity ensures that each G7x is remotely configurable and firmware updates are automatic. From onset of an incident through to resolution, all activities are timestamped for future reporting.
Features
- Fall detection
- Messaging
- SOS alert
- GPS location
- Satellite Connectivity
- No-motion detection
- Gas alarms
- Check-in
- Indoor location compatible
| Standard G7 Safety Alert Features (All safety alerts are transmitted immediately to the Blackline Safety Network) |
Fall detection and No motion detection: Tri-axis accelerometer, tri-axis gyro, software processing, configurable sensitivity, configurable time window (1-30 mins, or off ) for no motion detection Emergency latch: Pull latch to trigger remote alert Silent emergency: Press and hold latch to trigger remote alert Low-battery: configurable threshold Worker check-in: Configurable timer (5-180 min, or off), automatic check-in when driving |
| Additional Safety Features Available with Gas Cartridges All gas alerts are transmitted immediately to the Blackline Safety Network |
Time-weighted average (TWA) Short-term exposure limit (STEL) High gas alert Low gas alert Bump test and calibration notification Bump test and calibration failure alert |
| Size & Weight | G7 with Standard Cartridge Size: 64 mm x 124 mm x 27 mm (2.52" x 4.88" x 1.06") Weight: 162 g (5.7 oz) G7 with Single-gas Cartridge Size: 64 mm x 128 mm x 27 mm (2.52" x 5.04" x 1.06") Weight: 167 g (5.9 oz) G7 with Quad-gas Cartridge Size: 66 mm x 150 mm x 27 mm (2.52" x 5.91" x 1.06") Weight: 192 g (6.8 oz) |
| Single-gas and Quad-gas Sensor Options H2S, LEL, CO, O2, CO2, NH3 |
H2S (Hydrogen Sulfide) Sensor type: Electrochemical Lowest detection limit: 0.5 ppm Upper detection limit: 50 ppm Resolution: 0.1 ppm LEL combustible Sensor type: Infrared Lowest detection limit: ±4 %LEL Upper detection limit: 100 %LEL Resolution: 1 %LEL CO (Carbon Monoxide) Sensor type: Electrochemical Lowest detection limit: 1 ppm Upper detection limit: 500 ppm Resolution: 1 ppm O2 (Oxygen) Sensor type: Pumped electrochemical Lowest detection limit: 0.1 %vol Upper detection limit: 25.0 %vol Resolution: 0.1 %vol CO2 (Carbon Dioxide) Sensor type: Infrared Lowest detection limit: 50 ppm Upper detection limit: 50000 ppm Resolution: 50 ppm NH3 (Ammonia) Sensor type: Electrochemical Lowest detection limit: 0.5 ppm Upper detection limit: 100.0 ppm Resolution: 0.1 ppm |
| User Interface | 168 by 144 pixel graphical, high contrast, liquid crystal display with front lighting, menu system driven by a three-button keypad, power button (on/off), check-in button (check-in/silent emergency), emergency latch (send emergency alert) |
| User Notification | Green SureSafe® light: Blinking (powered), continuous (connected) Yellow top and front lights: Personal pending alarm and personal warning alarm Red top and front lights: Remote alert communicated Blue LiveResponse™ top and front lights: Monitoring team confirmation that alert has been acknowledged Personal alarm Indicators: speaker, LEDs and vibration motor Speaker sound pressure level: ~90 dB @ 10 cm (~90 dB @3.94") Voice calling: Speakerphone and phone modes (G7c model only) |
| G7x Wireless Radio Works with G7 bridge satellite base station |
Radio: 902.0-928.0 MHz, 1 Watt Antenna: Internal Radio link range: 2 km (1.25 mi) real-world |
| Wireless Updates | Device configuration changes: Yes Device firmware upgrade over-the-air (FOTA): Yes |
| Location Technology | GPS Radio: 48-channel high sensitivity Assisted-GPS: Yes GPS Accuracy: ~5 m (16 ft) Outdoors Indoor location technology: Blackline Safety location beacons Location update frequency: G7c 10 sec, G7x 15 min |
| Power & Battery | Rechargeable Li-ion battery: 1250 mAh Li-ion Battery Life: 18 hours continuous operation at 20° C (68° F) Charge time: 4 hours |
| Environmental | Storage temperature: -30°C to 75°C (-22°F to 167°F) Operating temperature: -20°C to 55°C (-4°F to 131°F) Charging temperature: 0°C to 45°C (32°F to 113°F) Ingress Protection: IP67 |
| Warranty | G7: two years Cartridges: Lifetime G7 complete plan: three years |
| Blackline Live Web Application | Cloud-hosted safety monitoring web application is highly customizable for every customer requirement. Includes live map, employee address book, user roles, alert management, device configurations, alert setups and reporting. |
