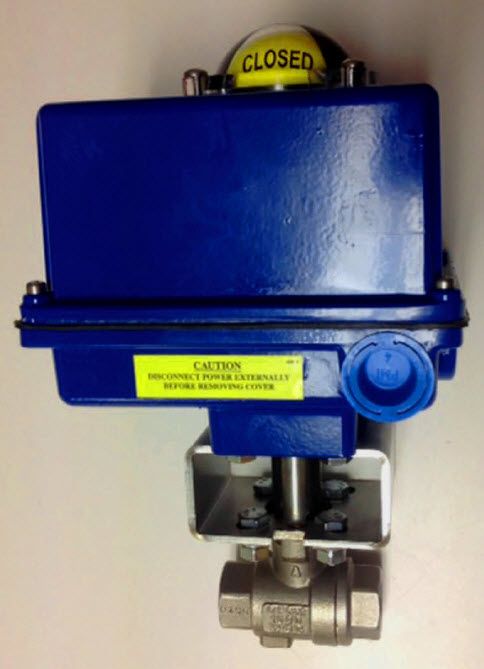

Quantrol Motorized Ball Valves - Power Open & Close for Boilers, 3/4", 316SS Body, 450°F, 150F Actuator Ambient Temp - BMBV-3/4

Quantrol Motorized Ball Valves - Power Open & Close for Boilers, 3/4", 316SS Body, 450°F, 150F Actuator Ambient Temp - BMBV-3/4

Item #:

BMBV-3-4

Brand:

Quantrol

Quantrol Motorized Ball Valves - Power Open & Close for Boilers, 3/4", 316SS Body, 450°F, 150F Actuator Ambient Temp - BMBV-3/4

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Share this product:

Description

BMBV-3/4 Motorized Ball Valves - Power Open & Close for Boilers, 3/4", 316SS Body, 450°F, 150F Actuator Ambient Temp by Quantrol

These durable Power Open / Power Close motorized ball valves are designed to use in demanding automatic boiler blow down applications.

ACTUATOR

NEMA 4 Enclosure
Open / Close Visual Indicator
Manual Override
1.0" Riser Dissipates Heat & Extends Actuator Life
115 Volt, 50/60Hz, 0.55 Amps
150°F Max Ambient Temperature

BALLVALVE

316°F Stainless Steel Construction
PTFE Seat, Packaging and Gasket
Max Boiler pressure 450 PSIG
Max Temperature 459°F

Specifications

Model #	Pipe Size	Position	Cycle Time	Max Torque
BMBV-1/2"	1/2" FNPT	Normally Closed	< 5 Seconds/90°	100 Inch Pounds
BMBV-3/4"	3/4" FNPT	Normally Closed	< 5 Seconds/90°	100 Inch Pounds
BMBV-1.0"	1.0" FNPT	Normally Closed	< 5 Seconds/90°	100 Inch Pounds

Datasheets & User Manuals

Datasheets & User Manuals

Quantrol Boiler Blowdown Valves Data Sheet

Questions & Answers

Questions & Answers

Reviews

Reviews

Quantrol Motorized Ball Valves - Power Open & Close for Boilers, 3/4", 316SS Body, 450¢XF, 150F Actuator Ambient Temp - BMBV-3/4

$646.00
