Agrowtek SXL-D-RX1 Drain System with Relay
Item #:
AT-SXL-D-RX1
Brand:
Agrowtek
Share this product:

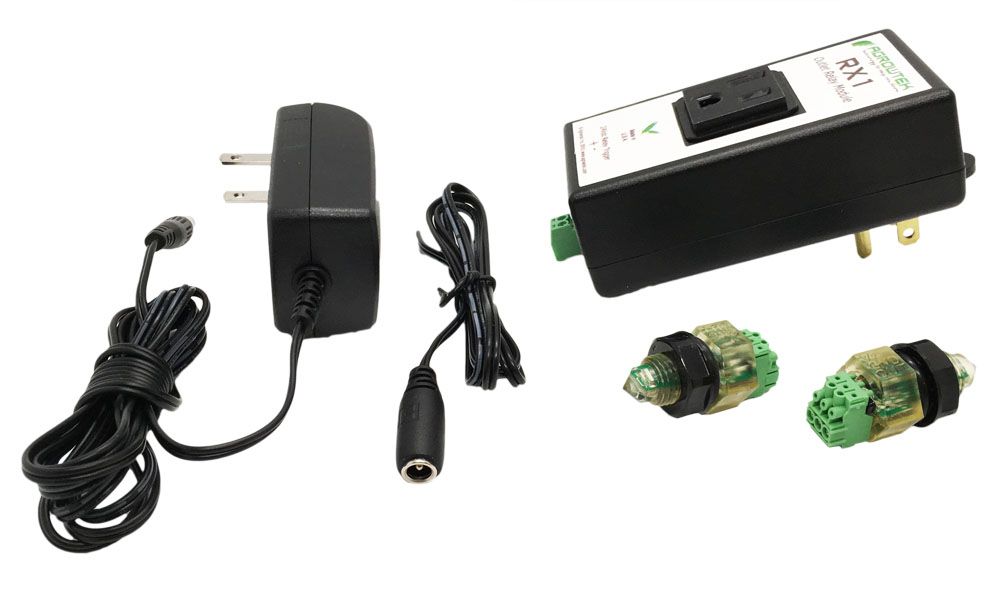

SXL-D-RX1 Drain System with Relay by Agrowtek
Electronic optical "liquid level control system" includes two liquid sensors for high and low "fill" or "drain" control of fluids in tanks, reservoirs, etc. Only power and a valve or relay is required to complete the level control system; no external controller required. Easy to wire and setup. Includes one standard and one latching sensor. Compatible with 5-24Vdc valves and relays. Available with optional VX1 water valve kit or RX1 outlet kit for direct operation of 120Vac pumps, valves and other equipment.
| Voltage Input | 5-24Vdc |
| Output Current | Max 1A (sourcing) |
| Current Consumption | 20mA per sensor |
| Mounting Thread | 1/4" NPT |
| Hex Size | 3/4" (19mm) |
| Body Material | Polysulphone |
| Temperature Range | -20 to 80°C (non-freezing) |
| Wire Gauge | 26 - 16 AWG |
