Agrowtek MX1 AC Reversible Motor Controller

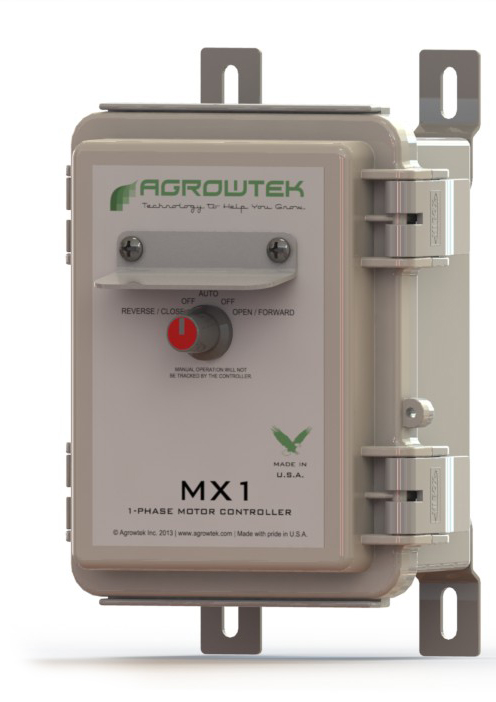

MX1 AC Reversible Motor Controller by Agrowtek

MX1 forward/reverse motor controllers allows Agrowtek's GC-Pro/XL control systems to directly operate AC or DC vent and shade motors up to 8Amps or 3/4HP.

Control opening and closing of vents and curtains with automatic control by wiring the MX1's input signal terminals to Agrowtek's controller outputs, or use the knob on the front of the MX1 to manually operate vent and curtain motors.

Operates on 24VDC and includes manual override switch for manual or automatic operation.

Includes terminals for external limit switches and piggy-back connection of multiple units from a single hard-wired 24Vdc power supply.

Specifications

• 24Vdc control signals (compatible with Agrowtek systems)
• 120V AC-to-DC wall adapter included
• MX1: 120VAC 8A / 3/4 HP rating
• MX1D: 30VDC 8A / 3/4 HP rating
• Polymer weather-resistant enclosure
• 2 Year Warranty

Applications

• Greenhouses & Growing Facilities
• Building Automation
• Industrial Automation
• OEM & Custom Applications
