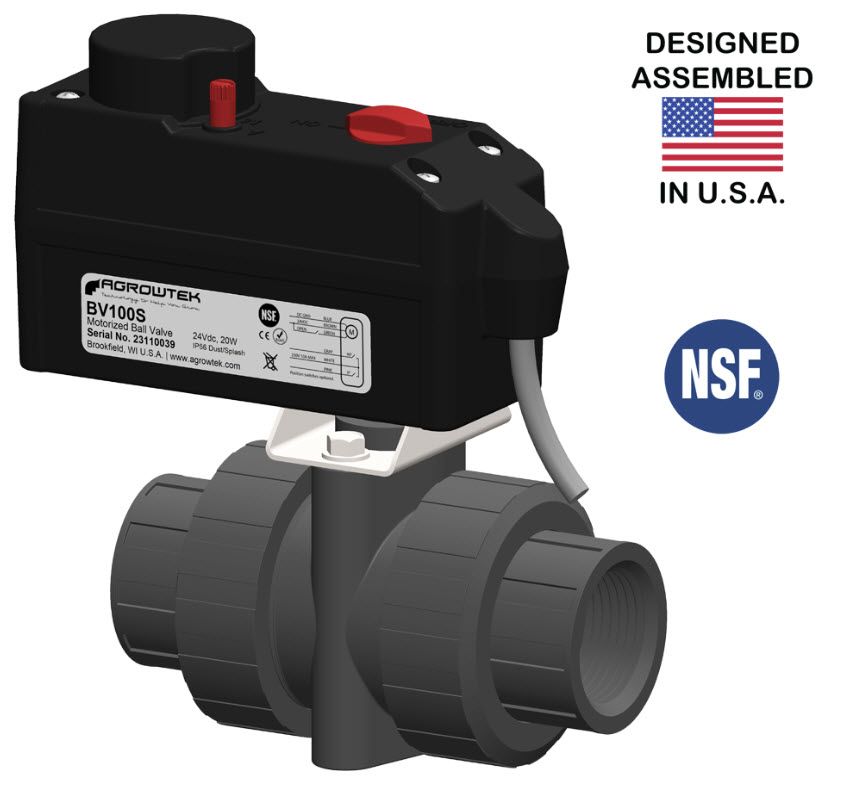

Agrowtek BV100 1 Inch Motorized PVC Ball Valve, Normally Closed

BV100 1 Inch Motorized PVC Ball Valve, Normally Closed by Agrowtek

These rugged, motor-actuated PVC ball valves are designed and assembled in the USA for demanding agricultural applications requiring irrigation control and facility water management. The BV100, BV125 and BV150 valves combine high-quality components for reliability that your crop can depend on.

The full-port PVC ball valve is a tru-union type with interchangeable flanges for either NPT threaded pipe, or solvent weld sockets.

High-torque Italian-made actuator from one of the largest actuator manufacturers in the world features an over-sized motor and heavy steel gearing for a long service life. Manual override knob allows operation even in the event of a power failure.

BV series valves are powered by 24VDC and do not have a minimum operation time. See manual for wiring instructions and requirements.

Features

• True Union Schedule 80 Ball Valve: Thread & Socket Weld Flanges
• Manual Operation Knob: Position Indicator
• 4 Second Rotation Time: No Minimum On-Time
• Position Sensing Switches: Monitor Valve Open or Closedr
• Stainless Steel Bracket: Made in USA
• Tough Industrial Grade Actuator: IP54, Made in Italy
• Designed & Assembled in USA
• 1-Year Warranty
