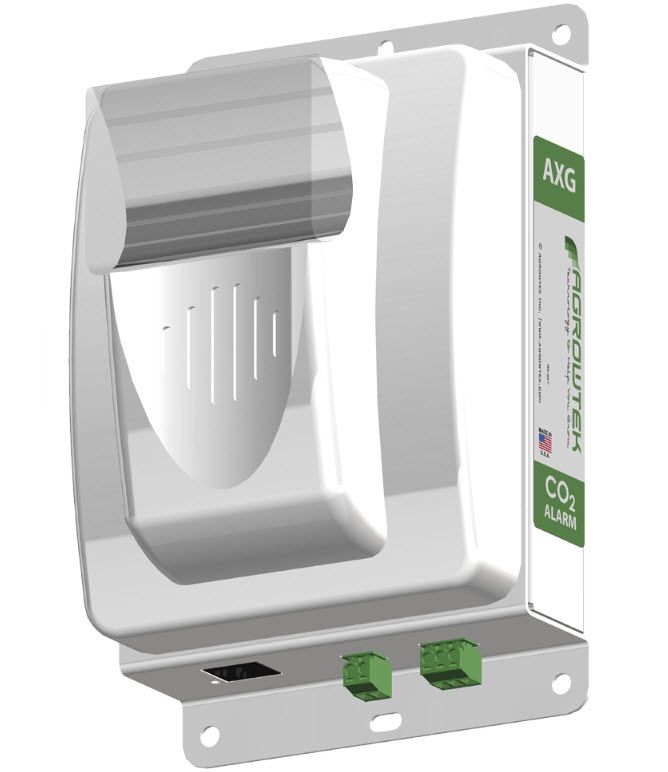

Agrowtek GrowControl™ AXG Horn Strobe Module

GrowControl™ AXG Horn Strobe Module by Agrowtek

GrowControl™ AXG modules are designed for use in grow facilities to indicate alarm conditions with an audible horn and visual strobe. Optional purge switch connects via two-wire cable to the input terninals on the bottom of the unit. When activated with the GrowControl™ GCX control system, exhaust will purge until the carbon dioxide concentration has reached a safe level and the alarm silences. Additional NO/NC dry-contact terminals for external device control or signaling.

Use with SXG CO2 gas sensors as part of a CO2 alarm system.

Connects to Agrowtek's GrowControl™ GCX Cultivation Controllers as part of a facility monitoring and control solution for alarm and exhaust control. AXG alarm modules can be located both inside and outside the grow space.

LX2 ModLINK connects GrowNET™ devices to RS-422/485 for MODBUS RTU protocol communication.

Hardware

• Audible Alarm: Chime, Whoop, Mechanical & 2400hz Tone
• Flashing Strobe: Candela 15 (ANSI/UL 1971) / 75 (ANSI/UL 1638)
• Switch Input: Activate Room Purge
• Aux. Dry-Contact Output: 5A / 24V | N.O. / N.C.

Features

• GrowNET™ Digital Communication Port
• MODBUS RTU via LX2 ModLINK
• Durable Powder-Coated Enclosure Wall Mount Flanges
• 1-Year Warranty
• Made in USA
