ALL-TEST Pro 33IND Electric Motor Tester with 115V Charger Adapter (No Software) - 50010
Item #:
AT-50010
Brand:
ALL-TEST Pro
Share this product:

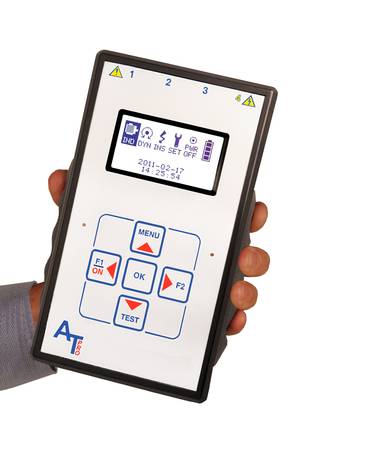

50010 ALL-TEST Pro 33IND Electric Motor Tester with 115V Charger Adapter (No Software)
The AT33IND instrument is the PERFECT TOOL for troubleshooting, inspection of incoming or stored motors before installation or repair and shows the complete condition of the Stator Windings, the Rotor, Contamination, Ground Fault and Connections.
This instrument presents an exciting break-through in off-line (de-energized) testing. Within minutes the operator can get a complete picture of the condition of the motor without having to stress-test the windings or use other more expensive or elaborate instruments, which can he difficult to operate and analyze captured data with.
No need to carry along hard to read user manuals. How to proceed is shown step by step on the screen and virtually anybody who can read can do the testing and understand the results.
Two tests in one. The instrument can be used in two modes: Static and Dynamic. Both quickly collect data in the auto mode and there is no need to operate a lot of difficult to understand buttons.
| Test Frequencies | 50, 100, 200, 400, 800 Hz |
| Test Value Static / Reference Value Static | 0.01 – 10000 ±1%, (Dimensionless calculated value) |
| Stator Test Dynamic | Repeatability ±1%, (of measured data and calculated deviations) |
| Rotor Test Dynamic | Repeatability ±2%, (of measured data and calculated deviations) |
| Resistance | 0.01 – 999 Ω ±1%, Max Resolution: 0.01 mΩ
Relative Accuracy "Phase to Phase" ± 0.1%
True 4-wire Kelvin measurement. (Includes automatic compensation for thermoelectric offset voltages) |
| Dissipation factor - DF (for frame and stator) | 1 – 100% measurement range 1 – 10% ±0.5 (C = 10 – 1000 nF) 10 – 30% ±1.0 (This specification is based on battery operation and USB not connected to PC) (Measured dielectric phase angle displayed as φ) |
| Capacitance (frame – stator) | 2 – 2000 nF measurement range 10 – 1000 nF ±3%, all other values ±5% (This specification is based on battery operation and USB not connected to PC) |
| Insulation Resistance | 0 – 999 MΩ @1000V, 0 – 500 MΩ @500V 1 – 100 MΩ ±3%, all other values ±5% |
| Enclosure | Material - Polycarbonate, UL94-V2 |
| Safety | According to IEC 61010-1 cat.III 1000V |
| Approval | CE |
| Keyboard | Sealed tactile touch, XL size keys |
| Connections | 3 x Motor input/output - push-pull
connectors 4-pole High Voltage
output - Ø
4mm safety jack PC communication - USB type B connector Charger input - 2.5mm diameter center pin DC-jack |
| Display | Graphic LCD, monochrome 128 x 64 pixels (3.1") Viewing Area=69 x 36.5mm, white LED backlight. |
| Batteries | 2 x LiION cells with ≥ 2100 mAH capacity |
| Temperature range storage | -20° C to +60° C (-4° F to +140° F) |
| Temperature range operating | -10° C to +50° C (+14° F to +122° F) |
| Humidity | 0-80% relative humidity, non-condensing |
| EMC | EN61000-6-4 (Emission) EN61000-6-2 (Susceptibility) |
| Instrument Specifications | Size: 126 x 218 x 51 mm (3.2"x8.6"x2") (WxLxH)
(basic enclosure size without minor protrusions) Weight: 0.7 kg (1.55 lb) |
| Shipping Specifications | Gross Size: 45.7x40.6x15.2 cm (18"x16"x6") (WxLxH) Gross Weight: 5.0 kg ( 9lb ) |
| AT33 IND Comes With | 3x Test Leads with custom Kelvin Clips 1x Test Lead with 4mm safety plug and MC "Dolphin" clip AC Battery Charger 115V or 230V Hard Case |
| Accessories NOT Included | Windows based software for test reporting and
trending (Windows XP/7 compatible) USB Cable 1m Soft Carrying Pouch for instrument and test leads |
