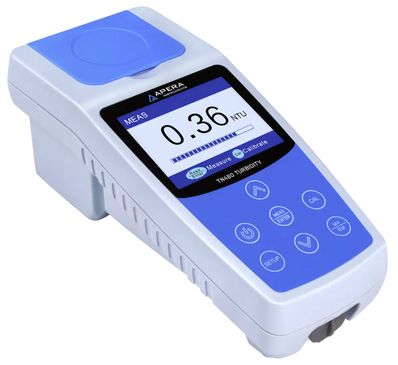

Apera TN480 Portable Infrared Turbidity Meter with GLP Data Logger, Compliant with ISO7027 - AI486
Item #:
AI486
Brand:
Apera Instruments
Share this product:
AI486 TN480 Portable Infrared Turbidity Meter with GLP Data Logger, Compliant with ISO7027 by Apera
Apera TN480 uses an infrared light source and 90° scattering method, which is compliant with the ISO 7027 method. The instrument is designed for water quality professionals, offering long-term reliability in high-accuracy turbidity measurement with an intuitive operating system, simple calibration, and GLP data management.
- The infrared light source is especially ideal for testing solutions with color.
- TruRead measurement mode automatically takes multiple consecutive readings, and calculate their average, minimum and maximum value, as well as displaying each set of data in a brief test report. TruRead is a much better way to determine the true turbidity of your samples, rather than relying on just one reading. It's especially suitable for sample solutions with rapid settling and continuous measurement changes.
- The kit comes with AMCO high-molecular polymer turbidity standard solutions (0, 20, 100, 400, 800 NTU), which are EPA approved primary standards that are safe, non-toxic and disposable, and have a guaranteed one-year shelf life. It is NIST traceable to particle size/distribution and optical density, and its inherent stability means it does not settle from suspension. Store the standards at room temperature. They must not be frozen.
- Zero turbidity error reminder: the instrument has zero-point calibration and zero-point error reminder to ensure high accuracy for low-turbidity solutions.
- Large TFT color screen with simple operation guide, supporting English, Spanish, and Chinese.
- 200 sets of data storage with USB data output to PC (Windows-based), real-time clock display, calibration date check, automatic power off, and low battery reminder.
- Everything comes in a rugged carrying case, including AMCO calibration solutions (0, 20, 100, 400, 800 NTU), 6 pieces of sample vials, USB cable, silicone oil, a microfiber wipe, PC-Link software flash drive, and user manual.
Measurement Method | 90° scattering measurement, ISO 7027 compliant |
Light Source | Infrared |
Measuring Range | 0 to 1000 NTU (FNU), automatic range switch 0.01 to 19.99 NTU(FNU) 20.0 to 99.9 NTU(FNU) 100 to 1000 NTU(FNU) |
Accuracy | ≤ ±2% of reading+ stray light |
Repeatability | ≤ ± 1% of reading or 0.02 NTU(FNU) (the greater of the two) |
Resolution | 0.01/0.1/1 NTU (FNU) |
Stray Light | ≤0.02 NTU (FNU) |
Calibration Standard | AMCO Polymer or Formazin Solution: 0, 20, 100, 400 and 800NTU (FNU) |
Detector | Silicon photovoltaic |
Measuring Mode | Normal measurement and TruRead measurement |
Data Storage | 200 groups |
Data Output | USB to PC |
Calibration Record | Calibration date and time |
Display | TFT color screen |
Sample Vial | Φ25x60 mm, high borosilicate glass with lid |
Sample Vial Volume | 18 ml |
Power supply | 3-AAA alkaline batteries |
Working Condition | Temperature: 0 to 50°C (32°F to 122°F) Relative humidity: 0 to 90% at 30°C, 0 to 80%at 40°C, 0 to 70% at 50°C, no condensation |
Instrument sealing grade | IP67 |
Certificates | ISO9001:2015 and CE |
Limited Warranty | 2 years |
Dimension and Weight | Meter: (90×203×80) mm/385g Test Kit: (310×295×110) mm/1.5kg |
