Kanomax Aerosol Monitor - AES-1000N
Item #:
AES-1000N
Brand:
Kanomax
Share this product:

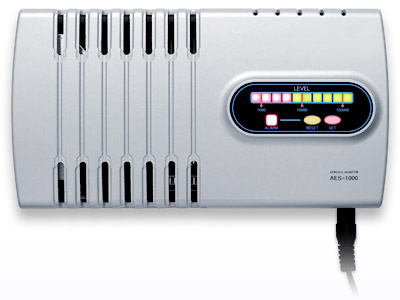

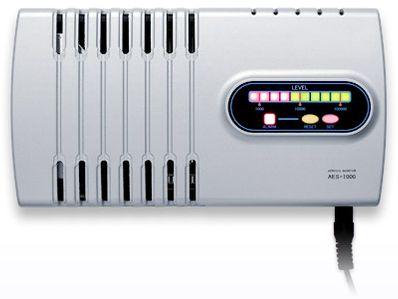

AES-1000N Aerosol Monitor by Kanomax
The Aerosol Monitor which has easy-to-read display, and link to Ethernet system, can materialize simplified monitoring of Particulates at multiple location.
Features:
- Stable and sensitive detection for Particulates of 0.5 microns and larger. Easy-to-read air cleanliness level, equivalent of ISO5 / Class 100 - ISO8 / Class 100,000.
- Unique air sampling method using "heater" to generate updraft, preventing choked flow. Suction pump is not necessary.
- Alarm comes on when the setting level goes beyond the required cleanliness, while monitor gives alarm signal output.
- Link to Ethernet system with purpose of monitoring at multiple location.
- Long life laser. 20,000 hours
- Compact and light, easy installation. Low cost
Applications:
- Any place where you need simplified cleanliness level monitoring, such as the gowning area of a cleanroom
Includes:
- Operation manual
- Mounting plate
- AC adapter
| Display | 10 x LED lights shows equivalent of Class 100 ~ Class 100,000 |
| Detection method | Light Scattering |
| Min. detectable size | 0.5 µm |
| Air Sampling method | Updraft airflow generated by built-in heater enables air sampling of approx. 0.26 gal per minutes |
| Cleanliness Class | From level of equiv. of ISO5 / Class 100 ~ ISO8 / Class 100,000 |
| Alarm Display | Alarm LED light comes on when reaching to setting level |
| Alarm Output | TTL open collector output in sync with alarm display |
| Interface | Ethernet x 1 port |
| Power Supply | DC12 V +/-10% 500mA |
| Operating Temp/Humidity | 0°C~40°C 30% RH~80% RH |
