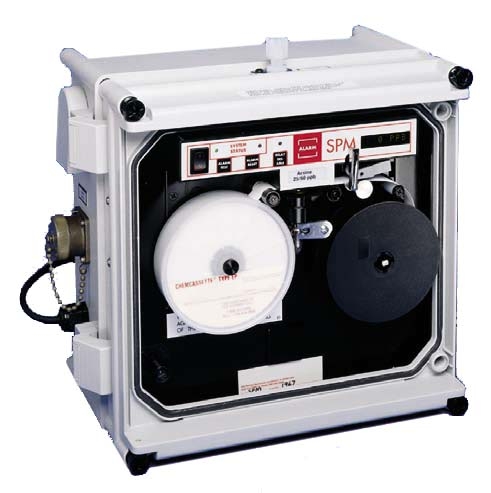

Honeywell Analytics SPM Z-Purged Unit - 870850

Honeywell Analytics SPM Z-Purged Unit - 870850

$7,508.00

SPM Single Point Monitor

Model SPM Toxic Gas Monitor - All versions of the Model SPM include calibration for one gas, dual-level alarms, LED Display, 4-20 mA isolated output and 10 amp relay contacts.

Advantages

  • Fast response monitor specific to target gas only
  • Gas sensitivity to ppb levels with physical evidence
  • Minimum maintenance and no dynamic calibration
  • Customized for harsh industrial environments
  • More than 50 gas calibrations available

Applications

  • Outdoor locations
  • Corrosive areas
  • Remote sampling areas
  • Gas storage areas
  • Survey work
  • Perimeter/ fencelines
  • Ventilation and exhaust systems

Options

  • Z-purge system
  • Duty cycle
  • ChemKey
  • RS422
  • Remote reset
  • Portable
  • Extended sample
  • Heater option (operate from -20°C to ±40°C)
SPM Specifications:
Detection Technique Chemcassette® Detection System
Alarm Point Dual level alarms typically set at 1/2 TLV and TLV
Response Time As fast as 10 seconds
Alarm Indication Local audio/visual alarms; remote capability optional
Signal Outputs SPDT concentration alarm relays; SPDT fault relay; 4-20mA; digital display
Relay Rating 120VAC @ 10A; 240VAC @ 5A
Operating Temperature Range 32° to 104°F; 0° to 40°C (basic unit); heating/cooling optional
Power Requirements 115/230 VAC 50/60Hz, battery operation optional
Enclosure NEMA 4X fiberglass (basic unit)
Dimensions 12"(H) x 12"(W) x 7”(D) (30.5 x 30.5 x 17.8cm) (basic unit)
Weight 6.6kg (14.5lb) (basic unit)

Detectable Gases Range:
Amines
Ammonia (NH3) 2.6-75.0ppm
Ammonia (NH3)-II 2.6-75.0ppm
Dimethylamine (DMA) 0.1-6ppm
n-Butylamine (n-BA) 0.4-12ppm
Methylene Dianiline (MDA) 3-60ppb
p-Phenylene Diamine (PPD) 2-60ppb
Toluene Diamine (TDA) 4-60ppb
Trimethylamine (TMA) 1.1-30.0ppm
Diisocyanates
(CHDI, HDI, HMDI, IEM, IPDI, MDI, NDI, PPDI, TDI, TMDI, TMXDI, XDI) 2-60ppb
Hydrazines
MMH* 3-30ppb
N2H4* 20-300ppb
UDMH* 5-30ppb
Hydrides
Arsine (AsH3) 15-150ppb
Diborane (B2H6) 31-300ppb
Disilane (Si2H6) 1.5-15ppm
Germane (GeH4) 141-600ppb
Hydrogen Selenide (H2Se) 20-150ppb
Phosphine (PH3) 32-900ppb
Silane (SiH4)* 0.5-15ppm
Stibine (SbH3) 20-300ppb
tert-Butylarsine (TBA) 15-150ppb
tert-Butylphosphine (TBP) 60-900ppb
Hydrogen Cyanide (HCN) 1.1-30.0ppm
Hydrogen Sulfide (H2S)* 1.1-30.0ppm
Mineral Acids
Hydrogen Bromide (HBr)* 0.3-9.0ppm
Hydrogen Chloride (HCI)* 0.5-15.0ppm
Hydrogen Flouride (HF) 0.6-9.0ppm
Hydrogen Iodide (HI) 0.3-9.0ppm
Nitric Acid (HNO3) 0.2-6.0ppm
Sulfuric Acid (H2SO4) 26-750ppb
Oxidizers
Bromine (Br2) 11-300ppb
Chlorine (Cl2) 0.05-1.5ppm
Chlorine (Cl2) -II 0.05-1.5ppm
Chlorine Dioxide (CI02) 11-300ppb
Hydrogen Peroxide (H2O2)* 0.1-3ppm
Nitrogen Dioxide (NO2)* 0.3-9.0ppm
Ozone (O3) 31-300ppb
Phosgene (COCI2)* 11-300ppb
Sulfur Dioxide (SO2)* 0.2-6.0ppm
