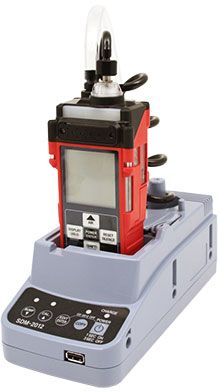

RKI Instruments SDM-2012 Single Point Calibration Station for GX-2012 and Gas Tracer with AC Adaptor, Flash Drive, USB Cable, Tubing & Installation CD - 81-SDM2012-01
Item #:
81-SDM2012-01
Brand:
RKI Instruments
Share this product:
81-SDM2012-01 SDM-2012 Single Point Calibration Station for GX-2012 and Gas Tracer with AC Adaptor, Flash Drive, USB Cable, Tubing & Installation CD by RKI Instruments
RKI's new SDM-2012 calibration station for the GX-2012 is now available with advanced features for charging, calibration, & bump testing. Once you power up the GX-2012 inside the SDM-2012 calibration module, the GX-2012's display will indicate whether it's transmitting data, bump testing, calibrating, as well as the results of the bump test or calibration.
Stand Alone Station
The SDM-2012 is a versatile maintenance tool that automates the service of a GX-2012 portable gas monitor. This docking station can be used as a stand alone device for charging, calibration and bump testing, with all records stored automatically for future upload to a PC via USB flash drive (PC software and flash drive included).
Multi Module System
The SDM-2012 can also be connected to a PC for automated calibration bump testing and archiving of datalog data from GX-2012 instruments. Up to ten SDM-2012 can be connected simultaneously using USB cables and the SDM-2012 includes connections for one or two calibration gas cylinders.
Stand Alone Station Features
- Stand-alone station (no PC Required)
- Charging (Li-Ion Battery Pack)
- Calibration
- Bump Test
- Save Bump Test and Calibration records
- Bump test and calibration records copy to USB jump drive
- Includes PC software for viewing/archiving bump test and calibration records
Multi Module System Features
- Multiple modules connected to a PC (10 max)
- Charging
- Calibration
- Bump Test
- Configure GX-2012 parameters
- 2 Calibration gas ports
- Archive Bump Test and Calibration records
- Archive data to network location
- Software controlled data retrieval
- Automatic calibration/bump test option
- Windows 7 compatible
*Please note we can only ship RKI products to customers within the United States
| Input Power | 12 VDC NOTE: AC Adapter with 100 - 240 VAC, 50/60 Hz, 0.6A input and 12 VDC, 1.2A output provided as standard. |
| Environmental Conditions | For Indoor Use Only -10° C to 40° C, below 80% Relative Humidity, Non-Condensing |
| Applicable Instruments | GX-2012 and Gas Tracer |
| Maximum Number of Records Saved | 200 (stand-alone) |
| Number of Calibration Gas Cylinders | Up to two calibration gas cylinders per bump test or calibration at a time |
| Standard Accessories | AC Adapter USB Flash Drive Single Module Data Viewer Software SDM Docking Station PC Controller Software Inlet Air Filter Instruction Manual 10 Foot Long Exhaust Tube Two 3 Foot Long Tubes for GAS 1 and GAS 2 Fittings 3 T-Fittings for PC Controlled Configuration USB Cable, Type A to Type B |
