RKI Instruments RI-85 Hand Held Infrared CO2 Monitor, 0 -10,000 PPM, Sample Draw with Internal Pump, Includes Alkaline Batteries, Coiled Hose, Probe, and Vinyl Cover - 73-0570RK

Item #:
73-0570RK
Brand:
RKI Instruments
RKI Instruments RI-85 Hand Held Infrared CO2 Monitor, 0 -10,000 PPM, Sample Draw with Internal Pump, Includes Alkaline Batteries, Coiled Hose, Probe, and Vinyl Cover - 73-0570RK
$1,522.50
Qty
Send This Page to a Friend

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us
Share this product:
RKI Instruments RI-85 Hand Held Infrared CO2 Monitor, 0 -10,000 PPM, Sample Draw with Internal Pump, Includes Alkaline Batteries, Coiled Hose, Probe, and Vinyl Cover - 73-0570RK

RKI Instruments RI-85 Hand Held Infrared CO2 Monitor, 0 -10,000 PPM, Sample Draw with Internal Pump, Includes Alkaline Batteries, Coiled Hose,...

$1,522.50

73-0570RK RI-85 Hand Held Infrared CO2 Monitor, 0 -10,000 PPM, Sample Draw with Internal Pump, Includes Alkaline Batteries, Coiled Hose, Probe, and Vinyl Cover by RKI Instruments

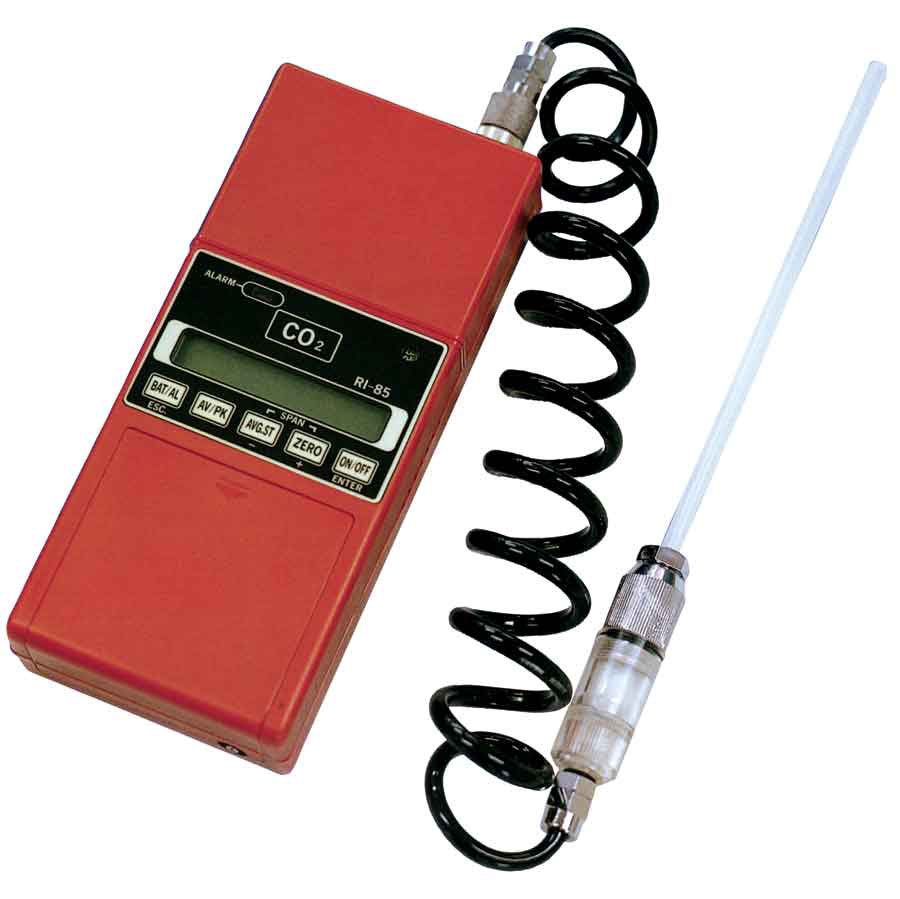

This Model RI-85 is a compact, lightweight portable CO2 monitor with an Infrared (NDIR) type sensor. This sensor provides fast and accurate detection of CO2 levels from 0 to 10,000 ppm. An internal pump is utilized for continual sampling, and the unit operated for 12 hours from one set of batteries. Microprocessor control provides average readings over a selected time period, and also can display the peak value detected.

Features

  • Microprocessor controlled
  • Instantaneious, Peak, and Average values provided
  • Compact and Lightweight
  • Audible and visual alarms
  • Internal sample drawing pump
  • LCD digital display with backlighting
  • Recorder output signal (0-1V linear)

Application

  • Indoor air quality CO2 level testing
  • Safe CO2 breathing levels in plants or factories
  • Leak checking on CO2 fire extinguisher equipment
  • Check before intering after CO2 extinguisher use.
  • Exhaust gas leak from combustion appliances in homes or plants

*Please note we can only ship RKI products to customers within the United States

Detection principle Non-Dispersive Infrared Detection (NDIR)
Measuring gas Carbon dioxide (CO2) in air
Measuring range 0-10,000 ppm
Resolution 10 ppm/digit from 0 - 2,000ppm, 25 ppm/digit from 2,000 - 5.000 ppm, 50 ppm/digit from 5,000 - 10,000 ppm
Sampling method Sample-drawing with internal pump
Repeatability ± 3% F.S. (with constant conditions).
Alarm display Audible and visual alarms (non-tatching).
Alarm point Any one level selection of 1,000 ppm. 5,000 ppm, or OFF
Response time Within 15 seconds to 90% response.
Ambient temperature and humidity -10 ~ +40°C,(14-104°F), less than 90%RH (Non-condensing).
Power source AA size dry battery x 4 pcs.
Continuous operation Approx. 12 hours (Alkaline batteries, no alarms or no illumination, room temp.).
Dimensions and weight Approx. 85mm(W) x 190mm(H) x40mm(D). 500gr.
Approx. 3.5"(W) x 7.8"(H) x 1.6"{D). 1.1 Ib.
Display Current reading, Average value, or Peak reading. (Pushbutton Select).
Average value time Selected from 1 minute, 3 minutes, or 15 minutes
External output signal 0 - 1 V DC linear output
Accessories Carrying case..1
Spiral tube(1m)..1
Gas sampling probe..1
Absorption tube for zero adjust..1
Dry battery..4
Alkaline AA batteries..4
Optional accessories Gas Cylinders for zero and span calibration
Sample bag
Absorptive agent for zeroing
Jack for external output.
