RKI Instruments OX-62B Remote Type Oxygen Detector with Remote Sensor on 10 Meter Cable - 72-0020RK
Item #:
72-0020RK
Brand:
RKI Instruments
Share this product:
72-0020RK OX-62B Remote Type Oxygen Detector with Remote Sensor on 10 Meter Cable by RKI Instruments

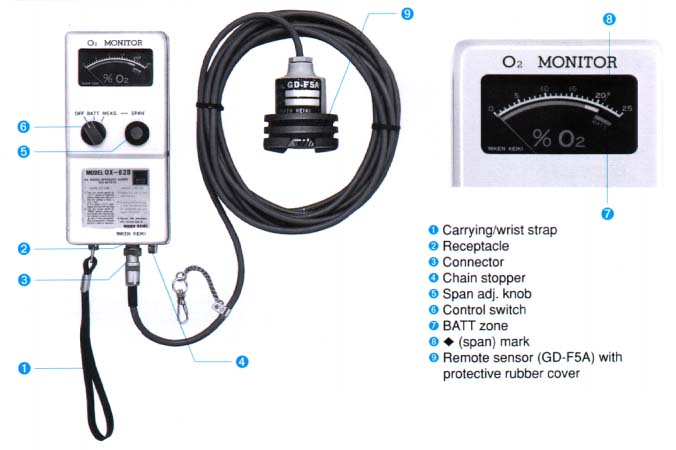

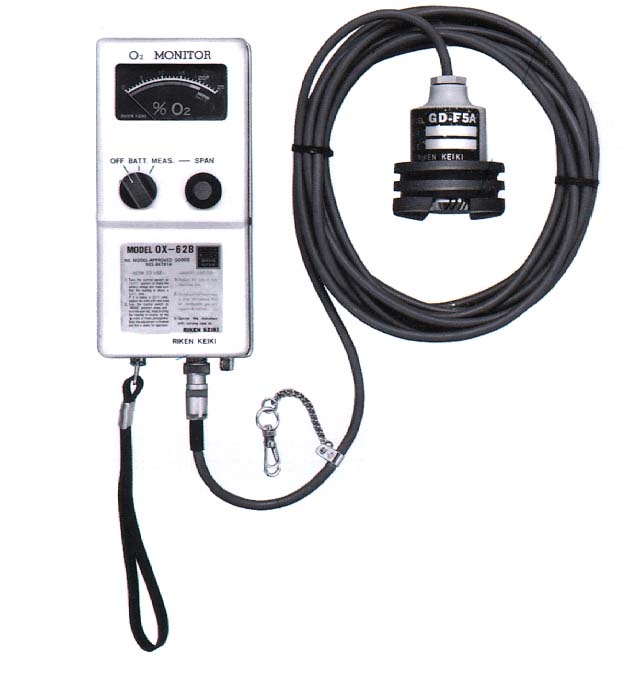

Intrinsically Safe Model OX-62B, remote sensor type, provides the meter scale graduated 0~25%. The sample gas is diffused into the remote sensor by static diffusion. Optional length of remote sensor cable assures high accurate measurement at high depth of vessels and/or manholes without approaching hazardous zone. The OX-62B is convenient model for determination of oxygen deficiency at any hazardous area.
Features
- Intrinsically safe 3aG4 (No. 33362) in Japan & drip proof
- Approved by NK (NK register of shipping in Japan) and HK (Ship equipment inspection society of Japan)
- Remotes sensor is protected against the shock with protective sensor cover
- Light weight, simple to use
- Continuous operation for approx. 70 days (1680 hrs) with alkaline battery
*Please note we can only ship RKI products to customers within the United States
| Principle | Electrochemical cell |
| Sampling method | Diffusion sampling |
| Remote sensor type | |
| Range | 0 ~ 25% oxygen content |
| Accuracy | Better than ±0.7% by volume of indication value at constant temp. (Complies with JIS T-8201) |
| Operating temp. | -10°C ~ +40°C |
| Power source | Dry cell (std.) x 2 pcs or Ni-Cd battery (option) x 2 pcs |
| Battery life | Mangenese dry cell - 40 days minimum, Alkaline battery - 70 days minimum, Ni-Cd - 20 days minimum |
| Dimensions | Indicator 83(W) x 177(H) x 40(D)mm |
| Weight | 0.9kg (Incl. sensor & cord) |
| Explosion proof | Intrinsically safe. 3aG4 (No. 33362) in Japan & drip proof |
| Life expectancy of the sensor | Above 24 months |
| Warranty | 1 year material & workmanship |
