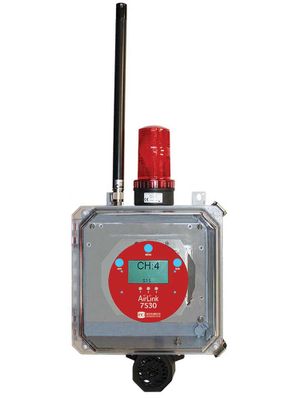

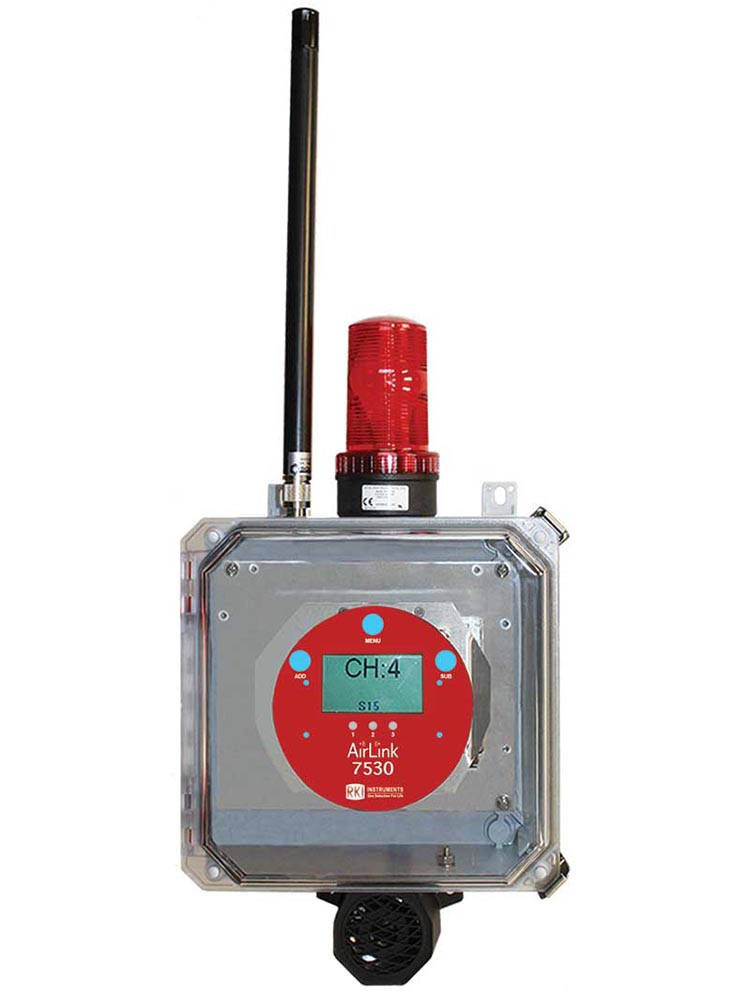

RKI Instruments AirLink 7530 Relay Module, 32 wireless channels with 100-240 VAC power, 2.4 GHz radio, non explosion proof - 66-7530-2N-A

66-7530-2N-A AirLink 7530 Relay Module, 32 wireless channels with 100-240 VAC power, 2.4 GHz radio, non explosion proof by RKI Instruments

The AirLink 7530 Relayer is a 32-Channel Gas Alarm System with 3 Relays that can monitor up to 32 Wireless gas detectors simultaneously. Three relays can be configured to activate up to the full scale reading reported and set to be either latching or non-latching. Housed in a NEMA 4X non-explosion proof enclosure allows for quick, easy installation while maintaining a high level of ruggedness for safety.

Features

• 32 Channel wireless relays: Contains 3 relays that can be activated by up to 32 remote wireless sensors
• Radio options: 900 MHz radio or 2.4 GHz Standard
• 12 to 35 VDC operating voltage with optional AC power supply
• Graphical LCD with LED backlight
• Operating temperature range of -40°C to +70°C
• Push button interface (ADD, MENU, SUB) with 3 corresponding magnetic, non intrusive switches
• Programmable alarms: 3 configurable alarm set-points; Set points - 3 red alarms; Indicators- 3 dry-contact relays (4 amps max per relay)
• Output options: Wet contact fault DC fault terminal, relay 3 can optionally be configured as a fault relay
• NEMA 4X Fiberglass non explosion proof enclosure with clear lid
• Optional strobe and horn attached
• 1 Year limited hardware warranty

*Please note we can only ship RKI products to customers within the United States
