RKI Instruments M2, Carbon Monoxide (CO) 0 - 300 ppm Sensor/Transmitter with J-Box, CSA Version - 65-2616RK-05
Item #:
65-2616RK-05
Brand:
RKI Instruments
Share this product:
65-2616RK-05 M2, Carbon Monoxide (CO) 0 - 300 ppm Sensor/Transmitter with J-Box, CSA Version by RKI Instruments
RKI Instruments uses the latest cutting edge technology when developing transmitters and sensors. Its dedication to workplace safety and reliable safety solutions is unparalleled. The M2 Stand Alone Transmitter utilizes state of the art sensor cell technology to integrate workplace safety with the industry's more advanced transmitter technologies.
M2 Stand Alone Transmitter
The M2 Stand Alone Transmitter is operational with or without a controller and is available in two forms: explosion proof and non-explosion proof. The unit has a backlit screen for a direct digital readout, and a user friendly setup with push buttons and easy to read LCD menus. The advanced technology transmitter can function as an independent standalone system or as part of an integrated detection and transmission system. Using state of the art technology, the transmitter uses a magnetic want technique for performing non-intrusive calibration. For optimal stability and accurate readings, the unit provides an automatic zero drift correction feature. This also reduces the need for adjustments due to sensor aging.
The M2 Stand Alone Transmitter is available for LEL, H2S, CO, PPM, HC, CO2, CI2, NH3, SO2, HCN, and more. The unit also features an infrared sensor for CO2 and combustible gases. With 2 fully programmable alarms and a fail relay, the visual color coded LED alarms are reliable and customizable to meet specific needs.
Advanced sensor technology
The state of the art sensors are long lasting with a lifespan typically over two years. Sensor construction is rated Class I, Division 1 groups B, C, and D for flammables, CO, H2S, O2, and CO2. The sensors are rated Class I, Division 2 for all other toxic gases. Depending on the gas, the sensors will operate through a catalytic, galvanic cell, electrochemical, or infrared design. The plug in nature of the sensors allows for a quick and tool free onsite replacement.
Specifications
Each transmitter features 2 to 3 years of life with normal service. The explosion proof LEL H2 specific transmitter has 3 to 5 years with normal service, and the explosion proof carbon dioxide, methane, and hydrocarbons feature over 5 years of life with normal service. The explosion proof transmitters are also water repellant. Each device is approximately 8.5”H x 5.2”W x 4.5”D and features an alphanumeric display with a backlight. The screen displays 8 characters per line with 2 lines for gas concentration readouts.
Optional Accessories

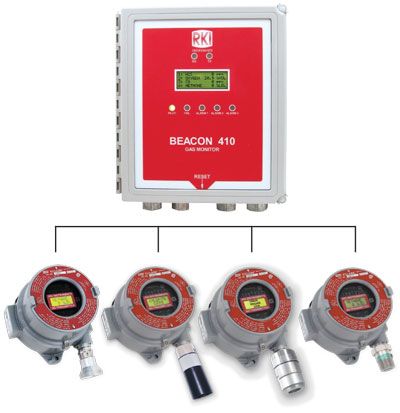

The M2 Stand Alone Transmitter has a variety of optional accessories available including calibration adaptors, flow through adaptors, remote horns and lights, calibration kits, battery backups, splash guards, air aspirator adaptors or panels, and dataloggers. The transmitters are directly compatible with Beacon 110, 200, 410, and 800 controllers.
*Please note we can only ship RKI products to customers within the United States
LEL General Purpose |
LEL H2 Specific |
O2 Oxygen |
H2S Hydrogen Sulfide |
CO Carbon Monoxide |
CO2 Carbon Dioxide |
CH4 Methane |
HC Hydrocarbons |
||
Part# | 65-2610RK |
65-2611RK |
65-2613RK-05 |
65-2615RK-05 |
65-2616RK-05 |
65-2630RK-02 65-2630RK-03 65-2630RK-05 65-2630RK-10 |
65-2619RK-CH4 65-2628RK-CH4 |
65-2619RK-HC |
|
65-2610RK-05 |
65-2611RK-05 |
||||||||
Sensors | Catalytic |
Galvanic cell |
Electrochemical |
Infrared |
|||||
Measuring Ranges | 0 - 100 % LEL |
0 - 25.0% Vol. |
0 - 100 ppm |
0 - 300 ppm |
02 -03 -05 -10 |
0 - 5000 ppm
0 - 5% Vol. 0 - 50% Vol. 0 - 100% Vol. |
0 - 100% LEL 0 - 100% Vol. |
0 - 100% LEL |
|
Resolution | 1% LEL |
0.1% Vol. |
1 ppm |
20 ppm / 0.1% Vol |
1% LEL |
||||
Lower Detectable Limit (LDL) |
2% of full scale |
0.1% Vol. |
2% of full scale |
||||||
Response Time (T-90) | 35 Seconds or less |
30 Seconds or less |
|||||||
Life Expectancy | 2 to 3 years with normal service |
3 to 5 years with normal service |
2 to 3 years with normal service |
5 years plus with normal service |
|||||
Accuracy (which ever is greater) |
± 5% of reading or ± 2 % LEL |
± 0.5% O2 |
± 5% of reading or ± 2 ppm H2S |
± 5% of reading or ± 5 ppm CO |
± 5% of reading or ± 2 % of full scale |
||||
Weather Resistant | Patented water repellent sensor coating |
||||||||
Alarms | |||||||||
Alarm Settings | Two fully programmable alarm set points, increasing / decreasing, latching /
self-resetting, on delays, off delays, normally energized or de-energized |
||||||||
Alarm Indication | Visual LEDs. Alarm 1, Amber; Alarm 2, Red; Fail, Red |
||||||||
Relays | 5 amp form ‘C’ contacts for alarm 1, alarm 2, and fail |
||||||||
Physical | |||||||||
Dimensions | Height: 8.5” (215 mm), Width: 5.2” (132 mm), Depth: 4.5” (114 mm) |
||||||||
Display | Alphanumeric display with backlighting. 8 characters per line; 2 lines for gas concentration readout, plus user-friendly calibration and setup |
||||||||
Enclosure | Explosion proof for Class I, Div 1, Groups B, C, D. |
||||||||
Enclosure Rating | NEMA 4X, explosion proof, watertight, cast aluminum with o-ring seal and epoxy powder coating |
||||||||
Controls | Magnet used for calibration functions. Calibrates without opening the housing. Internal push-button controls also available for calibration and setup |
||||||||
Operating Environment | |||||||||
Operating Temperature |
4°F to 122°F -20°C to 50°C |
||||||||
Relative Humidity | 5 - 95% RH non-condensing |
||||||||
Location | Indoor or outdoor. Explosion proof for Class I, Div. 1, Groups B, C, D. |
||||||||
Operating Voltage |
19 VDC - 30 VDC, 12 VOC versions available |
||||||||
Outputs | |||||||||
Analog | 4-20 mA signal, into 500 ohms impedance max, corresponding to 0 - full scale |
||||||||
Digital | Modbus RTU output standard, fully configurable, 2-wire RS-485, 1200 to 19.2k baud |
||||||||
Approvals | 65-2610RK-05 UL |
65-2611RK UL |
CSA NRTL |
C UL US |
|||||
65-2610RK-05 C CSA US |
65-2611RK-05 C CSA US |
||||||||
Controllers | Compatible with all RKI Beacon controllers, as well as most DCS / PLC systems: Beacon 110, Beacon 200, Beacon 410, Beacon 800, and Pioneer 4W and Pioneer 16R |
||||||||
Warranty | One year material and workmanship |
Part Number With J-Box |
Gas |
Range |
Resolution |
65-2618RK-ASH3 |
Arsine (ASH3) |
0 - 1.5 ppm |
0.01 ppm |
65-2618RK-NH3 |
Ammonia (NH3) |
0 - 75.0 ppm |
0.1 ppm |
65-2618RK-PH3 |
Phosphine (PH3) |
0 - 1.00 ppm |
0.01 ppm |
65-2618RK-HCN |
Hydrogen Cyanide (HCN) |
0 - 15.0 ppm |
0.1 ppm |
65-2618RK-SO2 |
Sulfur Dioxide (SO2) |
0 - 6.00 ppm |
0.01 ppm |
Number
of
Wires to Controller |
Maximum Distance to Controller |
|||
18 AWG
wire |
16 AWG
wire |
14 AWG
wire |
||
M2 Transmitter | 3 |
2500 ft. |
5,000 ft. |
8,000 ft. |
