Jenco 1/4 DIN Panel Mount pH Single Parameter Analyzer - 6308PT

Item #:

6308PT

Brand:

Jenco

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us

Share this product:

Description

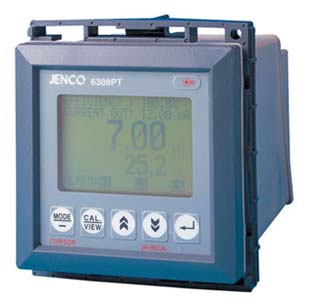

6308PT 1/4 DIN Panel Mount pH Single Parameter Analyzer by Jenco

1/4 DIN panel mount pH single parameter analyzer with electrode efficiency display function. Features pH linear or antilog transmitter output, hysteresis control and uninterrupted operation during pH calibration. Has one 4-20mA output, 5 relays and a RS-485 communications interface. Graphical display. 115/230V AC. CE Approved.

Bright, graphical LCD display, 1.5 x 2.25
Simultaneous measurement and analysis
1/4 DIN watertight, ip65 rated enclosure
Reversible & isolated 4 to 20ma output with adjustable bandwidth
Continuous controller / relays operation during calibration
4-digit password security protection
Programmable set point hysteresis
Automatic temperature compensation
CE approved
Built in ISO9001 certified facility
Membrane keypad with audio feedback
Power down, non-volatile memory backup
RS-485 output
Multiple spst on/off relays
Embedded self diagnostic program
High 50/60 hz noise rejection

Specifications

Range	pH: -2.00 to 16.00 ORP: -10.0 to 120 °C
Resolution	pH: 0.01 pH ORP: 0.1 °C
Accuracy	pH: 0.1% ± 1 lSD ORP: ±0.3 °C
Temperature compensation range	-10.0 to 120.0 °C
Buffer recognition	4.01,7, 10.01 / 4.00,6.86, 9.18
Buffer temperature range	0 to 60.0 °C
Electrode slope compensation	±30% of ideal slope
Electrode offset compensation	±100 mV
Input impedance	Greater than 10 exp(13) ohms
Calibration auto end point sensing	Yes
pH	2 programmable high or 2 low
Temperature	1 programmable high or 1 low
Control type	On/off
Relay output (resistive load only)	5 amps at 115 VAC 2.5 amps at 230 VAC
Relay set point hysteresis	User programmable
Type	Isolated 4 to 20 mA
Range	Selectable zero, & span
Accuracy	±0.02mA
Isolated voltage	500 VDC
Maximum load	500 w
ATC sensor	Thermistor 10 kilo ohms at 25 c
Security protection	4 digit password
Keypad	Audio feedbackup
Communication	RS-485
Pre-amplifier voltage	±5 VDC,20mA max output
Power source	115/230 VAC, 50/60hz
Dimensions	1/4 DIN, depth 148mm
Weight	950 gm
