Bacharach 6203-2003 MVR-300 Variable Refrigerant Flow Gas Detector, R410A Hilton Version

Item #:

6203-2003

Brand:

Bacharach

View All

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us

Share this product:

Description

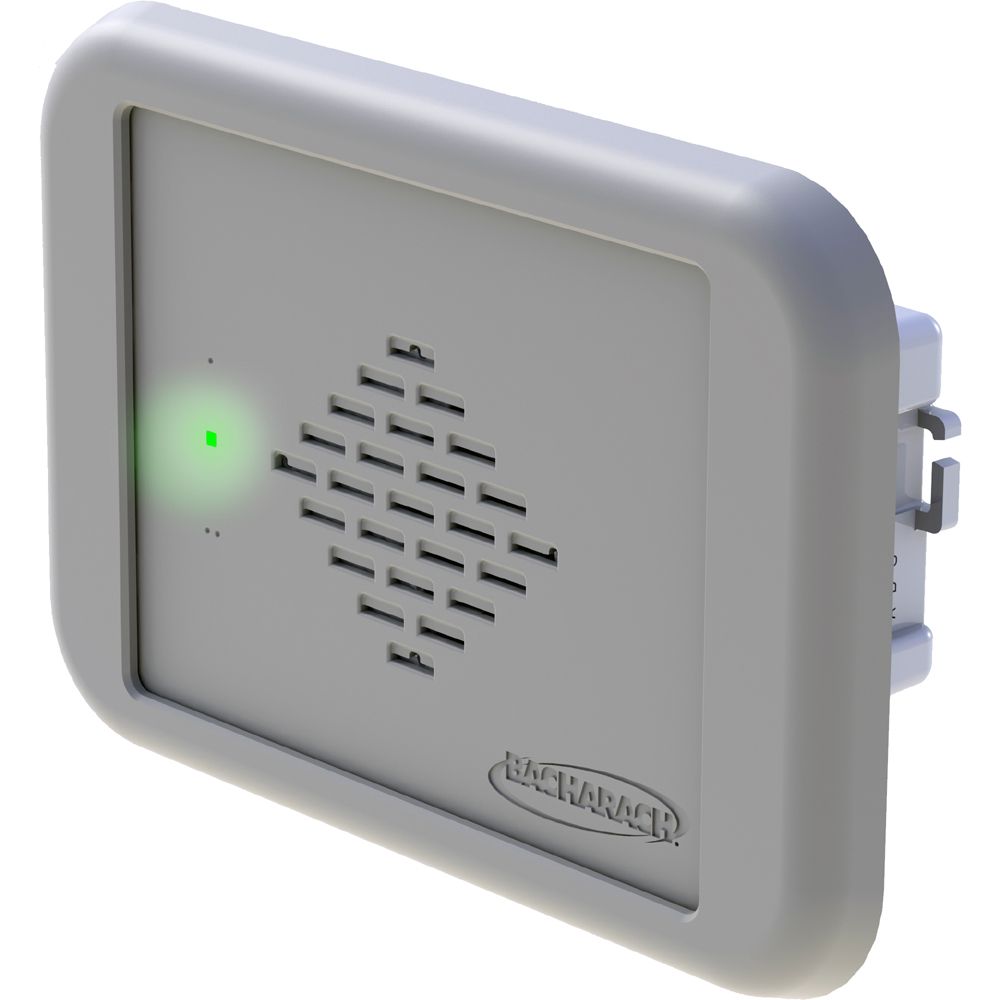

6203-2003 MVR-300 Variable Refrigerant Flow Gas Detector, R410A Hilton Version by Bacharach

The MVR-300 detector is specifically designed to provide continuous monitoring for refrigerants associated with high-efficiency, high volume refrigerant cooling and heating systems, such as VRF/VRV (Variable Refrigerant Flow/Variable Refrigerant Volume) sytems. Typical applications include hotels, dormitories, hospitals, office buildings, and apartment buildings.

The MVR-300 audible and visual alarms alert occupants and simultaneously communicate to Building Management Systems/Building Automation Systems (BMS/BAS). Two on-board relays can be used to close valves, activate alarm devices and exhaust fans or initiate emergency calls to rescue teams.

The on-board Modbus RTU interface provides real-time information about refrigerant concentrations, status and settings. It also enables custom configuration of the MVR-300 to any application specific requirements using multiple Modbus registers. The MVR-300 is designed for easy installation and simple maintenance.

The MVR-300 is compatible with MVR-SC Controller.

Features

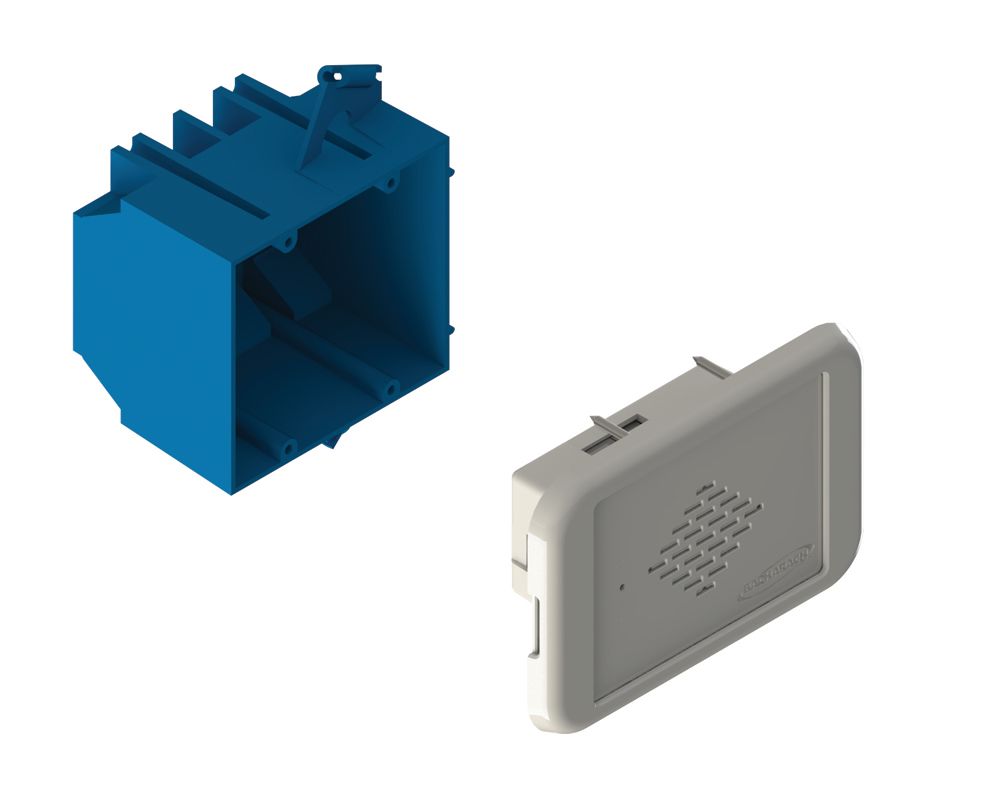

Fits in standard electrical boxes
Low profile/Flush mount
Two relays and Modbus Communications
Alarm options including: LED, buzzer, two levels, configurable delay and failsafe
Refrigerant specific sensor
Self diagnostics and simple field calibration

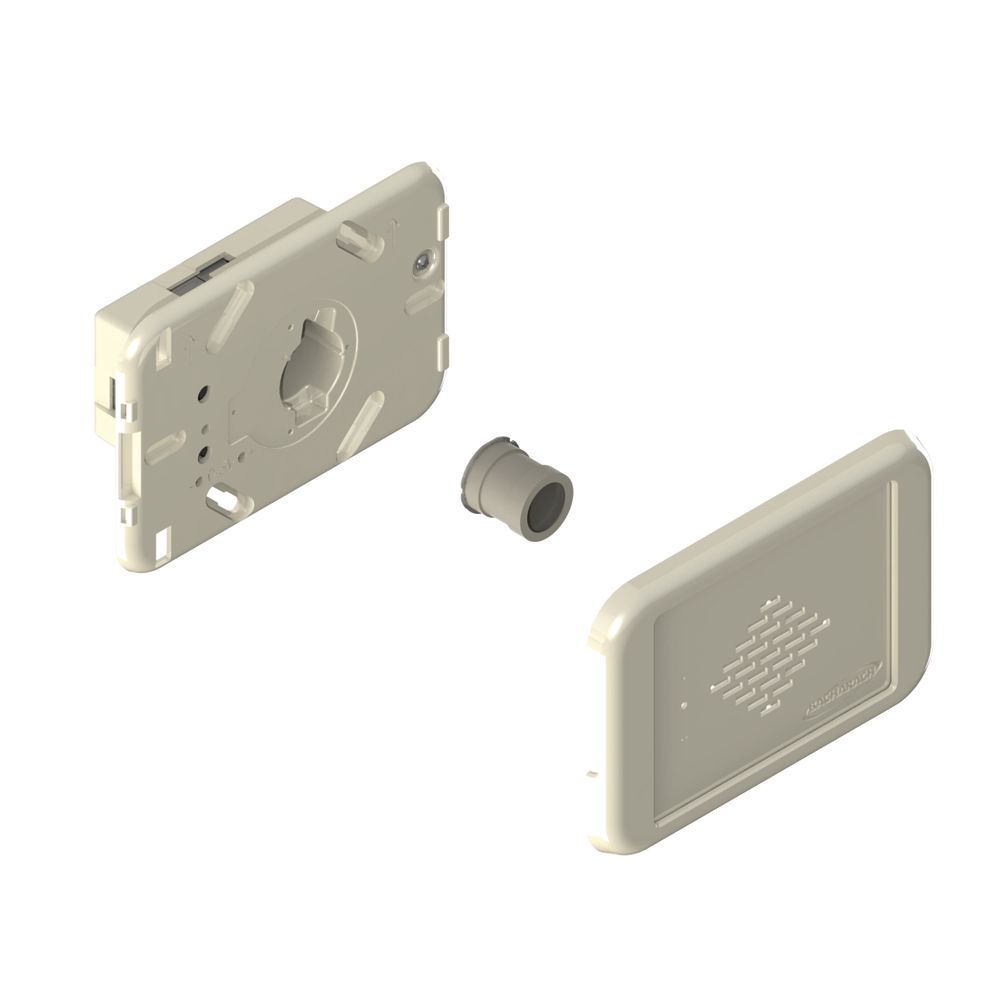

Unique plug-in field replaceable pre-calibrated sensor

Benefits

Easy to install
Aesthetically non-intrusive appearance
Notify building management & initiate counter measures
Alert occupants and remotely inform building management of alarm location for rapid response as required
Enhances safety and minimizes refrigerant loss
Easy to maintain
Low cost of ownership

Specifications

SPECIFICATIONS	DESCRIPTION
Detectable Gases	R-410a, R-407c, R-404a, R-32
Measuring Ranges	2,500 ppm, 5,000 ppm, 10,000 ppm
Housing	Flush mount, white ABS, Fits in most 2 gang electrical back boxes
Size (L x W x D, approx.)	6" x 4.1" x 1.75" (150 x 105 x 45 mm) including bezel
Protection	Indoor: IP40, NEMA 1
Weight (approx.)	8 oz (230 g)
Power	100 to 240 VAC, 50/60 Hz, 4 W max
Indicator	Tri-color LED: green, amber, red
Buzzer	80 dB at 12" (30 cm)
Relay	Two SPDT: low alarm and high alarm / fault, normal or fail-safe, configurable
Alarm Delay	0 to 15 minutes, configurable 0, 5, 10, 15
Wiring	Power: 3-core cable, 14 to 20 AWG (0.5 to 2.0 mm²) Relay: 3-core cable, 18 to 20 AWG (0.5 to 1.0 mm²) Modbus: 2-core twisted pair shielded cable 18 to 24 AWG
Modbus RTU	Baud Rate: 9,600 or 19,200, configruable
Environmental Conditions	Operating Temperature: 32 to 120 °F (0 to 50 °C) Storage Temperature: 5 to 100 °F (-20 to 40 °C) Humidity: 5 to 90% RH, non-condensing Pressure: 23.6 to 32.5 inch of Hg (800 to 1,100 hPa)
Elevation	0 to 6,560 ft. (2,000 m) altitude
Sensor Life	2 year minimum life with recommended 6 month testing and/or recalibration
Approvals	CE, UL/SCA/IEC/EN 61010-1
REFRIGERANT	P/N	LOW ALARM	HIGH ALARM	RANGE
R-410a	6203-0001 6203-0002 6203-0003	500 ppm 1,000 ppm 2,000 ppm	2,000 ppm 2,000 ppm 4,000 ppm	2,500 ppm 5,000 ppm 10,000 ppm
R-407c	6203-0011 6203-0012 6203-0013	500 ppm 1,000 ppm 2,000 ppm	2,000 ppm 2,000 ppm 4,000 ppm	2,500 ppm 5,000 ppm 10,000 ppm
R-404a	6203-0021 6203-0022 6203-0023	500 ppm 1,000 ppm 2,000 ppm	2,000 ppm 2,000 ppm 4,000 ppm	2,500 ppm 5,000 ppm 10,000 ppm
R-32	6203-0041 6203-0042 6203-0043	500 ppm 1,000 ppm 2,000 ppm	2,000 ppm 2,000 ppm 4,000 ppm	2,500 ppm 5,000 ppm 10,000 ppm
