Kanomax 3800 Handheld Condensation Particle Counter
Item #:
3800
Brand:
Kanomax
Share this product:

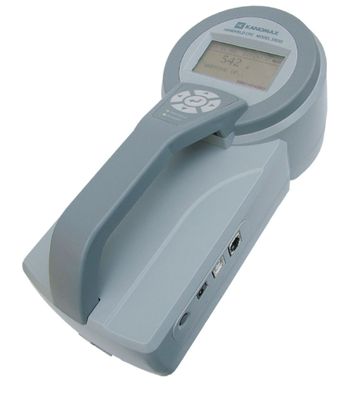

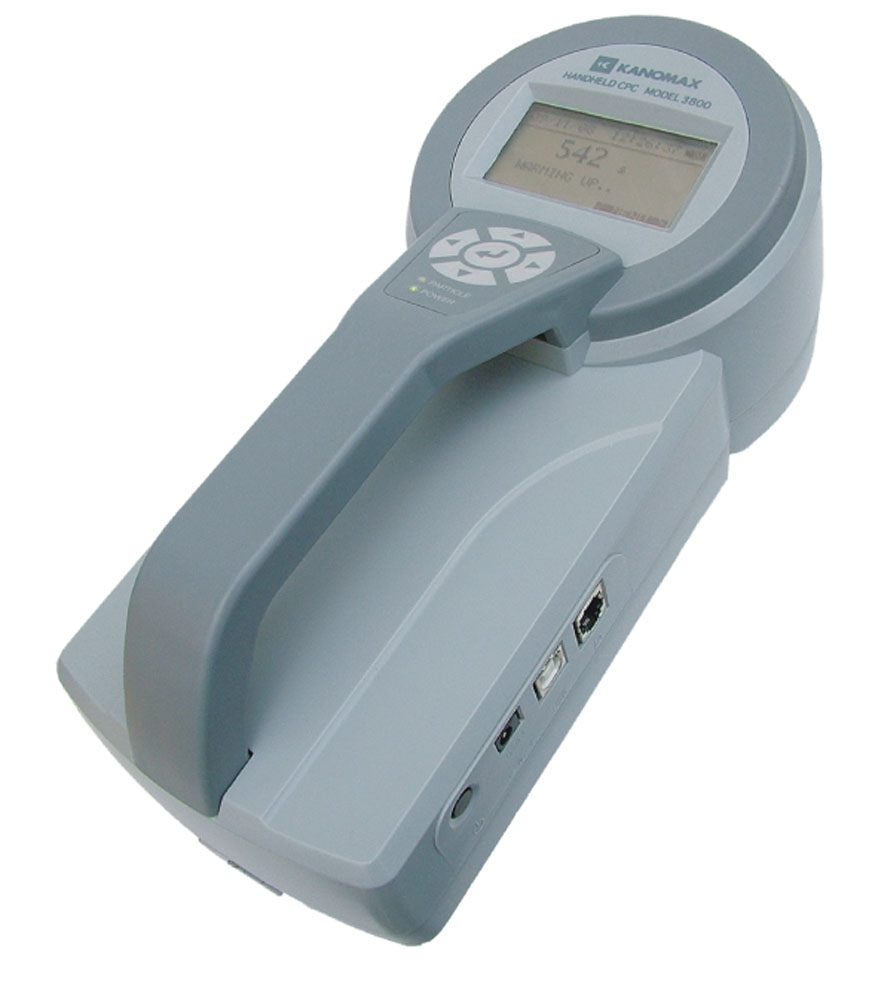

Kanomax Handheld Condensation Particle Counter Model 3800
Nanoparticles can pose a great threat to health. Certain ultrafine particles can cause respiratory and lung damage when breathed. Interestingly, previous indoor air quality measurement tools were not able to measure or monitor air particles at such ultrafine sizes. The Kanomax Handheld Condensation Particle Counter Model 3800 is an aerosol research tool with Nano particle counting capabilities. It was designed to fill the gap for nanoparticle detection and help improve the health and safety of those working in those conditions. This particular model utilizes the type of technology that is recommended to detect and monitor nanoparticles in the atmosphere.
Exclusive Kanomax Features
The compact and lightweight unit is highly portable. Additionally, the unit comes standard with software and data logging capabilities. The standard software allows for easy downloads to a PC or laptop through the USB cable and is Windows 7 compatible. The unit has immense record keeping capabilities and can store up to 100,000 measurements. The available extension sampling probe is useful for sampling in hard to reach places. It is also suitable for a variety of applications including indoor air quality investigations, occupational health control, gasket leakage testing, engine exhaust testing, filter testing, and aerosol research.
Kanomax Handheld Condensation Particle Counter Specifications
The handheld particle counter measures particle sizes ranging from .015 to 1 µ m with a concentration range of 0 to 100,000 particles per cubic centimeter. The unit has a flow rate of 100 cc/min for aerosol flow and 700 cc/min for total flow. The absolute pressure sensor ranges between 150 and 1,150 hPa. The particle counter operates with AA alkaline batteries, an Ni-MH battery pack, or an AC adaptor (100-240 volts). The device operates in a temperature range of 50 to 95 degrees Fahrenheit. The portable handheld unit is compact (dimensions of 4.7 x 5.1 x 11 inches) and lightweight (3.3 pounds). The unit is also available standard with the following accessories:
- Operation Manual
- Carrying Case
- AC Adaptor
- Zero Filter
- PC Community Cable
- Data Processing Software
- Calibration Certificate
The Kanomax Handheld Condensation Particle Counter has several optional accessories that help to enhance the usability and operation of the instrument. The optional accessories include Ni-MH battery, battery charger, thermal printer, printer cable, and sampling probe.
Kanomax
Kanomax was founded in Japan over 50 years ago with a desire to research and develop the most advanced and reliable measurement tools. The company focused on innovation and education to drive its designs and propel the company into the future. Today, Kanomax supplies companies all over the world through their global network of distributors. Their measurement tools cover a wide range of applications from environmental and particle to fluid mechanics and aerosol. They even develop products for customized systems. With a Kanomax products, customers are guaranteed to receive the most reliable and dependable products in the world.
Measuring Particle Size | 0.015 to > 1um | |
Concentration Range | 0 to 100,000 particles/cm3 | |
Counting Efficiency | 50nm: 100+/-20% (15nm: More than 50%) | |
Zero Count | Less than 1 particle/ cm3 | |
Flow Rate | Aerosol Flow: 100cc/min |
|
Alcohol Supply | Type | 100% reagent-grade isopropyl alcohol |
Hours per Fill | Approx. 5 hours at 23ºC (73ºF) | |
Absolute Pressure Sensor | 150 to 1150 hPa | |
Mode of Measurements | Repeat / Program / Counter | |
Display | Built-in LCD ( 128 x 64 dots) | |
Interface | USB | |
Buffer Memory | Max. 10,000 data | |
Power Supply | Type | 6 pieces of AA-size Alkaline / Ni-MH battery AC adapter (Input 100 – 240V) |
Operating hours | Approx. 5 hours ( By Alkaline batteries ) Approx. 8 hours ( By Ni-MH batteries ) |
|
Environmental Operation Condition | Ambient temperature range: 10 to 35ºC ( 50 to 95ºF) | |
Dimensions | 4.7"(W) x 11"(H) x 5.1"(D) (120 x 280 x 130mm) | |
Weight | Approx. 3.3lbs (1.5kg) (without batteries) | |
Standard Accessories | AC adapter, Zero filter , Alkaline battery x 6, Operation manual Software (for Windows), PC Communication Cable, Carrying Case |
|
Options | Ni-MH battery(1.2V-2500mA) x 6, Charger x 2, Printer, Printer cable, Sampling Probe |
