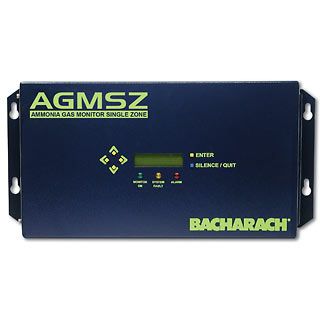

Bacharach 3015-4280 AGM-SZ Single Zone Monitor, 120-240 VAC / 50/60Hz Input Power

3015-4200 HGM-SZ Single Zone Monitor, 120-240 VAC / 50/60Hz Input Power by Bacharach

The Bacharach Single-Zone family of fixed point gas monitors is available for the detection of refrigerants, halogen gases (HGM-SZ) and ammonia (AGM-SZ). The Single-Zone series is designed around Bacharach’s proprietary infrared sensing technology to offer reliable, superior sensing performance.

Bacharach's infrared (NDIR) sensors offer users one of the most feature loaded, lowest-cost-of-ownership monitors available. The Single-Zone monitors feature automatic calibration, eliminating the need for costly calibrations. Periodic filter replacements are practically the only maintenance required.

An easy-to-install, out-of-the-box solution, Bacharach's Single-Zone monitors offer an onboard power supply, LCD display for real-time readings and LED indicators with dedicated relays that activate audible or visual alarms. A 4-20 mA output enables a compatible connection to standard building automation systems.

Features & Benefits:

• Proprietary infrared sensing technology virtually eliminates false alarms and extends sensor life
• Capable of detecting and measuring any CFC, HFC, and HCFC refrigerant gas or ammonia
• Provides continuous, unattended monitoring from up to 500 ft. (152.4 m) away from measuring point
• Measurement range of 0-10,000 ppm with sensitivity of 1 ppm
• Logging feature enables 200 gas readings to be stored at user-selectable time intervals
• No costly calibration required
