Honeywell Analytics 705 Flammable Detector, SG16B Junction Box, WP - 2430K0001
Item #:
2430K0001
Brand:
Honeywell Analytics
Share this product:

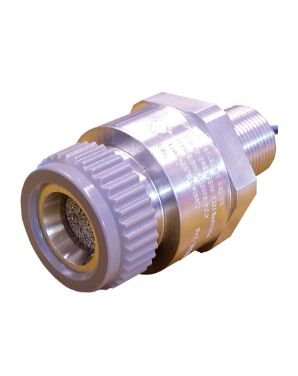

2430K0001 705 Flammable Detector, SG16B Junction Box, WP by Honeywell Analytics
The Model 705 high temperature sensor has been specifically designed for the detection of combustible gases in high temperature hazardous area locations.
Typical applications include turbine enclosures and drying ovens used in solvent based printing and coating machines.
These applications require a sensor that provides reliable and stable detection allowing low level alarm settings across a wide temperature range. Utilizing a specially matched pair of Sieger poison resistant combustible gas detection elements, the Model 705 High Temperature Sensor has a very stable baseline allowing alarm trip points to be set as low as 5% LEL across a temperature range of -25°C to +150°C (-3°F to +302°F). The gas measuring range can be configured from 0-20% LEL up to 0-100% LEL depending on the type of controller used.
The detector elements are housed in a UL hazardous area approved explosion proof assembly, and provide an industry standard 3 wire mV bridge output which can be connected to a suitable control device or converted to an analog output signal via a field transmitter.
Excellent Performance
- Certified for hazardous location operation up to +150°C (+302°F)
- Alarm trip points as low as 5% LEL
- Fast speed of response
- Poison resistant detectors
- Low power consumption
Cost Effective
- Low cost disposable sensor
- Greater than 5 year typical operating life
Reliable Operation
- Specially matched 'Sieger' detectors provide highest stability
- Proven technology from the World leader in combustible gas detection
Flexibility
- Measuring ranges from 0-20% LEL to 0-100% LEL
- Wide range of accessories
Robust Construction
- UL approved explosion proof enclosure
- High grade Aluminum construction
Range | 0-20% LEL, 0-100% LEL (Control card dependent) |
Speed of Response | T60 Less than 6 seconds. T90 Less than 10 seconds. |
Minimum Alarm Level | 5% LEL |
Output Signal | mV bridge |
Operating Temperature | -25°C to +150°C (-13°F to +302°F) |
Operating Humidity | Continuous: 20 to 90% RH Intermittent: 10 to 99% RH |
Operating Pressure | 75 to 110kPa (750 to 1100mbar) |
Stability (zero) | With time: Less than ±5% LEL/year With temperature: Less than ±3% LEL With humidity: Less than ±3% LEL With pressure: Less than ±3% LEL |
Stability (span) | With time: Less than ±5% LEL/year With temperature: Less than ±4% LEL With humidity: Less than ±3% LEL With pressure: Less than ±3% LEL |
Linearity | Better than ±5% fsd |
Repeatability | Better than ±2% LEL |
Warm-up Time | 30 minutes |
Detector Operating Life | More than 5 years (typical) |
Storage Life | Typically, no degredation has been observed in clean, stable conditions for up to 5 years |
Power Consumption | 0.7W at 200mA |
Enclosure Material | Aluminum |
Mounting Thread | 3/4" NPT |
Weight | 200g (7oz) |
Certification | UL Hazardous location approval Class1, Div1, groups B, C and D Tamb: -25°C to +150°C |
