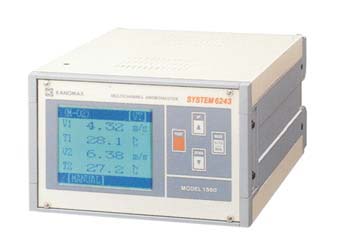

Kanomax 1560 Multi Channel Anemomaster for 6 Modules
Item #:
1560
Brand:
Kanomax
Share this product:
1560 Multi Channel Anemomaster for 6 Modules by Kanomax
Applications:
- Ventilation monitoring for energy efficient building
- Evaluate cooling efficiency in the electronic device
- Aerodynamics Research
- Production Control
- Product Development
Features:
- One unit of Model 1550 has 64 Channels for air velocity. For a larger system, connect up to 5 units in a cascade and add a computer for control. It makes a total of 320 channels.
- Flexibility in system configuration means greater freedom, simplicity, and efficient in measurement
- 4-channel air velocity module Model 1504
- 2-channel air velocity and temperature module Model 1511
- 1-channel air velocity, temperature, and humidity module Model 1512
- Analog output module Model 1510
Benefits:
- Combine these modules and design a multi-channel system freely.
- More modules can be added whenever necessary

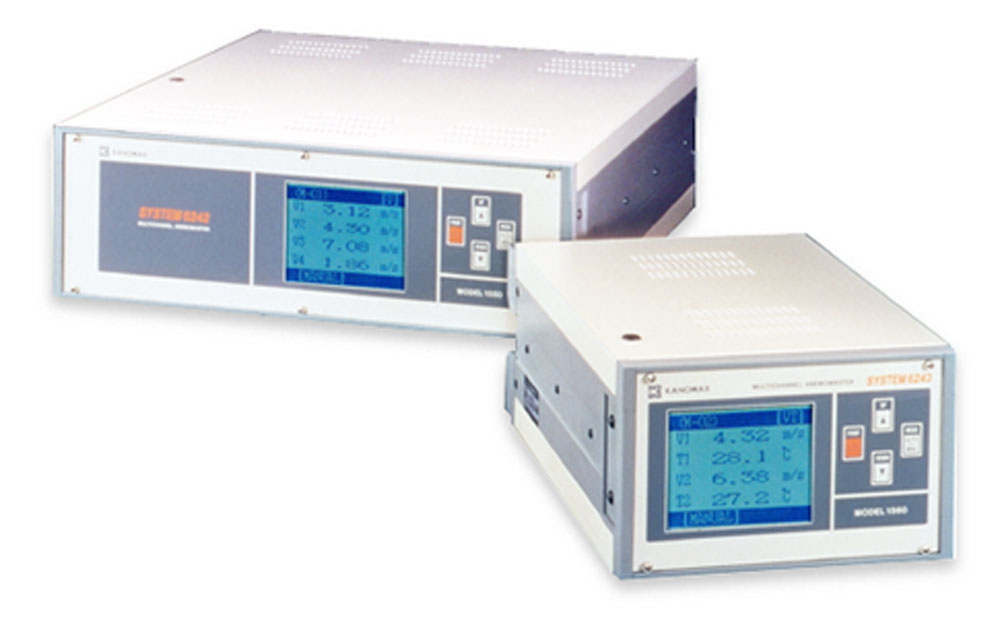

| Model | 1550 | 1560 |
| Display | LCD (with backlight) Simultaneously displays on a module basis | |
| MAN: Select modules by operating the UP/DOWN switches | ||
| AUTO: Automatically select s modules every 2 seconds to display data | ||
| Function | Burst Mode: Transfers data of all channels at high speed Channel Mode: Transfers data of the specific channel only |
|
| Data Selection: Outputs instantaneous values every specified sampling time, and outputs the average | ||
| Interface | Data transfer: RS232C (standard), extended RS232C (optional) and GP-IB (optional) | |
| Baud Rate: 300, 600, 1200, 2400, 4800, 9600, 19200bps (selectable) | ||
| Printer output: Centronics (the system prints data only of the module display, every 2 seconds.) | ||
| Dimensions | 16.9” x 19.6” x 5.5” (430 x 500 x 140 mm) | 8.9” x 12.8” x 5.5” (226 x 325 x 140mm) |
| Weight | Approx. 22lbs (Approx. 10kg) | Approx. 11lbs (Approx. 5kg) |
