Testo Immersion and Penetration Pt100 Probe - 0618 0073
Item #:
0618-0073
Brand:
Testo
Share this product:

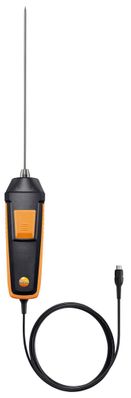

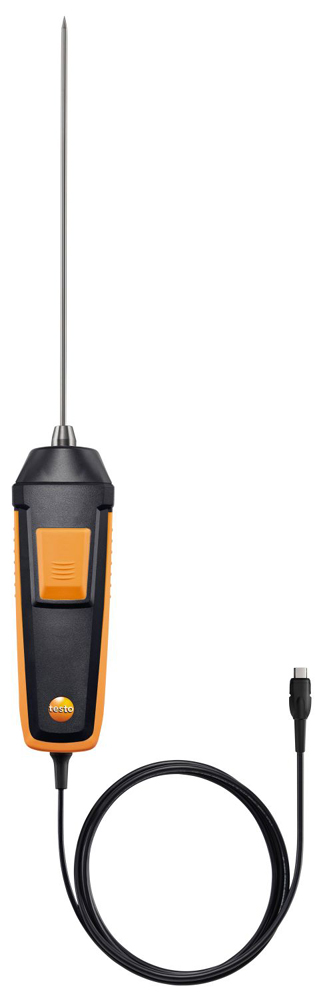

0618 0073 Immersion and Penetration Pt100 Probe by Testo
Ideal for measurements in laboratories, in industry and also in food quality control. The high-precision immersion/penetration probe with a Pt100 temperature sensor, which features long-term stability, is particularly suitable for carrying out temperature measurements in liquids and pastes.
Particularly useful: Store individual readings directly in the measuring instrument itself (please order separately) by pressing the button on the probe. The measurement assistant in the measuring instrument makes for intuitive operation and error-free measurement. Reading trends are reliably recorded thanks to the convenient input of measurement time and measuring cycle.
Intelligent calibration concept
With the digital temperature probe you benefit from exceptionally accurate measurement results, because the measuring instrument makes measurement uncertainty a thing of the past. You only need to send the probe in for calibration - so the measuring instrument remains in continuous use. Thanks to the adjustment function in the measuring instrument, the calibration results can be stored at up to six measuring points. This ensures a zero-error display.
- Accuracy of up to ±0.15 °C
- For measurements in liquids and pastes
- Ideal for use in laboratories, in industry and in food quality control
- Intelligent calibration concept with zero-error display
High-precision temperature measurement: The digital penetration probe (with the compatible measuring instrument) takes measurements in liquids and pastes, with an accuracy of up to ±0.15 °C.
Delivery Scope
1 x immersion/penetration probe (digital) with fixed cable (cable length 1.4 m) and calibration protocol.
Temperature - Pt100 | |
Measuring range | -148° to 752 °F / -100 to +400 °C |
Accuracy | {±(#0.00} °F + 0.2 % of mv) (-100.0° to 31.98 °F) / ±(0.15 °C + 0.2 % of mv) (-100 to -0.01 °C) ±(0.27 °F + 0.05 % of mv) (0.0° to +212.0 °F) / ±(0.15 °C + 0.05 % of mv) (0 to +100 °C) ±(0.27 °F + 0.2 % of mv) (100.01+° to +662.0 °F) / ±(0.15 °C + 0.2 % of mv) (+100.01 to +350 °C) ±(0.9 °F + 0.5 % of mv) (+350.01 to +752.0 °F) / ±(0.5 °C + 0.5 % of mv) (+350.01 to +400 °C) |
Resolution | 0.01 °F / 0.01 °C |
General technical data | |
Weight | 6.42 oz. / 182 g |
Dimensions | 14.2 x 2.0 x 1.6 in. (LxWxH) / 360 x 50 x 40 mm (LxWxH) |
Length probe shaft | 7.874 in. / 200 mm |
Housing | PC - ABS |
Cable length | 4.593 ft. / 1.4 m |
Diameter probe shaft tip | 0.118 in. / 3 mm |
Diameter probe shaft | 0.118 in. / 3 mm |
Product colour | black/orange |
