Testo 184 G1 Temp/RH/Shock Logger with Display - 0572 1846
Item #:
0572-1846
Brand:
Testo
Share this product:

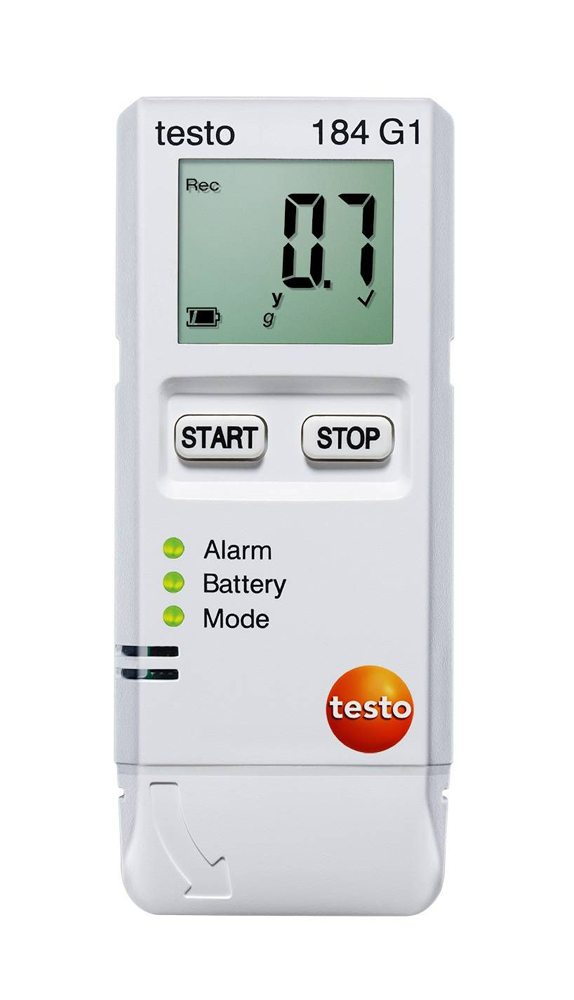

0572 1846 184 G1 Temp/RH/Shock Logger with Display by Testo
The data logger testo 184 G1 is designed specifically for the monitoring of shock, relative humidity and temperature during transportation. In addition to the precise temperature and humidity measurement, a 3-axle acceleration sensor measures any vibrations which occur.
This allows impact and vibrations to be reliably recorded during the transport of high-quality electronic products, delicate machinery or valuable art objects.
At their destination, your see at a glance whether the configured limit values have been adhered to. In order to obtain detailed information, it is sufficient to connect the logger via USB to a PC - a PDF report is immediately generated with all relevant data.
In order for you to be able to work even more efficiently and conveniently with the data loggers, all required files and information are stored directly and securely in the testo 184 G1: Configuration file, instruction manual and PDF report of your recorded data.
- Clear alarm indication
- Easiest operation
- Easiest configuration without software installation
- Convenient readout thanks to automatic PDF report
- Mobile readout by NFC possible
- Reliable recording of vibrations/impact (shock)
General Data | |||
Power supply | Lithium battery CR2450 3V, exchangeable | ||
Operating time | Unlimited | ||
Battery life | 120 days (at +25 ° C and 15 minute measurement cycles) | ||
Measuring cycles | 1 min to 24 h | ||
Memory | 64,000 readings (temperature and humidity) + 1,000 readings (shock) | ||
Alarm identification | by LEDs and display | ||
Dimensions | 1.7 x 0.5 x 3.8 in. (44 x 12 x 97 mm) | ||
Weight | 1.6 oz. (45 g) | ||
Protection class | IP30 | ||
Operating temperature | -20 to +70 °C | ||
Storage temperature | -55 to +70 °C | ||
Tests, certificates | Certified by HACCP International / Testo ComSoft CFR software (V4.3 SP2 or higher) compatible with CFR 21 Part 11 | ||
Warranty | 24 months, warranty conditions: see website www.testo.com/warranty | ||
Sensor | |||
Meas. parameters | Temperature | Humidity | Shock |
Measuring range | -4 to 158 °F (-20 to +70 °C) | 0 to 100 %RH | 0 to 27 g |
Accuracy | ±0.5 °F (32 to 158 °F) / ±0.5 °C (0 to +70 °C) ±0.8°F (-4 to 32 °F) / ±0.8°C (-20 to 0 °C) |
±1.8 %RH + 3 % of m.v. at 77 °F (+25 °C) (5 to 80 %RH) ±0.03 %RH / K 32 to 140 °F (0 to 60 °C) |
±0.1 g + 5 % of m.v. |
Resolution | 0.1 °F (0.1 °C) | 0.1 %RH | 0.1 g |
