0572 1764 176 T4 4-Channel Temperature Logger with 4 External Thermocouple Connections (Type T, K, J) by Testo

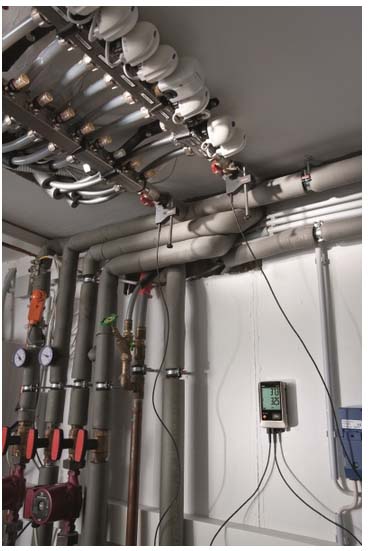

You can measure and document flow and return temperatures with the testo 176 T4 at 4 different places, for example at the distributor og an underfloor heating system, in order to test its functionality. The requirements of a many different applications can be fulfilled using a broad range of connectable thermocouple probes (Type K, Type T, Type J).

  • Large memory for 2 million measurement values - large, easily legible display
  • up to 8 years battery life
  • Standard battery (AA) replaceable by user
  • Scope of delivery: Data logger testo 176 T4 incl. wallholder, lock, batteries, calibration certificate and instruction manual
Memory 2.000.000 readings
Storage temperature -40 to +85 °C
Operating temperature -20 to +70 °C
Dimensions 103 x 63 x 33 mm
Probe type Typ T (Cu-CuNi) Meas. range: -200 to +400 °C
Accuracy: ±1 % of mv (-200 to -100,1 °C); ±0.3 °C (-100 to +70 °C); ±0.5 % of mv (+70,1 to +1000 °C)
Resolution: 0.1 °C
Probe type Type K Meas. Range: -195 to +1000 °C
Accuracy: ±1 % of mv (-200 to -100,1 °C); ±0.3 °C (-100 to +70 °C); ±0.5 % of mv (+70,1 to +1000 °C)
Resolution: 0.1 °C
Probe type Typ J (FeCuNi) Meas. Range: -100 to +750 °C
Accuracy: ±1 % of mv (-200 to -100,1 °C); ±0.3 °C (-100 to +70 °C); ±0.5 % of mv (+70,1 to +1000 °C)
Resolution: 0.1 °C
