Testo 550s Basic Kit - Smart Digital Manifold with Wired Clamp Temperature Probes - 0564 5501 01
Item #:
0564-5501-01
Brand:
Testo
Share this product:
0564 5501 01 550s Basic Kit - Smart Digital Manifold with Wired Clamp Temperature Probes by Testo
The testo 550s digital manifold with 2-way valve block enables you to carry out your measurements on refrigeration, air conditioning systems, and heat pumps fast. The large display helps evaluate the results in graphic forms. Stored programs guide you through measurements and enable the automatic determination of numerous important system parameters such as superheating/subcooling, target superheat, cooling/heating capacity and many other areas.
Bluetooth probes for temperature, vacuum, and humidity can be easily connected and offer maximum flexibility in their application. In conjunction with the testo Smart App, you can take care of digital documentation directly on site.
Its proven quality and great durability guarantee the continuously high performance of your manifold in all conditions.

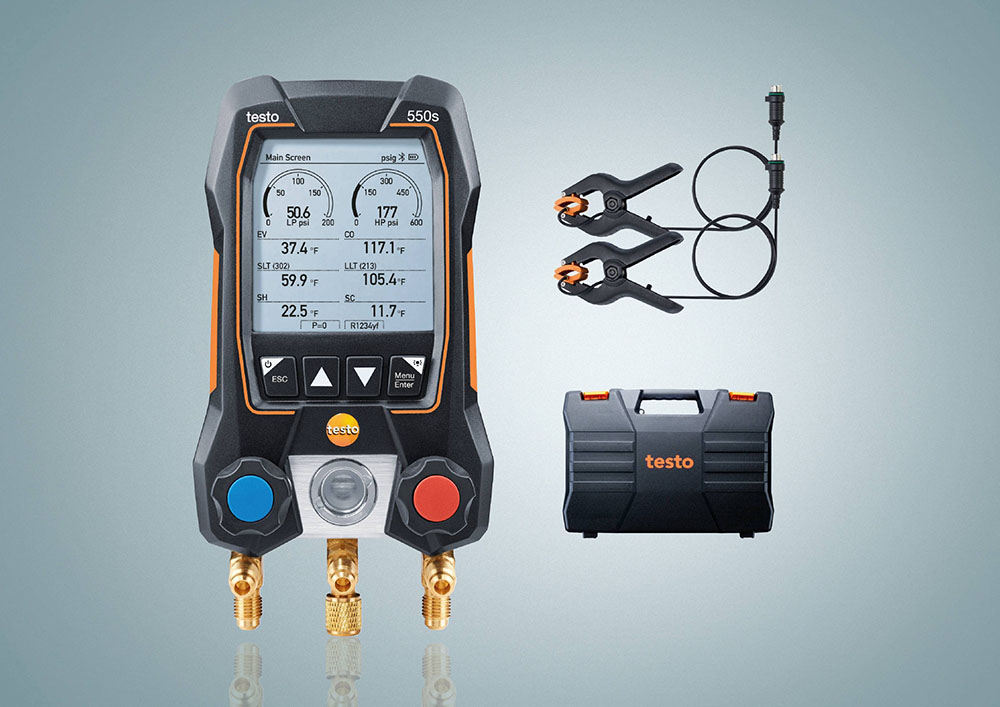

Includes:
- testo 550s digital 2-way manifold including batteries (4 x AA) and calibration protocol
- Clamp temperature probe kit (includes 2 x clamp probes NTC)
- Transport case
- testo Smart App (free download)
- Instruction manuals
- Large graphic display shows all results at a glance
- Simple wireless humidity, temperature, and vacuum measurements via Bluetooth connectivity
- Fast and easy pressure value display in analog look
- Rugged housing with IP 54 for maximum reliability in daily use
- Refrigerant listing updates automatically using the App
- Integrated calculation of the target superheat
- Easy to Use
Sensor Specifications | ||
Pressure | Temperature | |
Measuring range | -14 to 870 psi (-1 to 60 bar) | -58 to 302 °F |
Accuracy (at 71.6 °F) | ±0.5% fs | ±0.9 °F |
Resolution | 0.1 psi (0.01 bar) | 0.1 °F |
Probe connections | 3 x 7/16" – UNF | 2 x plug-in (NTC) |
Overload | 940 psi | - |
General technical data | ||
Operating temperature | 14 to 122 °F | |
Storage temperature | -4 to 140 °F | |
Battery type | 4 AA batteries | |
Battery life | 250 hrs with no illumination, no Bluetooth® 100 hrs with illumination and Bluetooth® |
|
Auto power off | After 10 minutes when not connected via Bluetooth | |
Dimensions | 8.3 x 4.8 x 2.4 in | |
Weight | 1.8 lbs | |
Protection class | IP54 | |
Bluetooth technology/ range | Bluetooth® 5.0 (up to 500 ft) | |
Compatibility | requires iOS 11.0 or newer/Android 6.0 or newer requires mobile terminal device with Bluetooth® 4.0 |
