Testo 550 Digital Manifold Kit with Bluetooth - 0563 1550

Item #:
0563-1550
Brand:
Testo
$379.00
Qty
Send This Page to a Friend

Ask an Expert

Our tech experts are ready to help!

1-866-4 JJSTECH (1-866-455-7832)

Email Us
Share this product:
Testo 550 Digital Manifold Kit with Bluetooth - 0563 1550

Testo 550 Digital Manifold Kit with Bluetooth - 0563 1550

$379.00

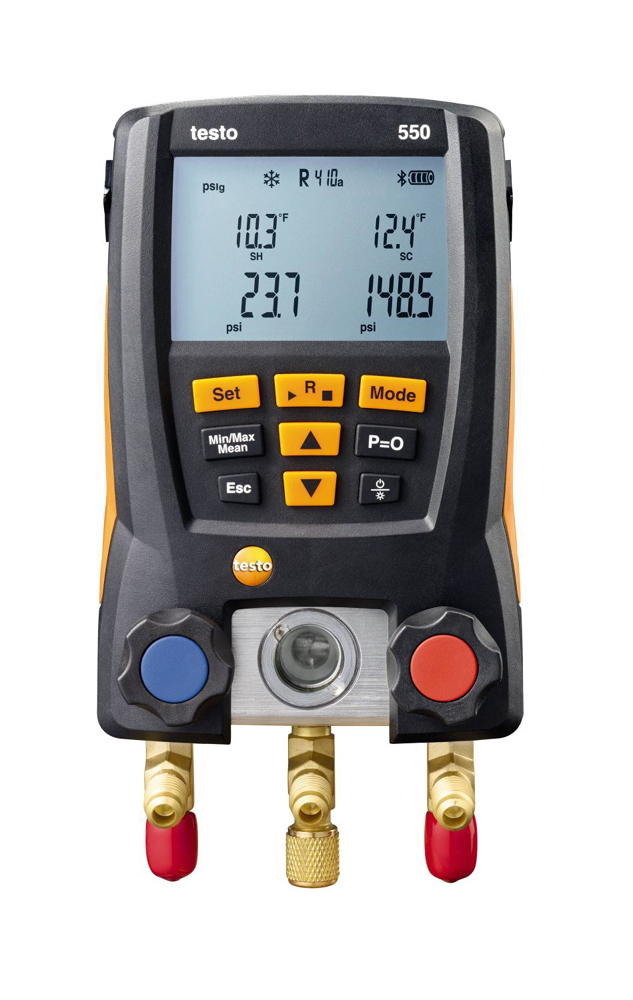

0563 1550 550 Digital Manifold Kit with Bluetooth by Testo

The App integration via Bluetooth opens up new possibilities for efficient analysis and documentation. You can read the data on a Smartphone or Tablet, allowing for more work quickly and conveniently. In addition to this, the user can finalize and send the measurement report directly on site. The App allows the list of stored refrigerants to be updated, via the internet.

The more rugged housing includes a metal frame around the display which protects the new testo 550 from impact. Now with 60 refrigerant profiles and added functionality of leak tests, Testo manifolds are versatile enough to be the tool for every job.

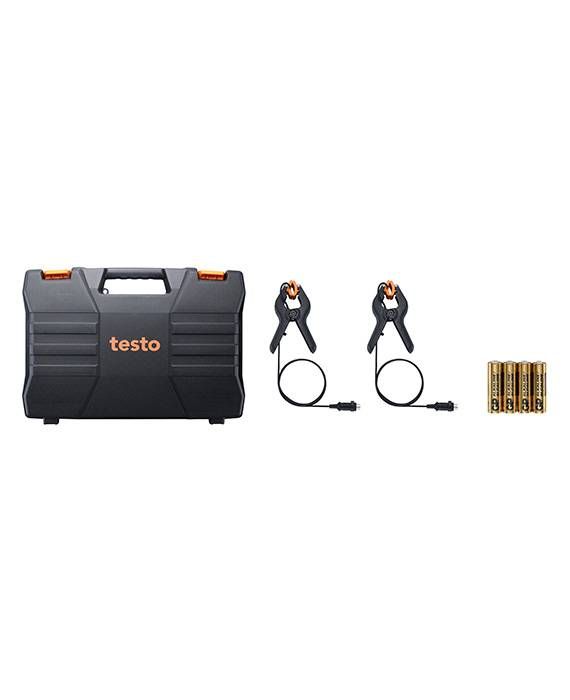

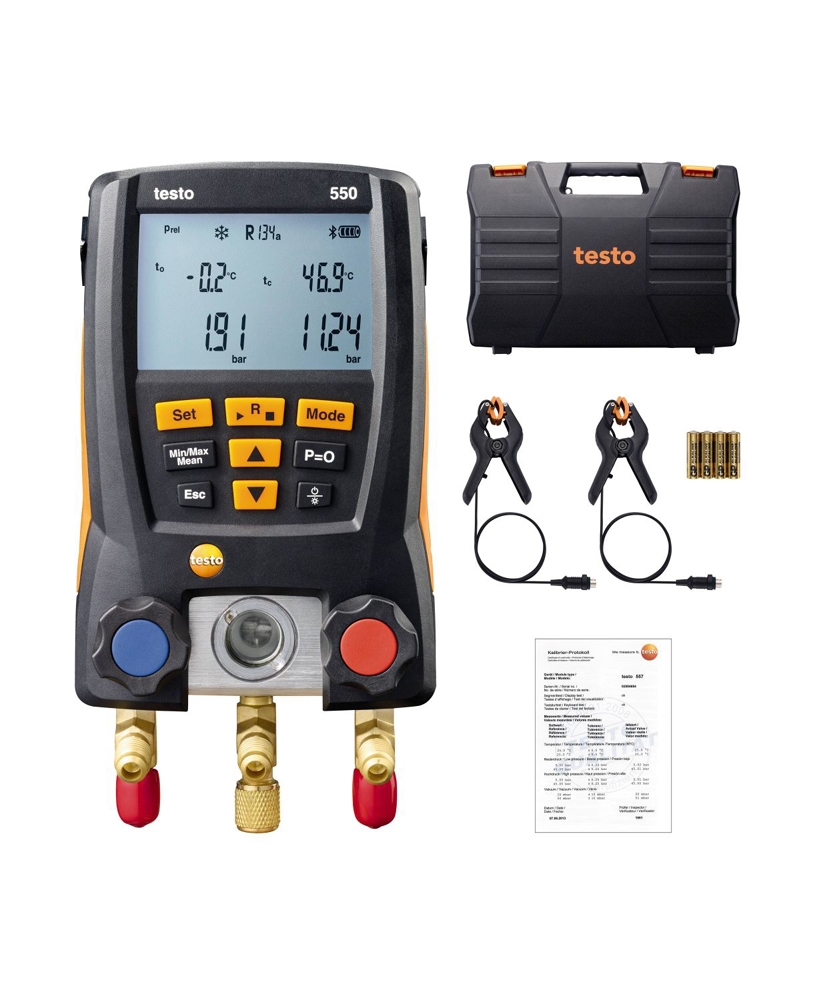

Includes:

  • 550 Digital Manifold with Bluetooth
  • 0613 5505 - Two (2) 4.9 ft Clamp Probes (NTC)
  • 0516 0012 - Hard carry case
  • Certificate of Conformity

  • Measures high side / low side pressures and temperatures
  • Accurate, simultaneous super heat/subcooling in real time
  • App integration via Bluetooth for monitoring and reporting
  • 60 refrigerant profiles onboard
  • Refrigerant updates in the instrument via App
  • 2-way valve block with three connections, large, 2-line backlit display
  • 5 year warranty with registration
Specifications

Pressure
Temperature (option)
Vacuum (indication)
Measuring range
-14.7 to 870 psi (-1 to 60 bar)
-58 to 302° F (-50 to +150 °C)
-14.7 to 0 psi (-1 bar to 0 bar)
Accuracy (at 70 °F)
±0.5 % fs
±.9° F (±0.5 °C)
-
Resolution
0.1 psi (0.01 bar)
0.1° F (0.1 °C)
-
Connections
1/4"
2 x plug-in (NTC probes)
-
Overload
940 psi (65 bar)
-
-

Technical data
Operating temperature -4° to 122 °F (-20 to +50 °C)
Storage temperature -4° to 140 °F (-20 to +60 °C)
Battery life (4 x AA) 250 h (less with use of Bluetooth, backlight or vacuum)
Dimensions 8.7"x4.0"x2.75" (220 x 125 x 70 mm)
Weight 2.6 lb (1200 g)
Protection class IP42 (splash proof)
Refrigerants in the instrument 60 profiles: R11, R12, R123, R1234yf, R1234ze, R125, R13B1, R134a, R14, R142B, R152a, R161, R22, R227, R23, R290, R32, R401A, R401B, R401C, R402A, R402B, R404A, R406A, R407A, R407B, R407C, R407D, R407F, R408A, R409A, R410A, R411A, R412A, R413A, R414B, R416A, R417A, R420A, R421A, R421B, R422A, R422B, R422C, R422D, R424A, R426A, R427A, R434A, R437A, R438A, R502, R503, R507, R508A, R508B, R600, R600a, R744 (CO2), R718 (H2O), update via App
Warranty 2 years; 5 years with registration
