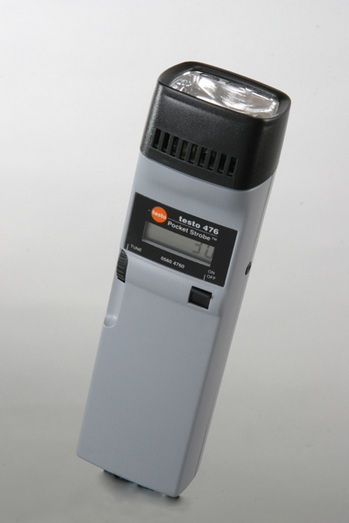

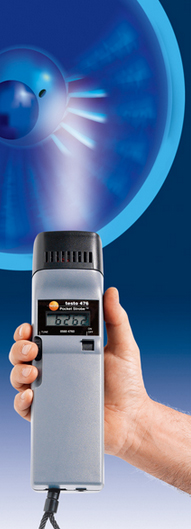

Testo 476 Handheld Stroboscope - 0563 4760
Item #:
0563-4760
Brand:
Testo
Share this product:
0563 4760 476 Handheld Stroboscope by Testo
The testo 476 Pocket StrobeTM hand-held stroboscope measures and checks rotation and vibration movements. It facilitates the measurement of very small objects or in hard-to-access places. And all without interrupting the production process. testo 476 is therefore ideal for measuring rpm and inspecting high-frequency moving parts.
- High setting accuracy and stability thanks to dynamic setting dial
- High light intensity due to energy optimised switching electronics and powerful xenon flashlamp
- Powerful rechargeable battery pack for min. 2 hours' continuous operation without mains connection over the whole frequency range
- Trigger input for synchronizing flash sequence (long-term observation)
- Even higher light intensity with improved high-performance xenon flash lamp
- Tripod connection in housing
- Memory function (last reading is stored when switched off)
- Mains operation with simultaneous battery charging possible
Meas. range | +30 to +12500 rpm |
Accuracy ±1 digit | ±0.01% of mv |
Resolution | 1 rpm |
Oper. temp. | 0 to +40 °C |
Dimensions | 240 x 65 x 50 mm |
Weight | 415 g |
Display | LCD, 1 line |
Warranty | 2 years |
Display | 5 digit LCD display |
Illumination | 800 Lux at distance of approx. 20 cm |
Flash energy | max. 150 mJ |
Flash duration | <20 μs |
Light colour | 6000 to 6500 K |
Type of operation | Rechargeable battery |
Mains voltage rech. battery | 100 to 240 V, 50/60 Hz |
Battery type | NiMH rech battery pack |
Battery charging time | max. 3.5 h |
Total discharge protection | Yes |
Overload protection | Yes |
Trickle charging | Yes |
Connection external trigger | 0 to 5 V DTL/TTL compatible; 3.5 mm / 1/8 Standard plug; Uout=7.2 V unregulated |
Housing material | ABS |
Operating time | 1h at 30 to 12,500 rpm and 23°C (typically) |
Flash lamp life | 100 mio. flashes |
