Testo 922 - Differential Temperature Measuring Instrument for TC Type K with App connection - 0563 0922
Item #:
0563-0922
Brand:
Testo
Share this product:

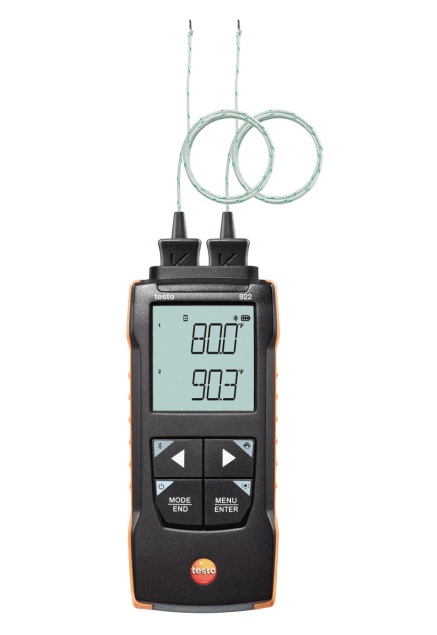

0563 0922 922 - Differential Temperature Measuring Instrument for TC Type K with App connection by Testo
Professionals in industry and trade value the compact testo 922 differential temperature measuring instrument for its versatility. The testo 922 not only determines temperatures quickly and accurately, but also does a direct calculation of the differential temperature with its wide measuring range from -58 to 1832 °F. This means that measurements can be completed quickly, and reading documented by the free testo Smart App for smartphones and tablets. Measuring temperature has never been even easier to complete the job in a single effort.

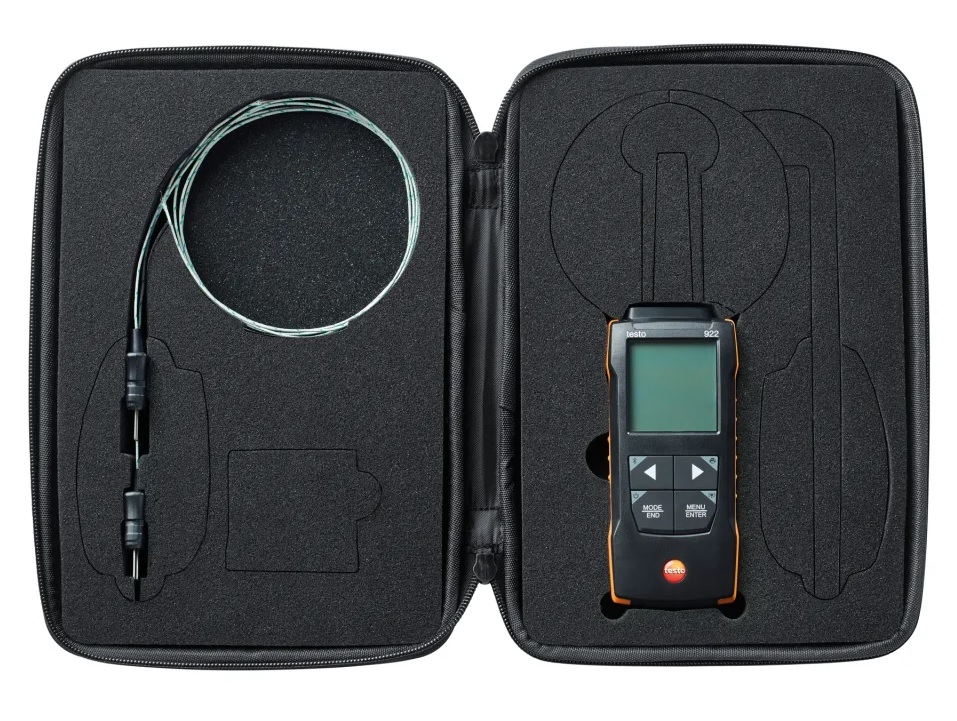

A typical application for the testo 922 is, for example, the control of the supply/return temperature on heating circuit manifolds. Two Type K thermocouple probes are included, but the testo 922 is also compatible with other commercially available TC Type K probes.
The testo Smart App not only supports you with the documentation of your measurement results. The smart assistant also takes care of configuring the testo 922 while displaying and storing the measured values for you and turns your smartphone into a second display and displaying and storing the measured values for you. A particularly practical feature: The App also turns your smartphone into a second display.

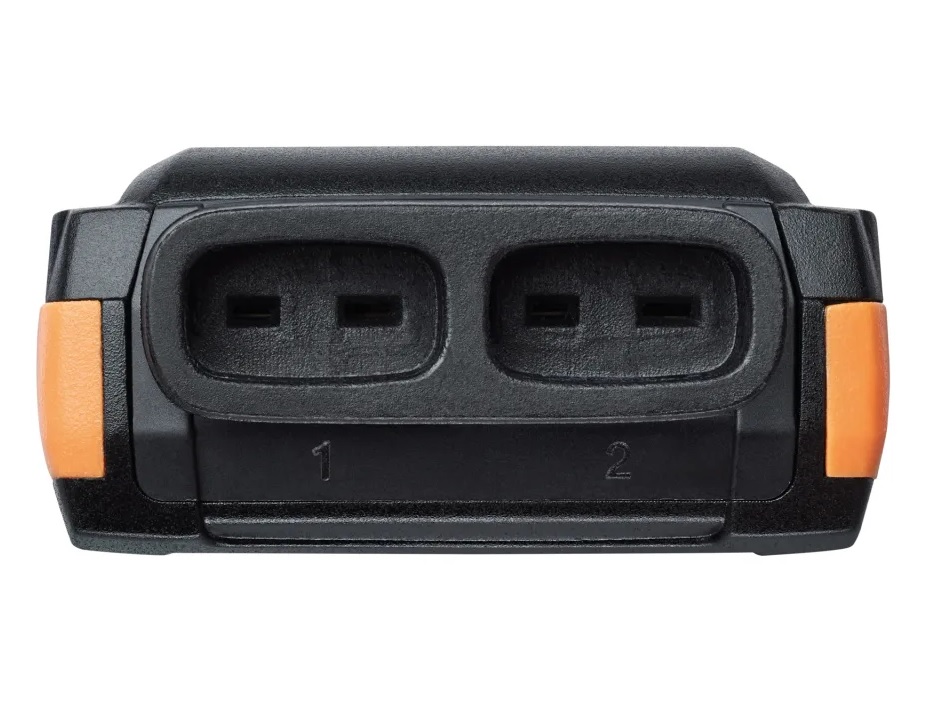

- Easy, fast and precise differential temperature measurement with dual thermocouple Type K probes (2 TC Type K probes included)
- Fast in-app configuration, graph history, second screen and measurement data memory in the testo Smart App
- Wide range of applications due to large measuring range from -58 to 1,832 °F

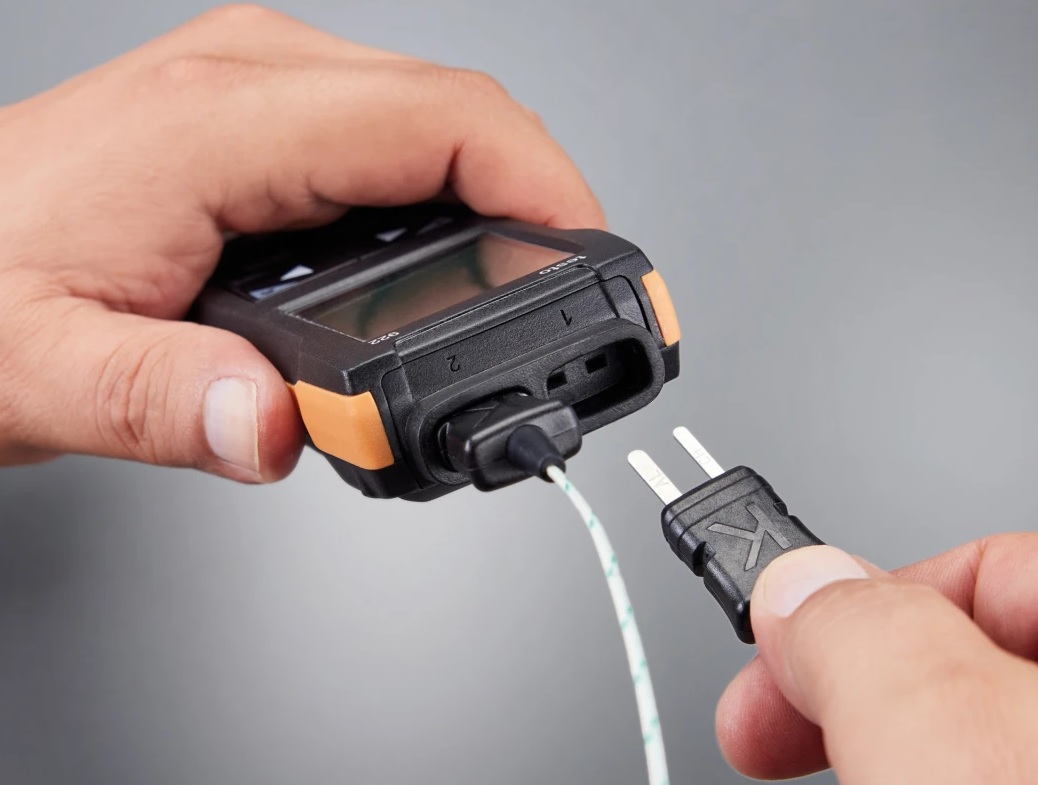

- Large probe selection optional and compatible with commercially available TC Type K sensors
- Audible alarm sounds if a limit value is exceeded
Vane | |
Measuring range | -58 to 1,832 °F |
Accuracy ±1 digit | ±(0.9 °F + 0.3% of m.v.) (-58 to 1832 °F) |
Resolution | 0.1 F (-58 to 931.8F) 1 °F (rem. measuring range) |
General technical data | |
Operating temperature | -4° to 122 °F |
Storage temperature | -4° to 122 °F |
Battery type | 3 x AA |
Battery life | 120 h |
Dimensions | 5.3 x 2.4 x 1.1 in |
Weight | 0.42 lbs. |
Protection class | IP40 with TopSafe: IP65 |
Housing material | ABS + PC / TPE |
