Testo 510 Pressure Set - 0563 0510 01
Item #:
0563-0510-01
Brand:
Testo
Share this product:
0563 0510 01 510 Pressure Set by Testo

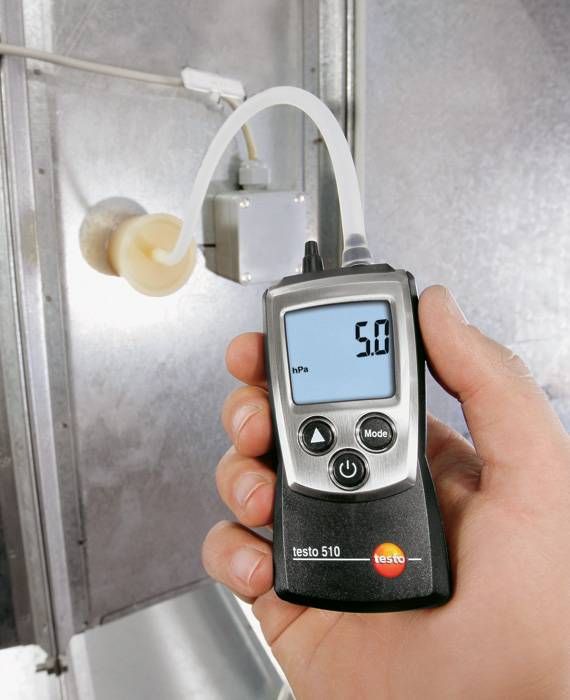

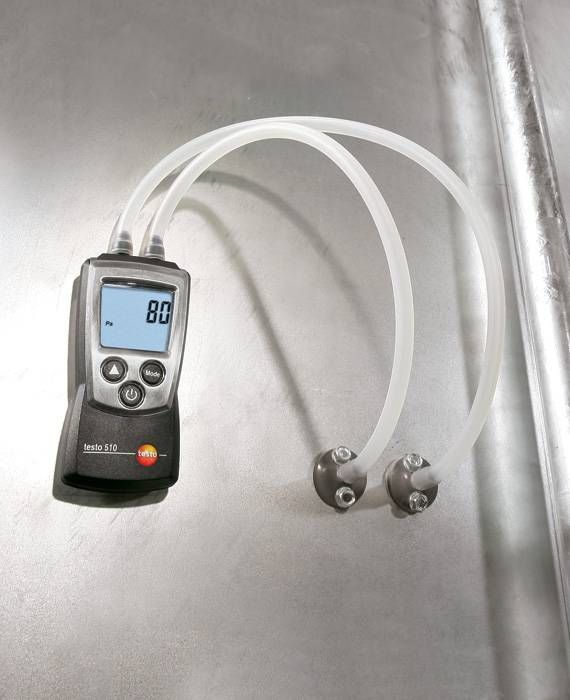

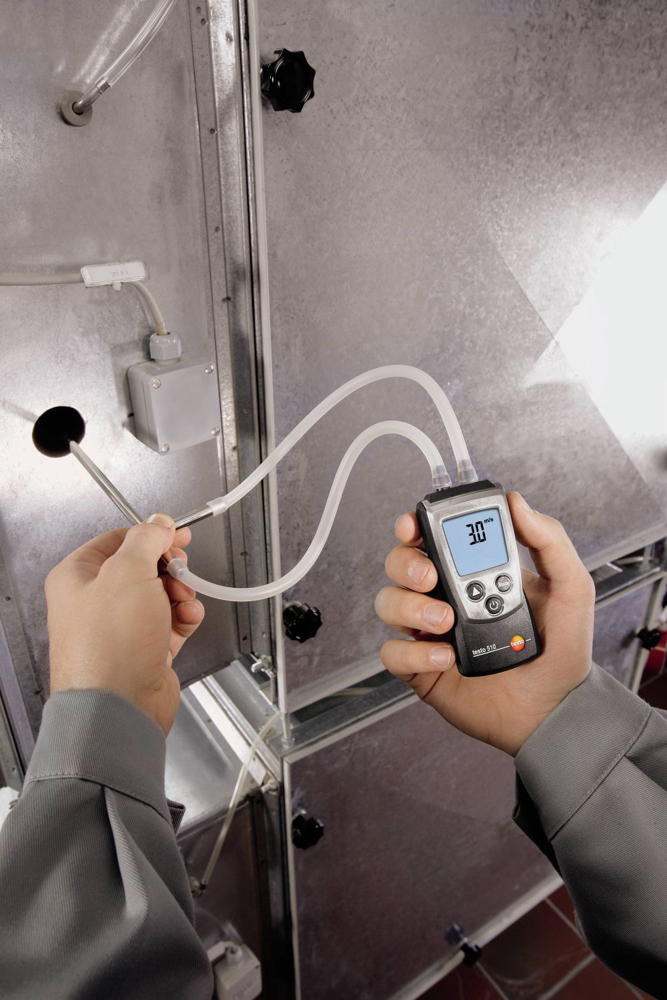

The testo 510 is very handy, small and easy to operate. It measures differential pressure in a range of 0 to 40 inH2O. The differential pressure measurement is temperature-compensated for accurate measurement values which can be displayed in Inches of Water Column over the entire measurement range. Magnets on the back of the 510 permit free-hand work. The backlit display allows the measurement values to be easily read out, even in unfavorable light conditions.
The testo 510, in combination with an optional Pitot tube, measures air flow velocity. For accurate measurement values, the air density can be compensated.
- Differential pressure measurement 0 to 40 inH2O
- Flow velocity measurement possible with Pitot tube
- Temperature and air density compensation
- Backlit LED Display
- 10 selectable units of measure
- Includes silicone hoses

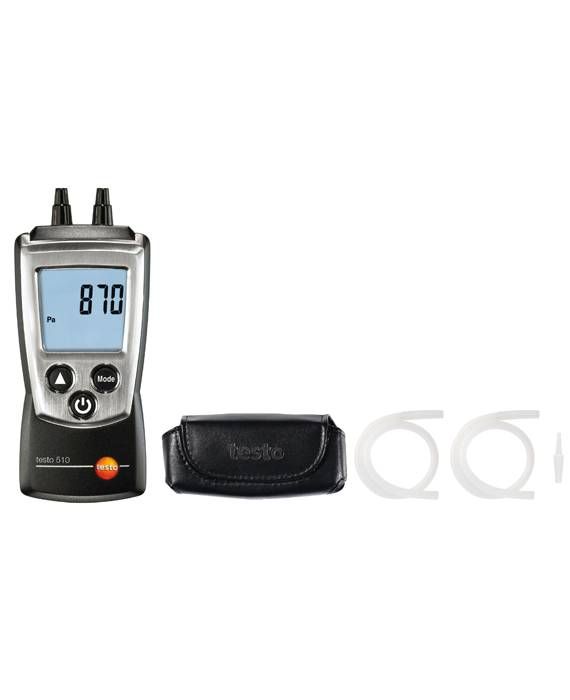

Kit Includes:
- 0560 0510 Differential Pressure Meter with Air Velocity
- 2 x silicone hose
| Sensor type | Differential pressure sensor |
| Measuring range | 0 to 40.00 inH2O (0 to 100 hPa) |
| Accuracy ±1 digit | ±0.012 inH2O (0 to 0.12 inH2O) ±0.03 hPa (0 to 0.3 hPa) ±0.02 inH2O (0.125 to 0.402 inH2O) ±0.05 hPa (0.31 to 1.00 hPa) ±0.04 inH2O +1.5% of m.v. (0.405 to 40 inH2O) ±0.1 hPa + 1.5 % of m.v. (1.01 to 100 hPa) |
| Resolution | 0.401 inH2O (0.01 hPa) |
| General technical data | |
| Positive pressure | 201 inH2O (500 mbar) |
| max. static pressure | 603 inH2O (1.5 bar) |
| Operating temperature | 32 to 122 °F (0 to +50 °C) |
| Storage temperature | -40 to 158 °F (-40 to +70 °C) |
| Selectable units | inH2O, hPa, mbar, Pa, mmH2O, inHg, mmHg, psi, m/s, fpm |
| Protection class | IP40 |
| Battery type | 2 AAA micro batteries |
| Battery life | 50 h (average, without display illumination) |
| Measurement rate | 0.5 s |
| Dimensions | 4.68 x 1.8 x 0.98 in. (119 x 46 x 25 mm) |
| Weight | 3.2 oz./ 90 g (w/ batteries and protective cap) |
| Warranty | 2 years |
