Testo Smart Probes VAC Set Wireless Smart Probe Kit - 0563 0003
Item #:
0563-0003
Brand:
Testo
Share this product:

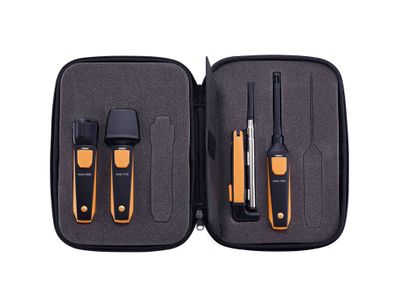

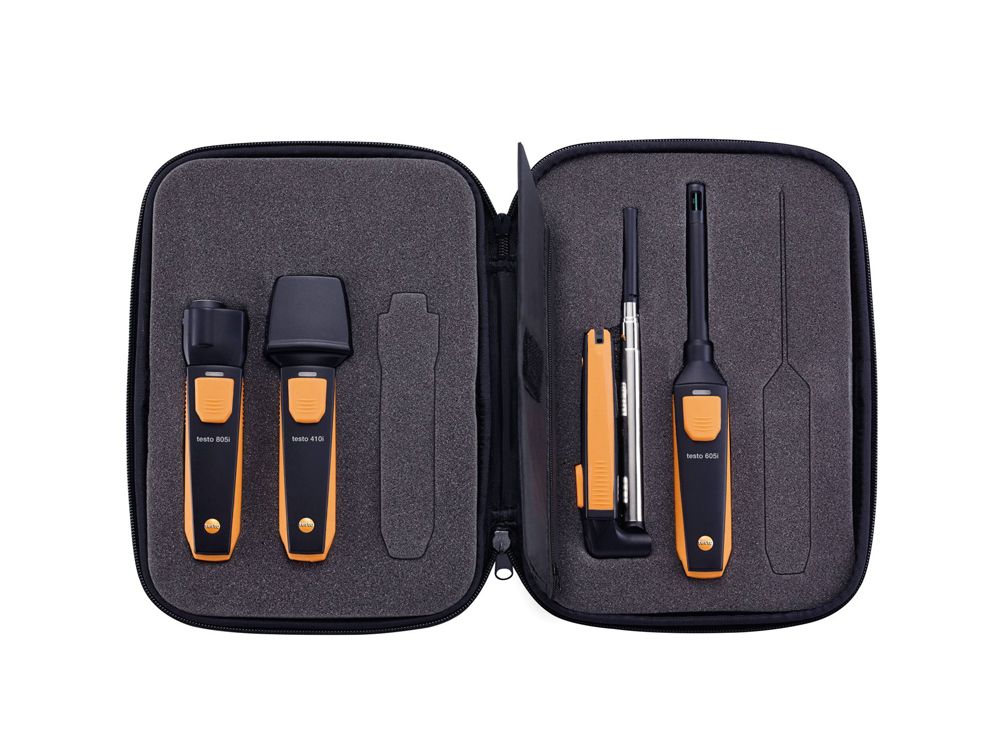

0563 0003 Smart Probes VAC Set Wireless Smart Probe Kit by Testo
The testo VAC Smart Probe Set provides a combination of four instruments needed to test and balance a multioutlet ventilation system. Two types of anememoters give you the capacity to measure in-duct air flow and the flow from each vent. Using an IR temperature probe for surface temperatures will show you motor and electrical equipment conditions and an easy check of each outlet. The thermohygrometer will provide an assessment of the humidity and dewpoint concerns throughout the system. Users can remotely read the measurements from multiple probes by using the testo Smart Probes App. The kit comes with a handy case at a great value.
The testo Smart Probes App is a powerful and easy-touse tool. It allows you to remotely read measurements from up to six (6) Smart Probes and easily document/report the results. Automatic calculations make it a snap! All measurement data is displayed as instrument readings, tables, or graphs. The measurements can be quickly saved as PDF or Excel files. The App creates custom reports which can be saved and/or shared by email. All your data can be stored and retrieved saving you hours of time consuming paperwork!
- Measures air velocity, temperature, relative humidity, wet bulb / dewpoint, and calculate volume flow
- Kit includes instruments to measure, balance, troubleshoot, and optimize ventilation systems performance
- RH & air flow measurements in-duct and at registers viewed simultaneously in the testo Smart Probes App (605i, 405i, 410i)
- App calculates system enthalpy with air flow & RH probes
- Photograph objects with smart device, capturing measurement marker and temperature values for reference and reporting (805i)
- Measurement data is transmitted to the convenient and powerful testo Smart Probes App in your smart device
- Tough, accurate, and easy-to-use
- For all HVAC/R technicians and contractors

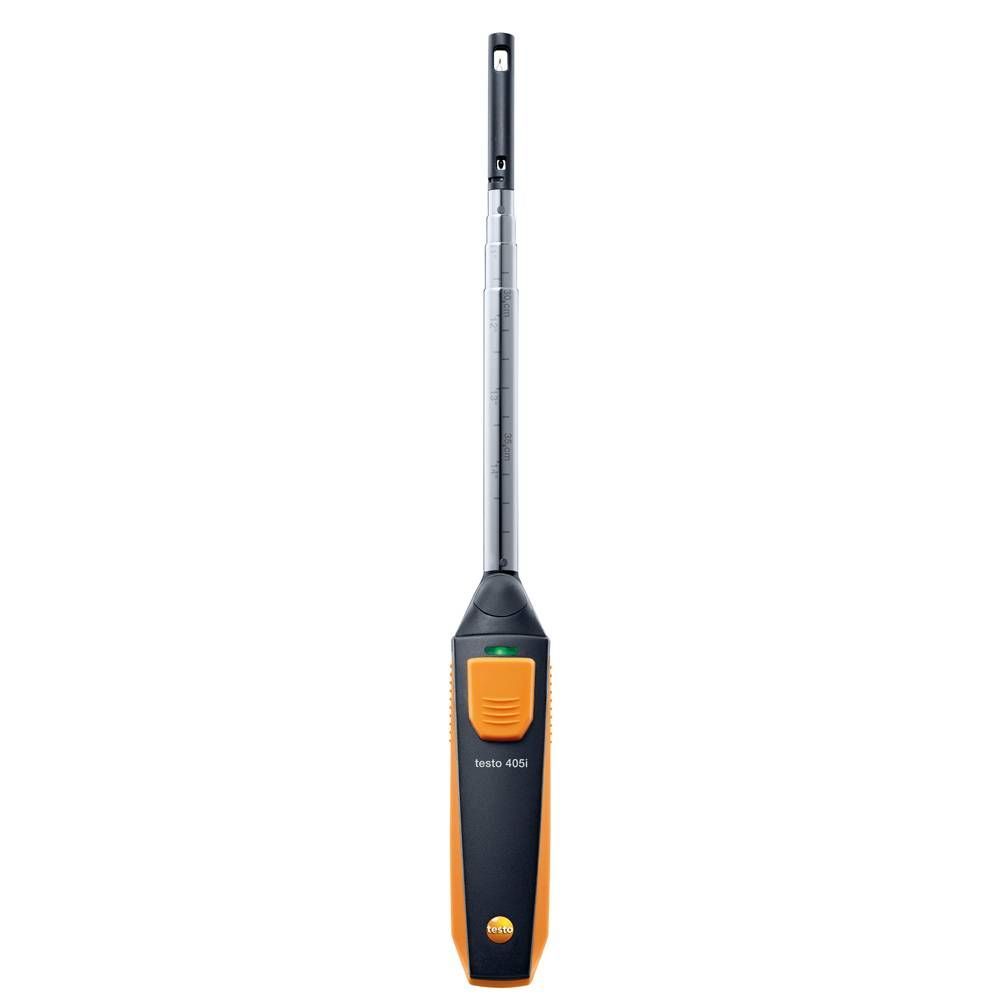

testo 405i |
testo 410i |

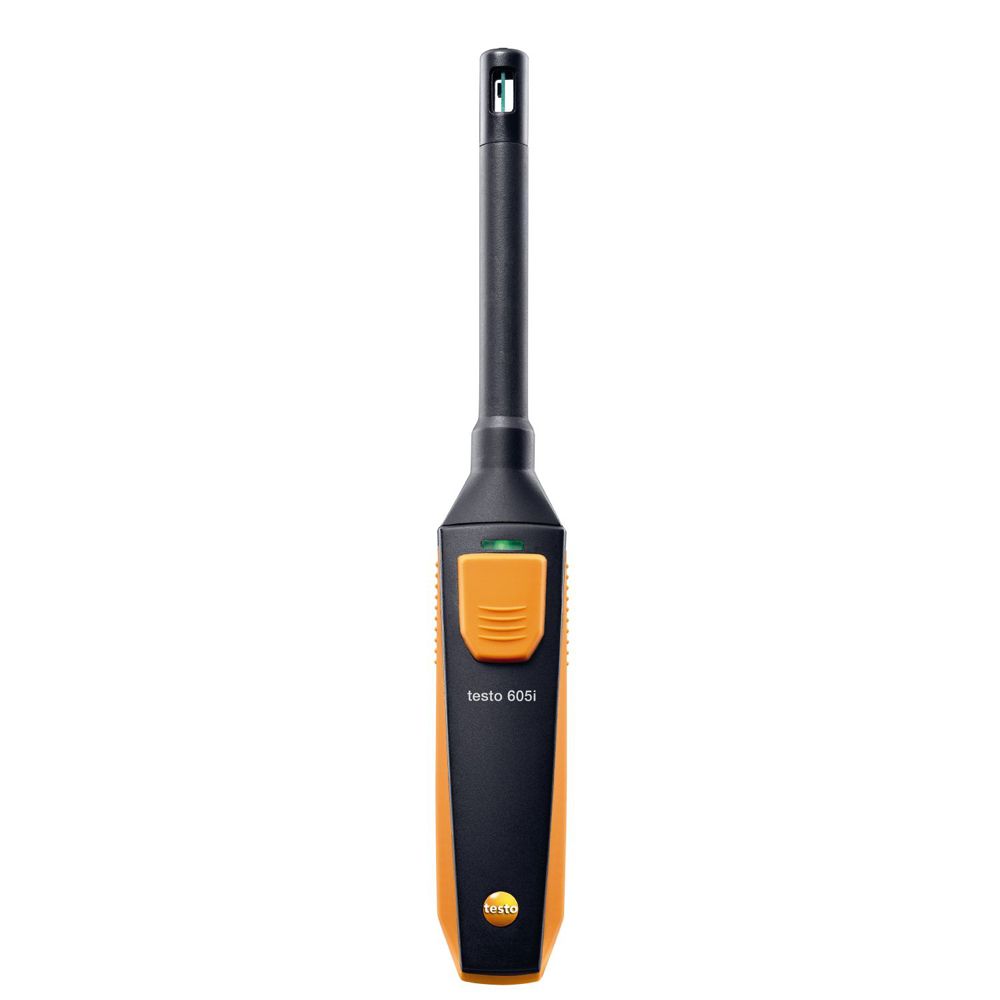

testo 605i |
testo 805i |
||||
Sensor type | Hot wire |
NTC |
Vane |
NTC |
Humidity – capacitive |
NTC |
Infrared |
Measuring range | 0 to 6,000 fpm |
-4 to 140 °F |
0 to 6,000 fpm |
-4 to 140 °F |
0 to 100 %RH |
-4 to 140 °F |
-22 to 482 °F |
Accuracy | ±(9.9 fpm + 2.5 % of m.v.) 0 to 400 fpm) ±(29.5 fpm + 2.5 % of m.v.) (400 to 3000 fpm) |
±0.5 °F |
±(40 fpm + 2 % of m.v.) (78 to 6,000 fpm) |
±0.9 °F |
±(1.8% RH + 3% of m.v.) at 77 °F (5 to 80% RH) |
±1.4 °F (-4 to 32 °F) ±0.9 °F (32 to 140 °F) |
±2.7 °F or ±1.5 % of reading (32 to 482 °F) ±3.6 °F (-4 to 32 °F) ±4.5 °F (-22 to -4 °F) |
Resolution | 2 fpm |
0.1 °F |
19.7 fpm |
0.1 °F |
0.1% RH |
0.1 °F |
0.1 °F |
Volume Flow | 0 to 99,999 cfm (Resolution: 0.1 cfm) |
- |
0 to 99,999 cfm (Resolution: 0.1 cfm) |
- |
- |
- |
- |
Compatibility | requires iOS 8.3 (or later) / Android 4.3 (or later) requires mobile device with Bluetooth 4.0 |
||||||
Storage temperature | -4 to 140 °F |
||||||
Operating temperature | -4 to 122 °F |
-14 to 122 °F |
|||||
Battery type | 3 AAA batteries |
||||||
Battery life | 15 hrs |
200 hrs |
250 hrs |
30 hrs |
|||
Dimensions | 7.9 x 1.2 x 1.6 in. Telescope extendable to 15.7 in. |
6.1 x 1.7 x 0.8 in 1.6 in vane diameter |
9.6 x 1.2 x 0.9 in 3.4 in probe shaft |
5.5 x 1.4 x 1.0 in |
|||
Optics | - |
10:1 |
|||||
Laser marking | Diffractive optics (laser circle) |
||||||
Emissivity | 0.1 to 1.0 adjustable |
||||||
Warranty | 2 years |
||||||
Measuring Units | °F, °C, fpm, m/s, cfm, m3/h, l/s |
°F, °C, fpm, m/s, cfm, m3/h, l/s |
°F, °C, %rF / %RH, °Ftd, °Ctd, wetbulb °F, wetbulb °C | °F, °C |
