Testo 435-3 Multifunction Meter with integral differential pressure - 0560 4353
Item #:
0560-4353
Brand:
Testo
Share this product:

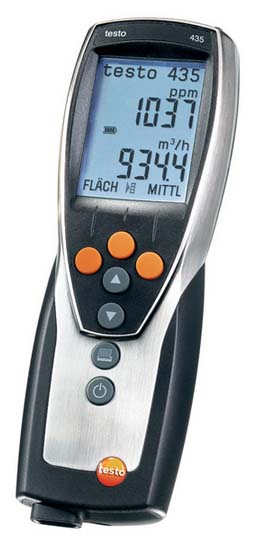

0560 4353 435-3 Multifunction Meter with integral differential pressure by Testo
The ambient air conditions measuring instrument for your introduction to professional ambient air measurement engineering. It has the right measurement engineering, e.g. thermal probes, vane or Pitot tube measurement, for every application and flow speed. The new IAQ probe measures Indoor Air Quality by measuring the CO2 level, air moisture and air temperature. Temperature and humidity measurement is built-in in the new thermal probe. In addition, it is also possible to connect additional temperature probes to, for example, accurately measure surface temperature. Readings from up to 3 temperature probes can be displayed in the clearly laid-out measuring instrument display; data transmission is by radio, i.e. wireless. Measurement data is printed on site on the Testo printer.
- IAQ probe for assessing Indoor Air Quality
- Thermal probes, vane measurement and built-in differential pressure probe for Pitot tube measurement
- Radio probe for temperature
- Testo printer for documentation purposes
- Protection class IP54
| Storage temperature | -30 to +70 °C |
| Operating temperature | -20 to +50 °C |
| Battery type | Alkali manganese, mignon, Type AA |
| Battery life | 200 h (typical vane measurement) |
| Weight | 450 g |
| Dimensions | 225 x 74 x 46 mm |
| Material/Housing | ABS/TPE/Metal |
| Probe type Typ T (Cu-CuNi) | Meas. Range: -200 to +400 °C Accuracy: ±0.3 °C (-60 to +60 °C); ±0.3% of mv (remaining range) Resolution: 0.1 °C |
| Probe type NTC | Meas. Range: -50 to +150 °C Accuracy: ±0.2 °C (-25 to +74.9 °C); ±0.4 °C (-50 to -25.1 °C); ±0.4 °C (+75 to +99.9 °C); ±0.5% of mv (remaining range) Resolution: 0.1 °C |
| Probe type Type K | Meas. Range: -200 to +1370 °C Accuracy: ±0.3 °C (-60 to +60 °C); ±(0.2 °C +0.3% of mv) (remaining range) Resolution: 0.1 °C |
| Probe type CO2 | Meas. Range: 0 to +10000 ppm CO2 Resolution: 1 ppm CO2 |
| Probe type Differential pressure | Meas. Range: 0 to +25 hPa Accuracy: ±0.02 hPa (0 to +2 hPa); 1% of mv (remaining range) Resolution: 0.01 hPa |
| Probe type Absolute pressure probe | Meas. Range: 0 to+2000 hPa Resolution: 0.1 hPa |
| Probe type humid. sensor, cap. | Meas. Range: 0 to +100 %RH Resolution: 0.1 %RH |
| Probe type Hot Wire | Meas. Range: 0 to +20 m/s Resolution: 0.01 m/s |
| Probe type Vane | Meas. Range: 0 to +60 m/s Resolution: 0.01 m/s (60 vane); 0.1 m/s (16 vane) |
