Testo 510 Pocket Pro Pressure Meter with Air Velocity - 0560 0510
Item #:
0560-0510
Brand:
Testo
Share this product:

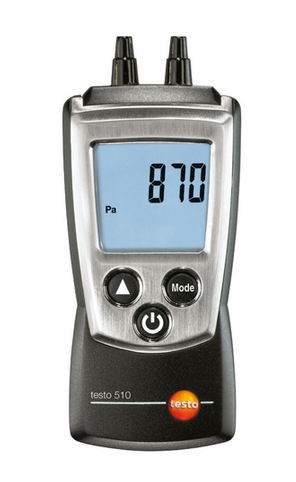

0560 0510 510 Pocket Pro Pressure Meter with Air Velocity by Testo

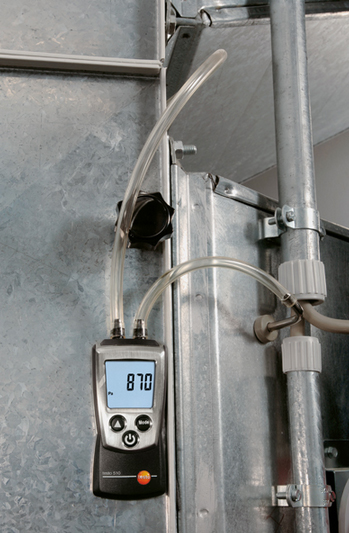

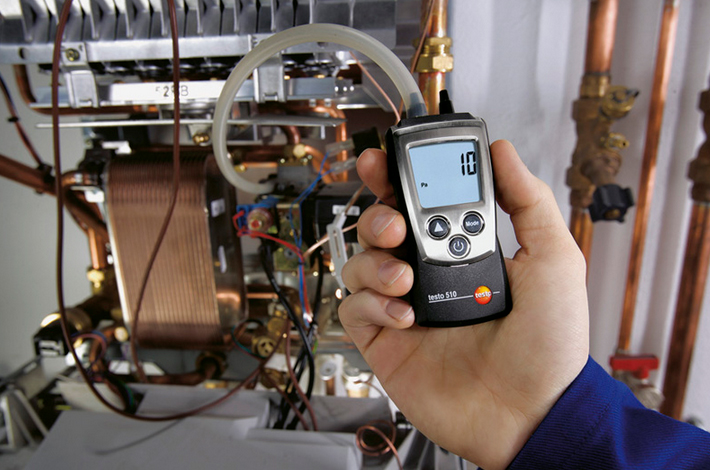

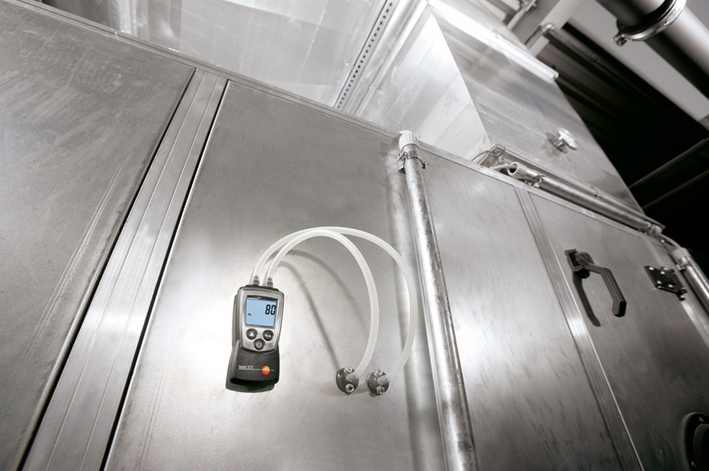

The differential pressure meter is ideally suitable for pressure measurements in the range 0 to 100 hPa. testo 510's differential pressure measurement is temperature-compensated for accurate readings. Readings can be displayed in Pascal over the whole measurement range. Magnets at the back of the instrument enable hands-free operation, for instance, while adjusting gas heaters.
- Display in Pascal possible over entire measurement range
- Accuracy: ±0.03 hPa (0 to 0.30 hPa) / ±0.05 hPa (0.31 to 1.00 hPa)
- Temperature compensation
- Magnetic rear permits free-hand work
- Flow velocity measurement with Pitot tube (Pitot tube not included in delivery)
- Air density compensation
- Protective cap for safe storage
- Including wrist strap and belt holder
- Backlit display
- Switchable units: hPa, mbar, Pa mmH2O, mmHg, inH2O, inHg, psi, m/s, fpm
| Meas. range | 0 to 100 hPa | ||||
| Accuracy ±1 digit | ±0.03 hPa (0 to 0.30 hPa) ±0.05 hPa (0.31 to 1.00 hPa) ±(0.1 hPa + 1.5 %of mv) (1.01 to 100 hPa) |
||||
| Resolution | 0.01 hPa | ||||
| Positive pressure | 500 mbar | ||||
| max. static pressure | 1.5 bar | ||||
| Oper. temp. | 0 to +50 °C | ||||
| Storage temp. | -40 to +70 °C | ||||
| Selectable units | hPa, mbar, Pa, mmH2O, inH2O, inHg, mmHg, psi, m/s, fpm | ||||
| Protection class | IP40 | ||||
| Battery type | 2 batteries Type AAA | ||||
| Battery life | 50 h (average, without display illumination) | ||||
| Measurement rate | 0.5 s | ||||
| Dimensions | 119 x 46 x 25 mm | ||||
| Weight | 90 g (with batteries and protective cap) | ||||
| Warranty | 2 years | ||||
