Testo 400 Universal Airflow / IAQ Instrument - 0560 0400
Item #:
0560-0400
Brand:
Testo
Share this product:

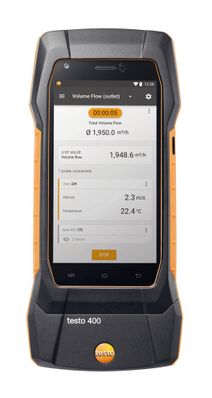

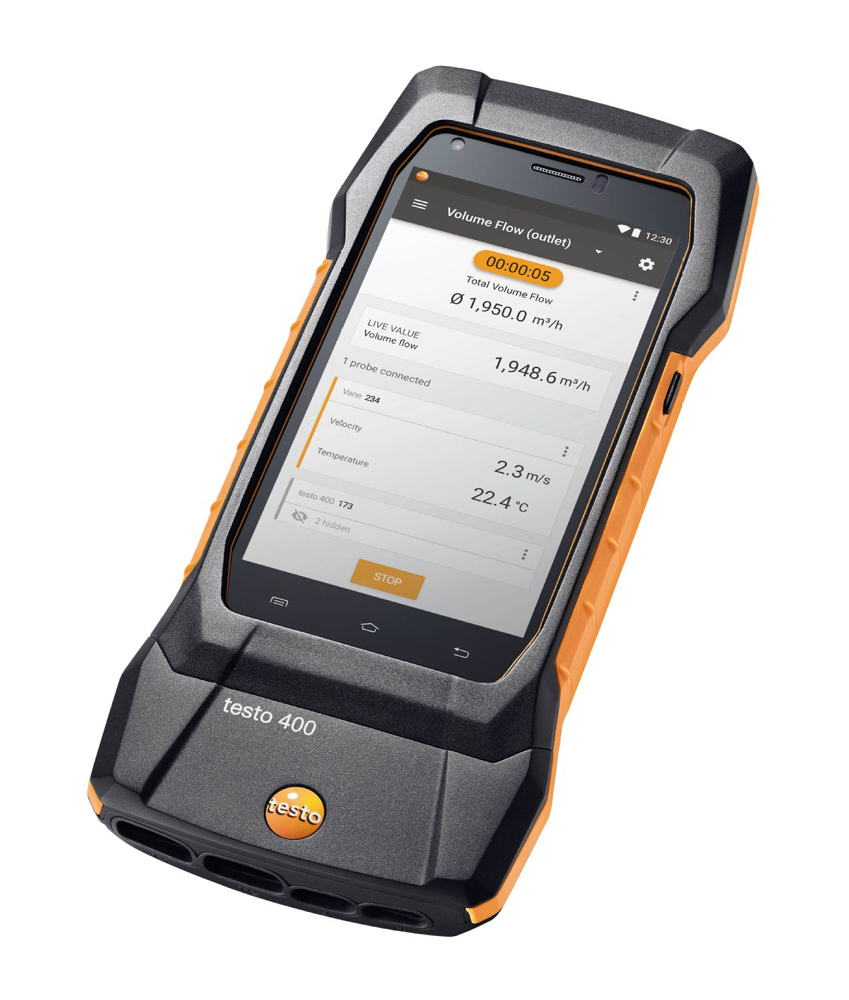

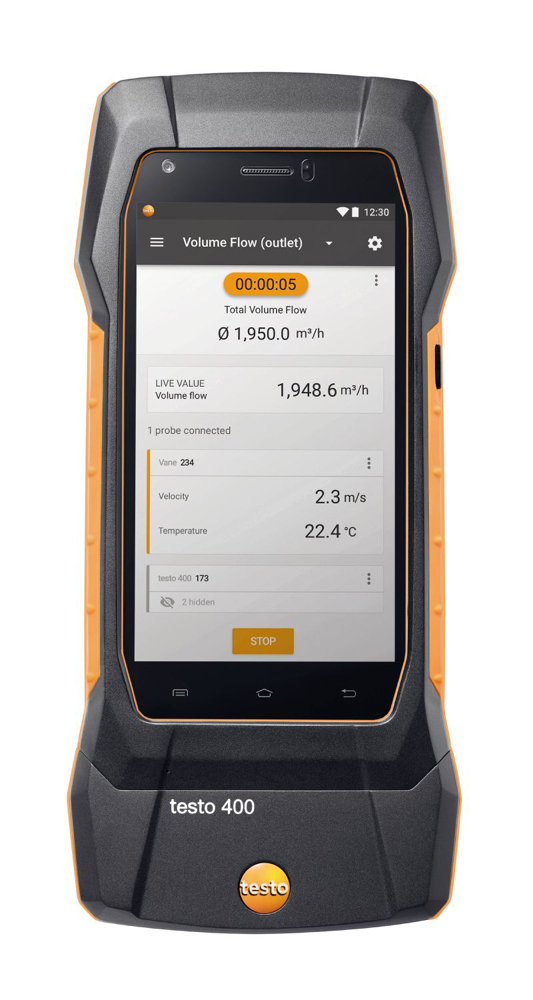

0560 0400 400 Universal Airflow / IAQ Instrument by Testo
testo 400 is the universal measuring instrument for all IAQ professionals, enabling them to measure, document and analyze all IAQ parameters with just one instrument. Your benefits:
- Smart support through stored measurement menus and evaluation of measuring values according to the traffic light principle for error-free measurements
- Manage all the relevant customer data, including measuring points, directly in the instrument - work directly and efficiently on site
- Complete and send measuring values with full documentation, including photos, comments and your own logo directly on site get to the next job faster
- Probe heads can be changed without restarting the instrument easy handling with no lost time
- Calibration of probes which is independent of the measuring instrument and adjustment function at up to six measuring points for zero-error display fewer downtimes and high-precision measurements
As consultants, experts, technical service providers or service technicians in the air conditioning and ventilation sector, the testo 400 therefore supports you in the truly smart performance of your measuring tasks. Relevant quality parameters in industrial production and manufacturing processes can also be reliably and accurately checked using the testo 400.
- Measures all IAQ-related parameters: Flow, temperature, humidity, pressure, illuminance, radiant heat, turbulence, CO2 and CO

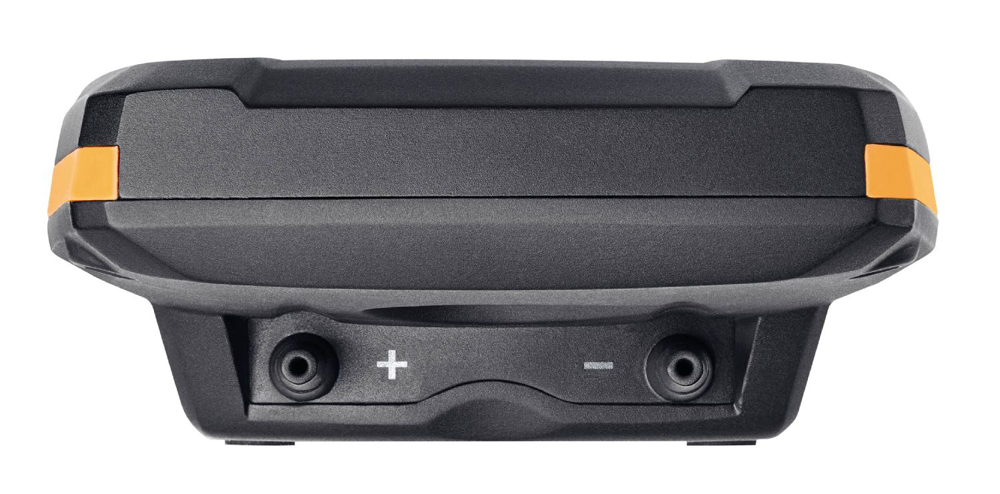

- High-precision, location-independent and integrated differential pressure sensor
- High-quality digital probes and an intelligent calibration concept
- Document measuring values directly on the customer's site and send them by e-mail, or further analyze them using the testo DataControl PC software
Differential pressure (integrated) | |
Measuring range | -100 to +200 hPa |
Accuracy (±1 digit) | ±(0.3 Pa ± 1% of m.v.) (0 to 25 hPa) ±(0.1 hPa + 1.5% of m.v.) (25.001 to 200 hPa) |
Resolution | 0.001 hPa |
Absolute pressure (integrated) | |
Measuring range | 700 to +1100 hPa |
Accuracy (±1 digit) | ±3 hPa |
Resolution | 0.1 hPa |
Temperature NTC (with appropriate probe) | |
Measuring range | -40 to +150 °C |
Accuracy (±1 digit) | ±0.2 °C (-25 to 74.9 °C) ±0.4 °C (-40 to -25.1 °C) ±0.4 °C (+75 to +99.9 °C) ±0.5% of m.v. (remaining meas. range) |
Resolution | 0.1 °C |
Temperature TC type K (with appropriate probe) | |
Measuring range | -200 to +1370 °C |
Accuracy (±1 digit) | ±(0.3 °C + 0.1% of m.v.) |
Resolution | 0.1 °C |
General technical data | |
Probe connections | 4x Bluetooth®, 2x TUC*, 2x TC type K |
Interfaces | Bluetooth®, WLAN, USB |
Operating temperature | -5 to +45 °C |
Storage temperature | -20 to +60 °C |
Power supply | Rechargeable li-ion battery (5550 mAh) |
Battery life | approx. 10 hrs continuous operation |
Display | 5.0 inch HD touch display 1280 x 720 px resolution |
Camera | Main camera: 8.0 MP Front camera: 5.0 MP |
Memory | 2 GB (corresponds to approx. 1,000,000 readings) |
Protection class | IP40 |
Dimensions | 210 x 95 x 39mm |
Weight | 510 g |
